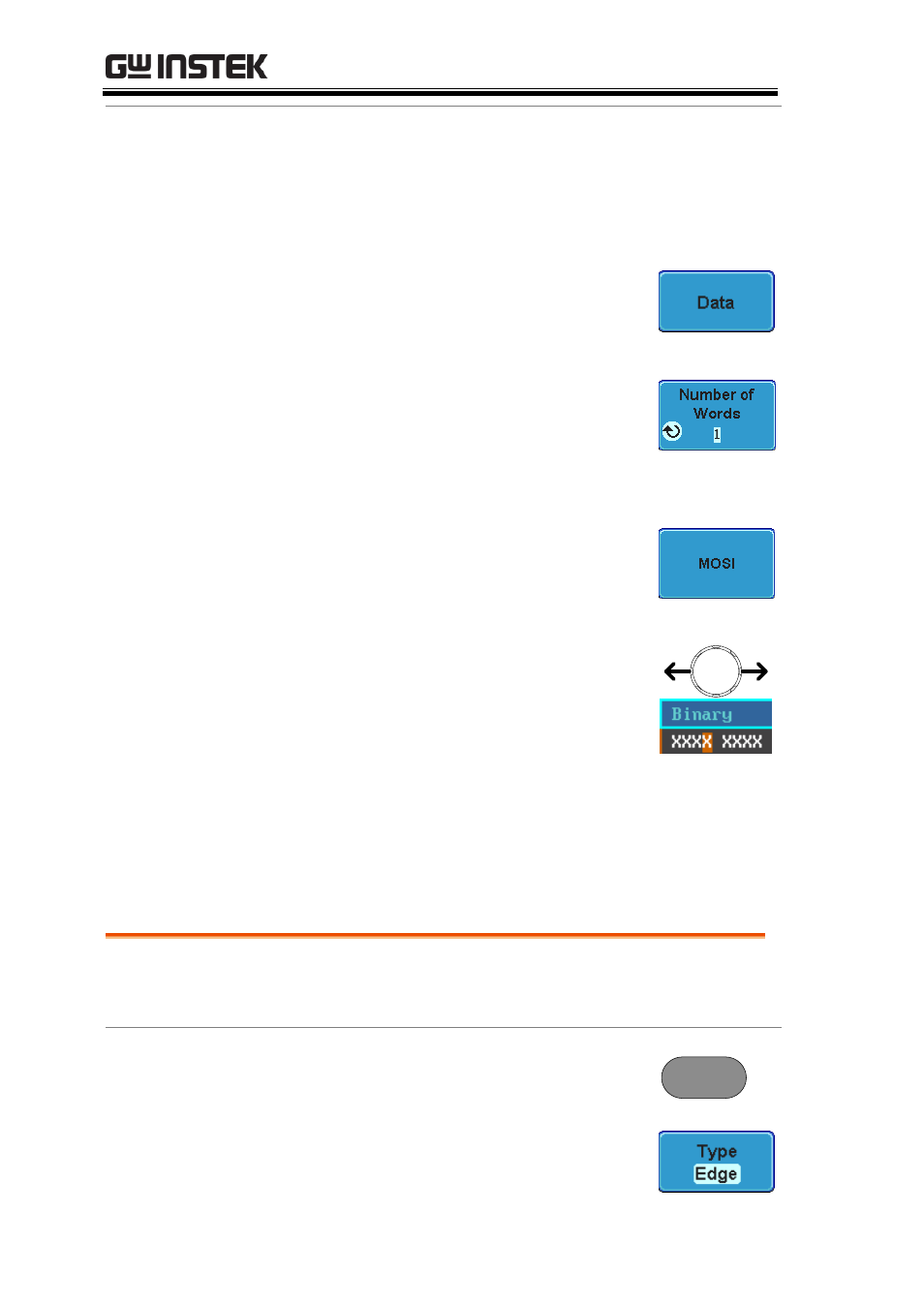

background image

GDS-2000A Series Options Manual

74

Trigger On – Data

If MOSI, MISO or MISO/MOSI was
configured for the Trigger On setting, then the
number of words and the data can be
configured.

6. Press Data from the bottom menu.

7. Press Number of Words from the

side menu and choose the number
of words for the data.

SPI

1~32 Words

8. Press MOSI or MISO from the side

menu to edit the triggering data.

To edit the data, use the Variable
knob to highlight a binary or hex
digit and press Select. Use the
Variable knob to choose a value for
the digit and press Select to
confirm.

VARIABLE

Binary

0,1,X (don’t care)

Hex

0~F, X (don’t care)

Parallel Bus Trigger

Background

The parallel bus can be set up to trigger on a
specified data pattern.

Panel Operation

1. Press the Trigger Menu key.

Menu

2. Press Type from the bottom menu.
