LOGIC ANALYZER
71

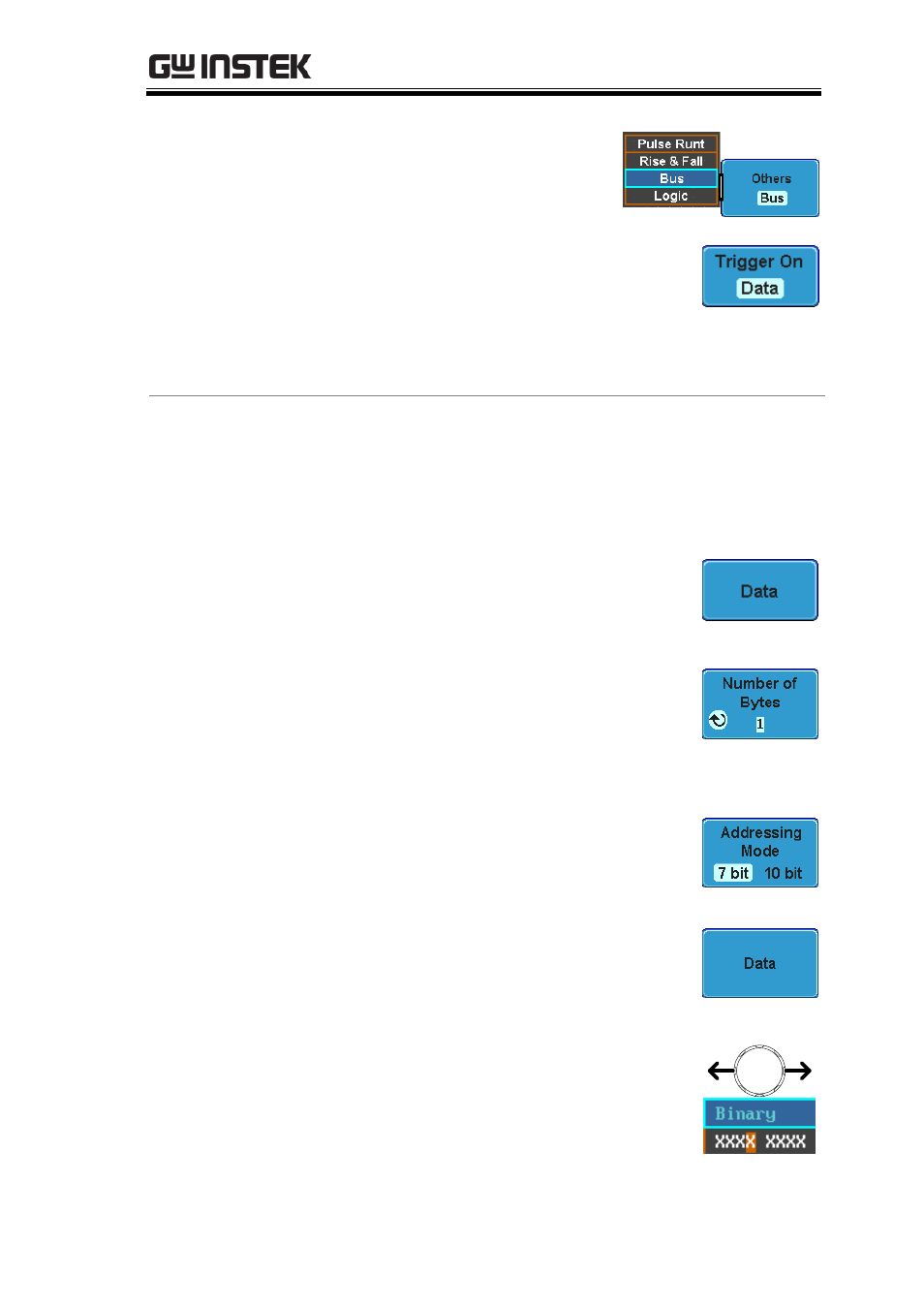

4. Press Others from the side
menu and select Bus.
5. Press Trigger On and select the
triggering condition for the
selected bus.
Trigger On Start, Repeat Start, Stop, Missing
Ack, Address, Data, Address/Data
Trigger On – Data If Data or Address/Data was configured for
the Trigger On setting, then the number of
bytes, data and addressing mode (I
2 C) can be
configured.
6. Press Data from the bottom menu.
7. Press Number of Bytes from the side
menu and choose the number of
bytes for the data.
I 2 C 1~5 Bytes
8. Press Addressing Mode to toggle
between 7 and 10 bit addressing
modes.
9. Press Data from the side menu to
edit the triggering data.
To edit the data, use the Variable
knob to highlight a binary or hex
digit and press Select. Use the
Variable knob to choose a value for
the digit and press Select to
confirm.
VARIABLE
