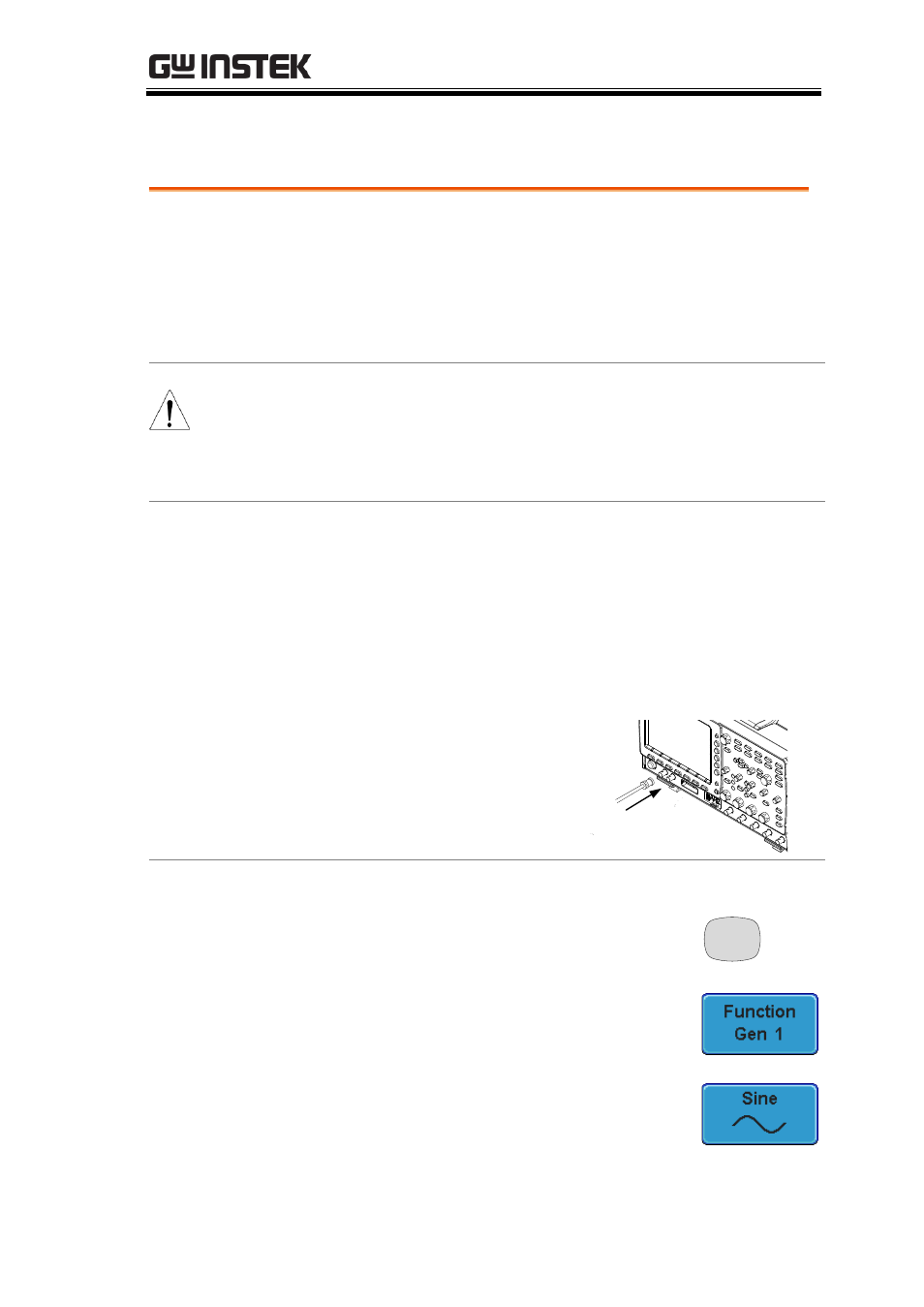

FUNCTION GENERATOR

21

Using the Function Generator Option

Background

This section will describe how to use the function
generator modules. To use the function generator
option, the DS2-FGN function generator module
must be installed. Please see page 6 for installation
details.

Note

The GDS-2000A can have two function generator
modules installed at the same time. Operating the
CDS-2000A using one or two function generator
modules is the same.

Connection

1. The function generator signal is output from

the GEN 1 or GEN 2 outputs on the front panel.
If the function generator module is installed in
slot one, then the signal is output from GEN 1,
and if the function generator is installed in slot
two, then the signal is output from GEN 2.

2. Connect a BNC cable

to the appropriate
output (GEN 1 or
GEN 2).

Panel Operation

1. Press the Option key.

Option

2. Press Function Gen 1 or Function

Gen 2 from the bottom menu.

3. Select Sine, Square or Triangle from

the bottom menu.
