GDS-2000A Series Options Manual
50

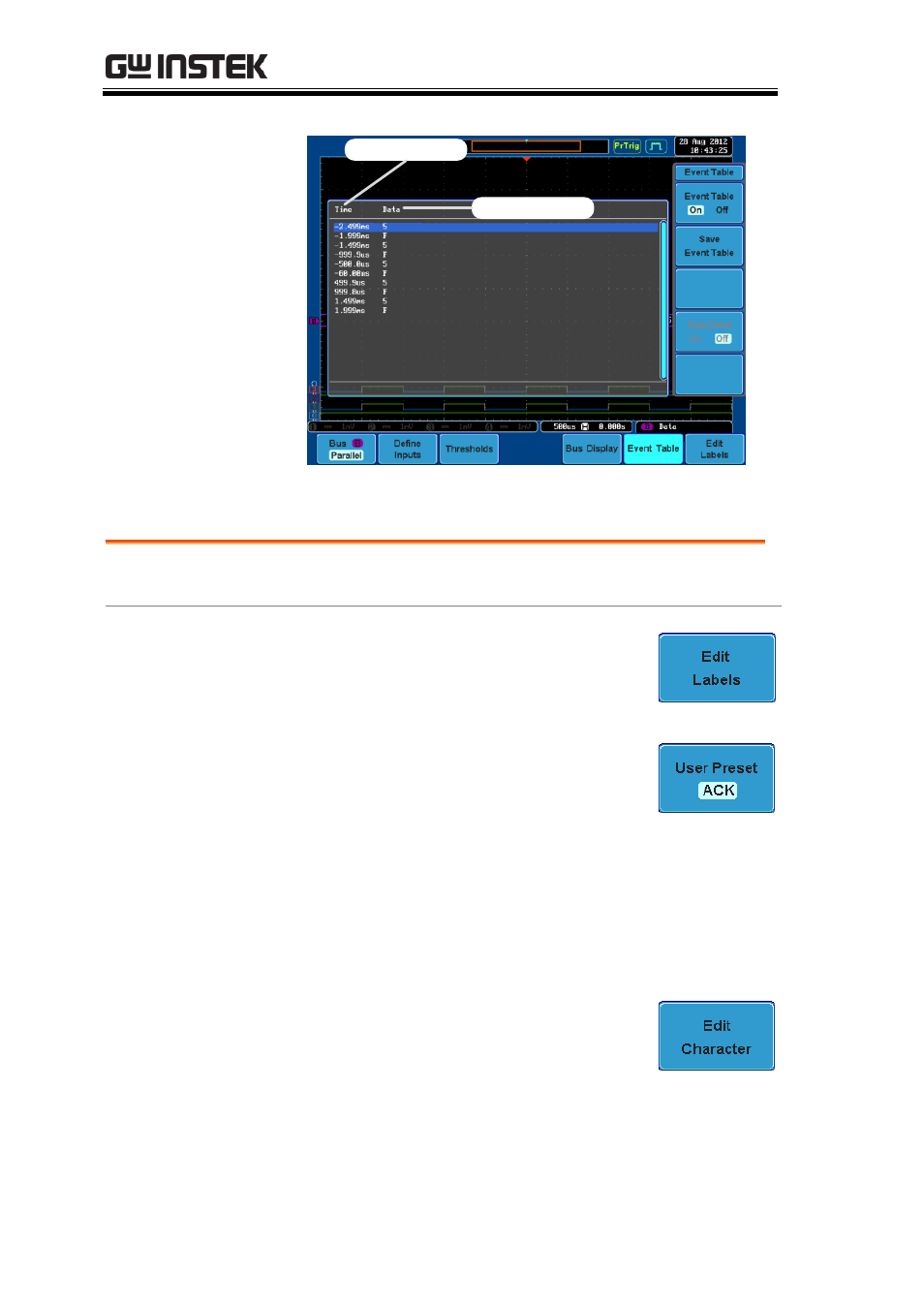

Example
Time of event
Event data
Adding a Label to the Parallel Bus
Background A label can be added to the parallel bus.
Panel Operation 1. To add a label to the bus, press
Edit Labels from the Parallel Bus
menu.
2. To choose a preset label, Press User
Preset from the side menu and
choose a label.
Labels ACK, AD0, ADDR, ANALOG,
BIT, CAS, CLK, CLOCK, CLR,
COUNT, DATA, DTACK,
ENABLE, HALT, INT, IN, IRQ,
LATCH, LOAD, NMI
Edit Label 3. Press Edit Character to edit the
current label.
