Binary 0,1,X (don’t care)
Hex 0~F, X (don’t care)
Trigger On -
Address If Address or Address/Data was configured
for the Trigger On setting, then the triggering
address must be configured.

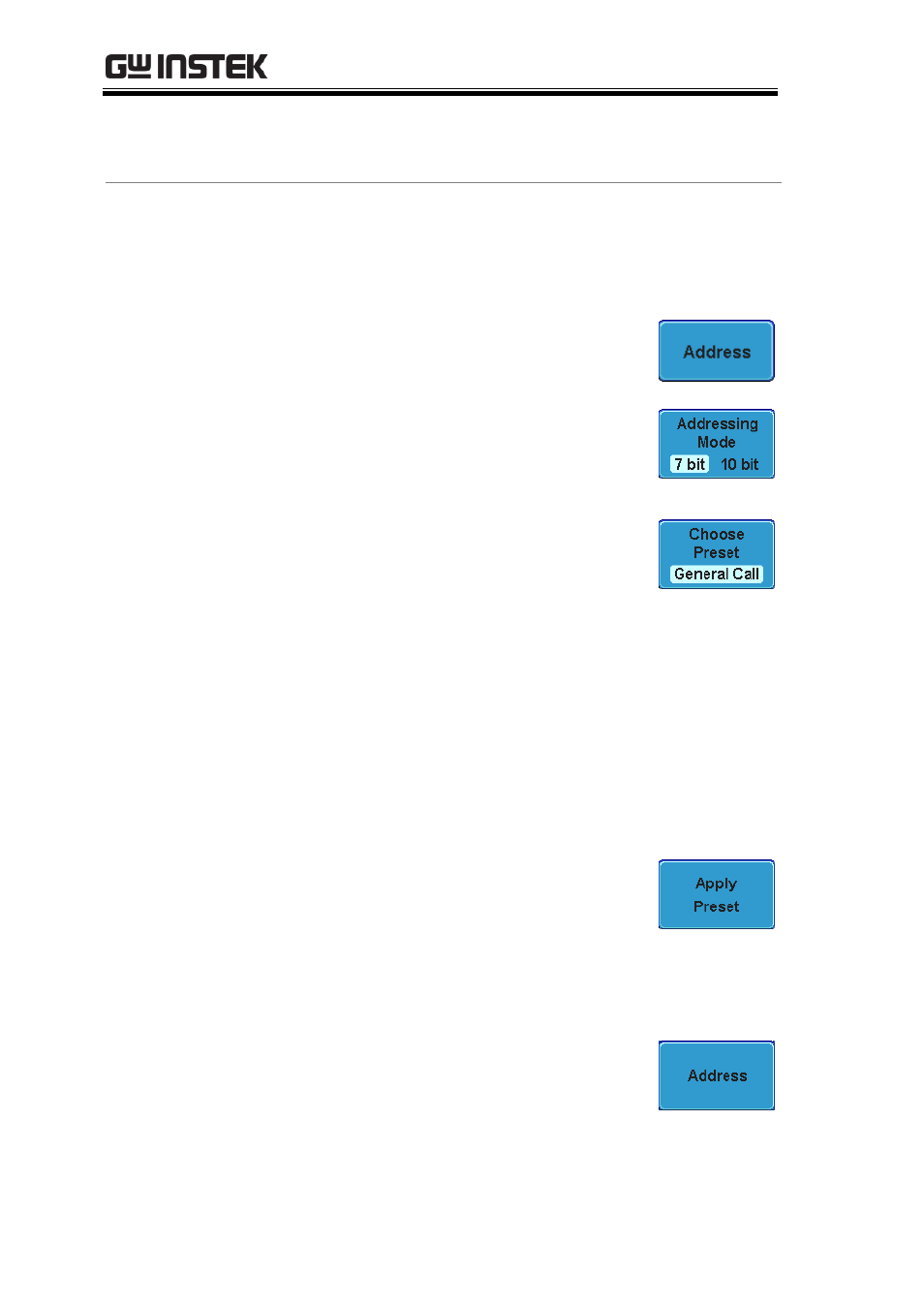

10. Press Address on the bottom menu.
11. Press Addressing Mode to toggle
between 7 and 10 bit addressing
modes.
12. To choose a preset address as the
default address, press Choose Preset
and select a preset address.
Address Description
0000 000 0 General Call
0000 000 1 START Byte
0000 1XX X Hs-mode
1010 XXX X EEPROM
0000 001 X CBUS
Press Apply Preset to set the default
address to the preset.
Note  Presets are not available for Trigger On
Address/Data.
13. Press Address from the side menu
to manually edit the triggering
address.
To edit the address, use the
