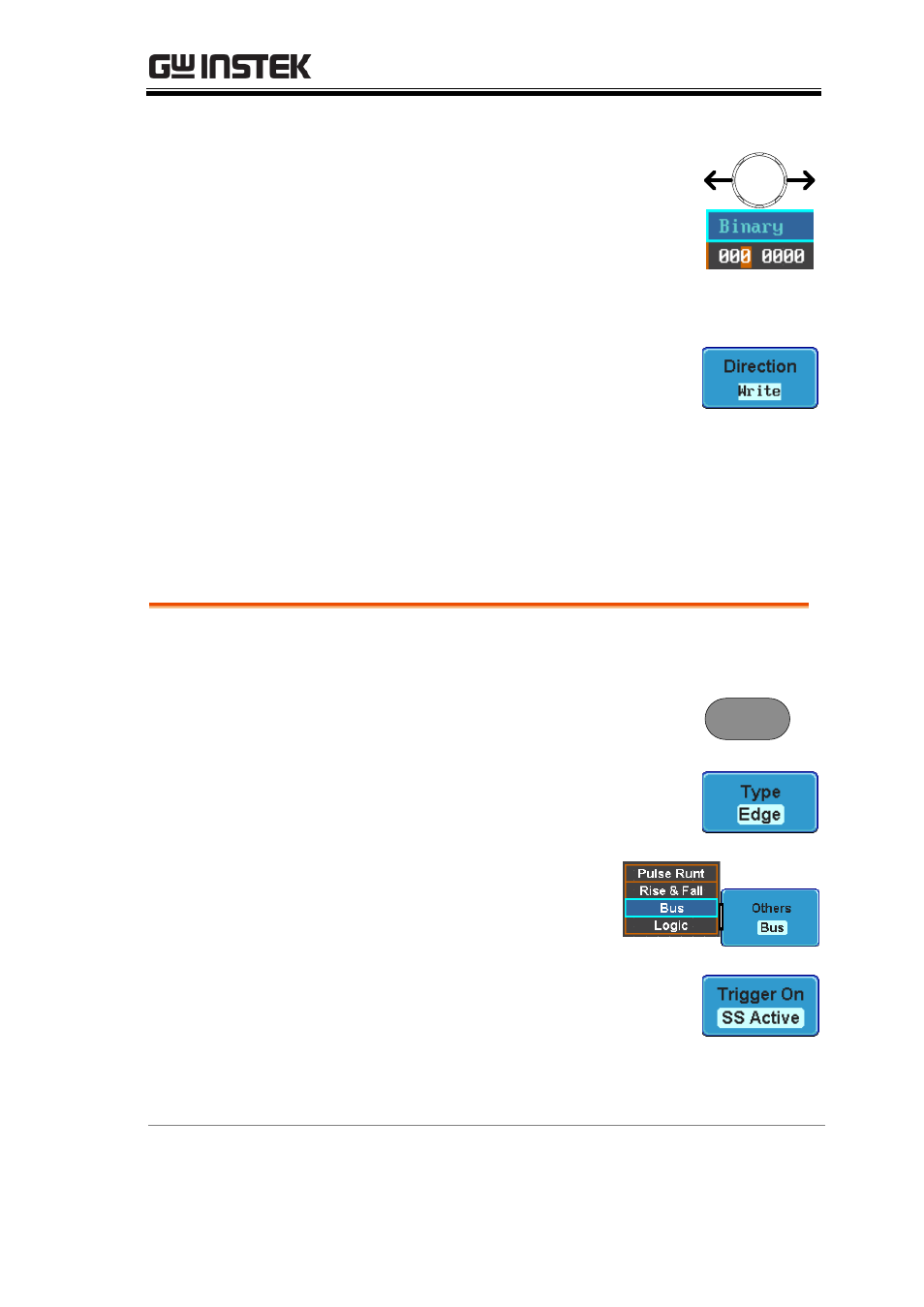

background image

LOGIC ANALYZER

73

Variable knob to highlight a binary
or hex digit and press Select. Use
the Variable knob to choose a value
for the digit and press Select to
confirm.

VARIABLE

Binary

0,1, X (don’t care)

Hex

0~F, X (don’t care)

Direction

14. Press Direction on the bottom menu

and choose the direction from the
side menu.

Direction

Write, Read, Read or Write

SPI Bus Trigger Settings

The SPI bus trigger conditions can be set at any time after the bus
setting has been set to SPI.

Panel Operation

1. Set the Bus to SPI in the bus menu. Page 57

2. Press the Trigger Menu key.

Menu

3. Press Type from the bottom menu.

4. Press Others from the side

menu and select Bus.

5. Press Trigger On and select the

triggering condition for the SPI
bus.

SPI

SS Active, MOSI, MISO,
MOSI&MISO
