LOGIC ANALYZER
61
Serial Bus Event Tables
Background The serial bus event tables list when each data
event on the bus occurred. The data is displayed as
either hex or binary, depending on the bus display
settings.
Event tables can be saved to disk in a CSV format.
The files will be named “Event_TableXXXX.CSV”,
where XXXX is a number from 0000 to 9999. See
page 64 for details.

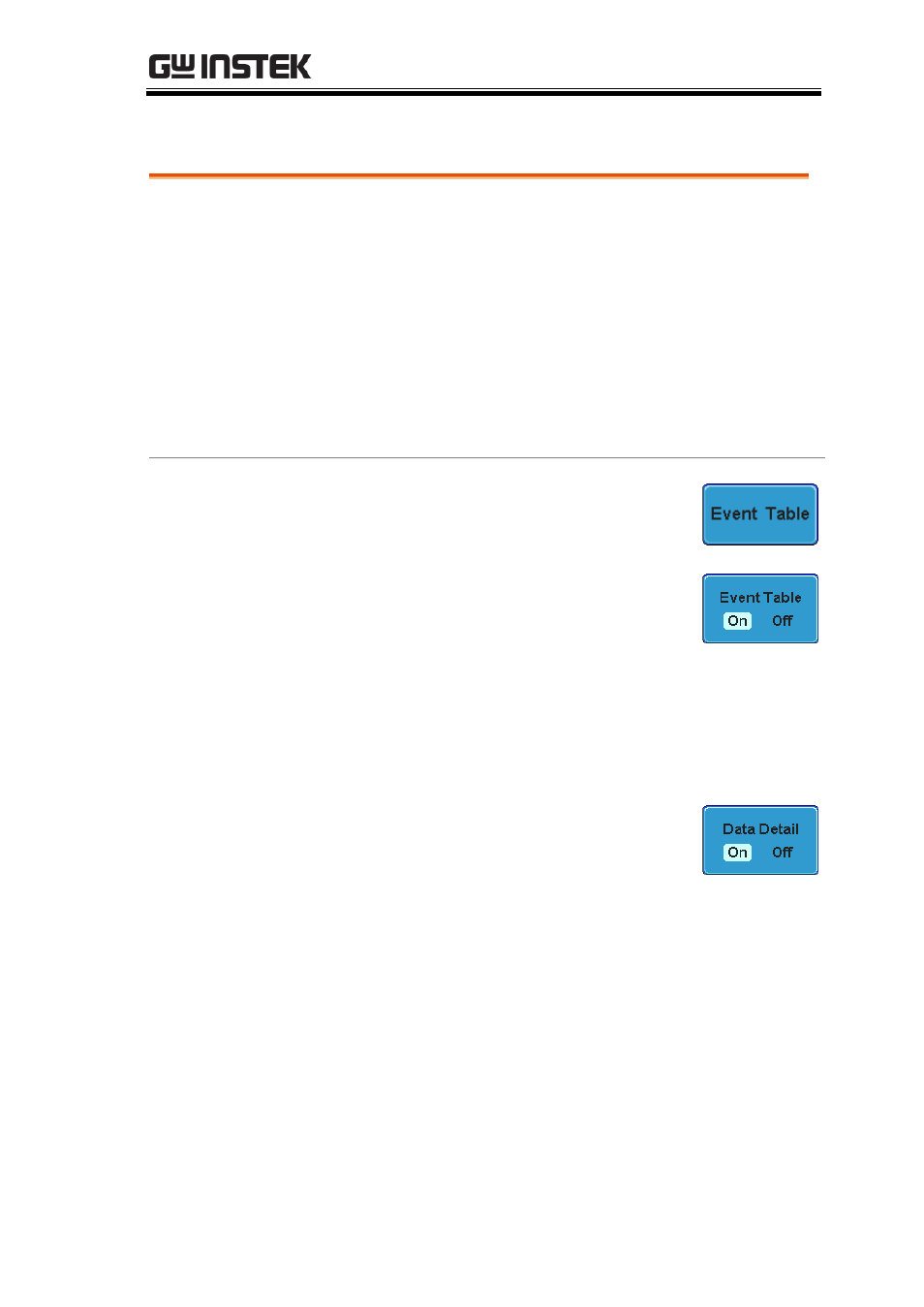

Operation 1. Press Event Table from the bottom
menu.
2. Press Event Table from the side
menu to turn the event table on or
off.
Event On, Off
Use the Variable knob to scroll through the
event table.
Data Detail
(I
2 C only)
3. To view the data at a particular
address in more detail, turn Data
Detail On. This is only available for
the I
2 C bus.
Detail On, Off
Use the Variable knob to scroll through the
Data Detail event table.
