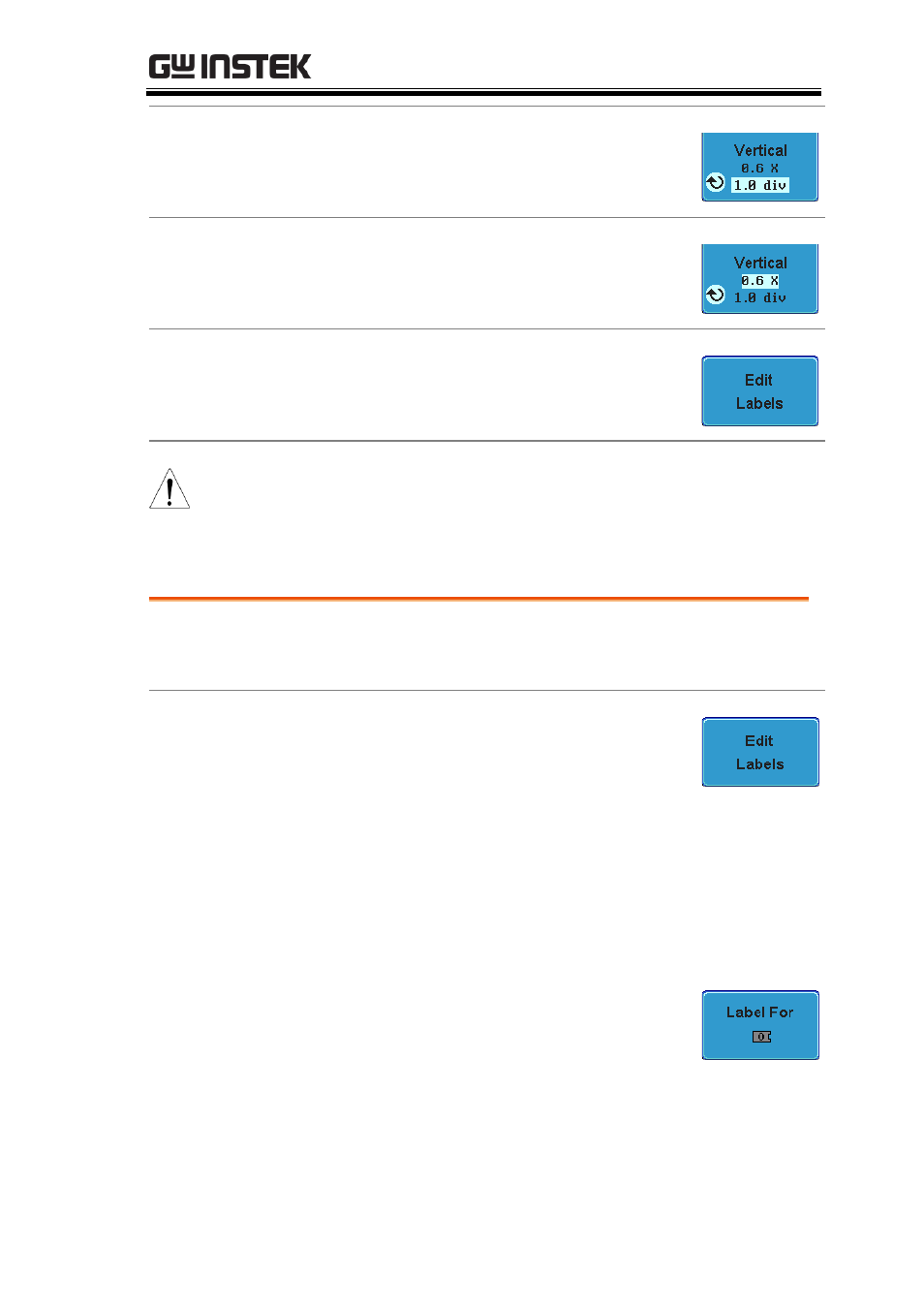

background image

LOGIC ANALYZER

41

Set Vertical
Position

5. Press Vertical until div parameter is

highlighted. Use the Variable knob
to set the position.

Set Vertical Scale

6. Press Vertical until X scale

parameter is highlighted. Use the
Variable knob to set the scale.

Edit Labels

7. Press Edit Labels to edit the label

for the currently selected analog
waveform. See page 41 for details.

Note

Only one analog waveform can be displayed at a time.

Adding Labels to Digital Channels

Background

Digital labels can be added to each digital channel
or to one of the analog waveforms.

Panel Operation

1. To edit labels for the digital

channels, press the Edit Labels soft-
key from the D15~D0 On/Off
menu.

To edit labels for the analog
waveforms, press the Edit Labels
soft-key from the Analog Waveform
menu.

2. Press Label For and select a channel

or waveform.

Label For

D0~D15
A1, A2
