Digital display overview – GW Instek GDS-2000A series Option User Manual User Manual
Page 30
GDS-2000A Series Options Manual
30

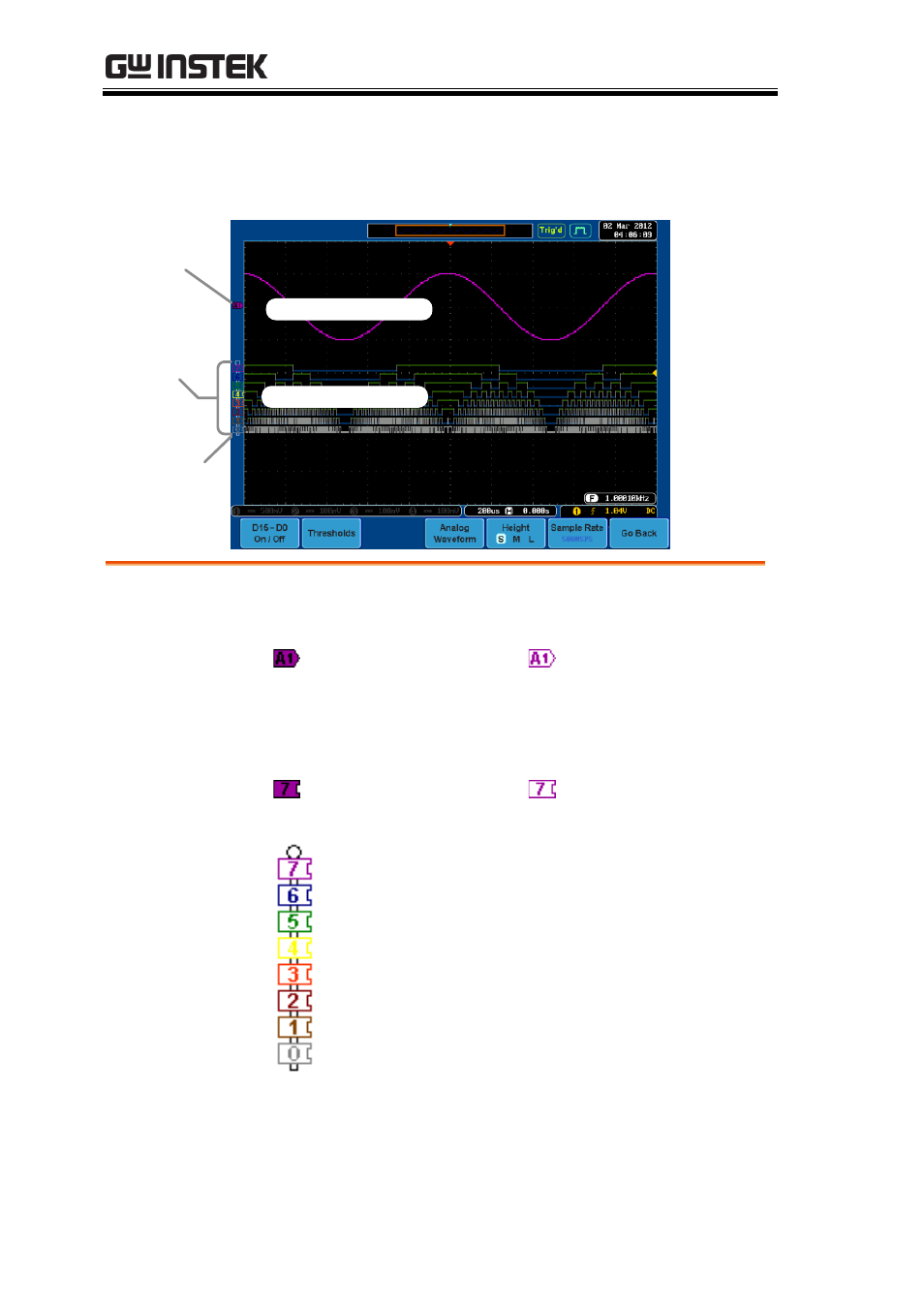

Digital Display Overview
Analog
waveform
indicator
Digital
channel
indicators
Digital waveforms
Analog waveform
Digital
channel
group
Analog Waveform
Indicator
Used to show the position of the analog waveform
outputs.
Active analog
waveform
Activated analog
waveform
Digital Channel
Indicators
Used to show the position and grouping of the
digital channels.
Active digital channel
Activated digital
channel
Digital Channel
Group
When digital channels are grouped together,
they are shown as being pinned together.
When grouped, digital channels can moved
as a single group.
