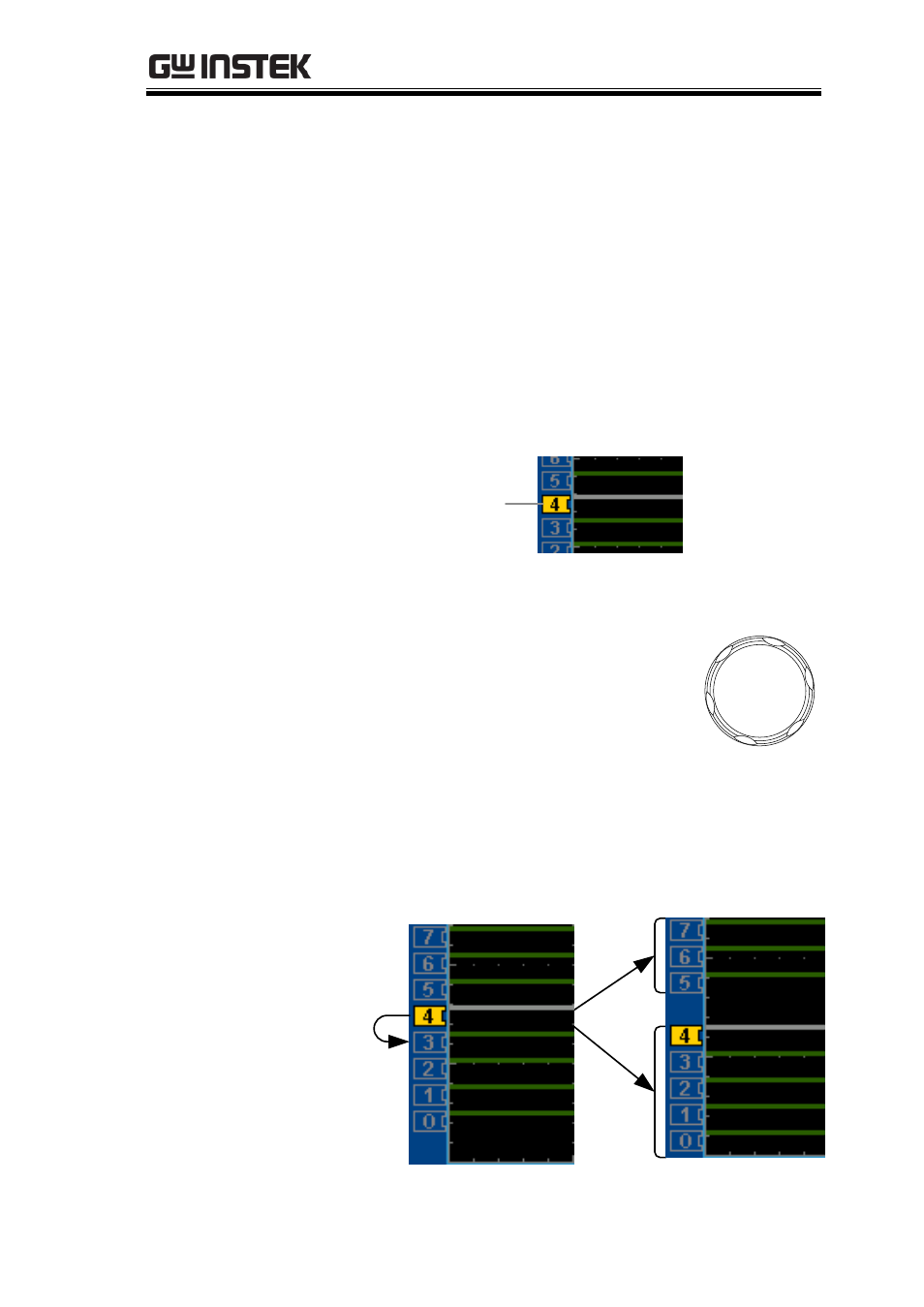

background image

LOGIC ANALYZER

35

The Move mode is used to move the digital
channel position on the graticule as well as to
group the channels. If you turned on all the
digital channels, you will notice that they are
already grouped as a single group.

You can tell when it is in move mode as the
selected channel/group flashes and the labels
for the other channels/groups become grayed
out.

Channel 4 is in the

'Move' mode and

the labels for the

other channels are

grayed out

4. Use the variable knob to position

the selected channel/group:

VARIABLE

If you position the channel indicator over the
next/previous channel, it will split the group
into 2.

Split the group above the selected channel:

Split the group below the selected channel:
