GDS-2000A Series Options Manual
40

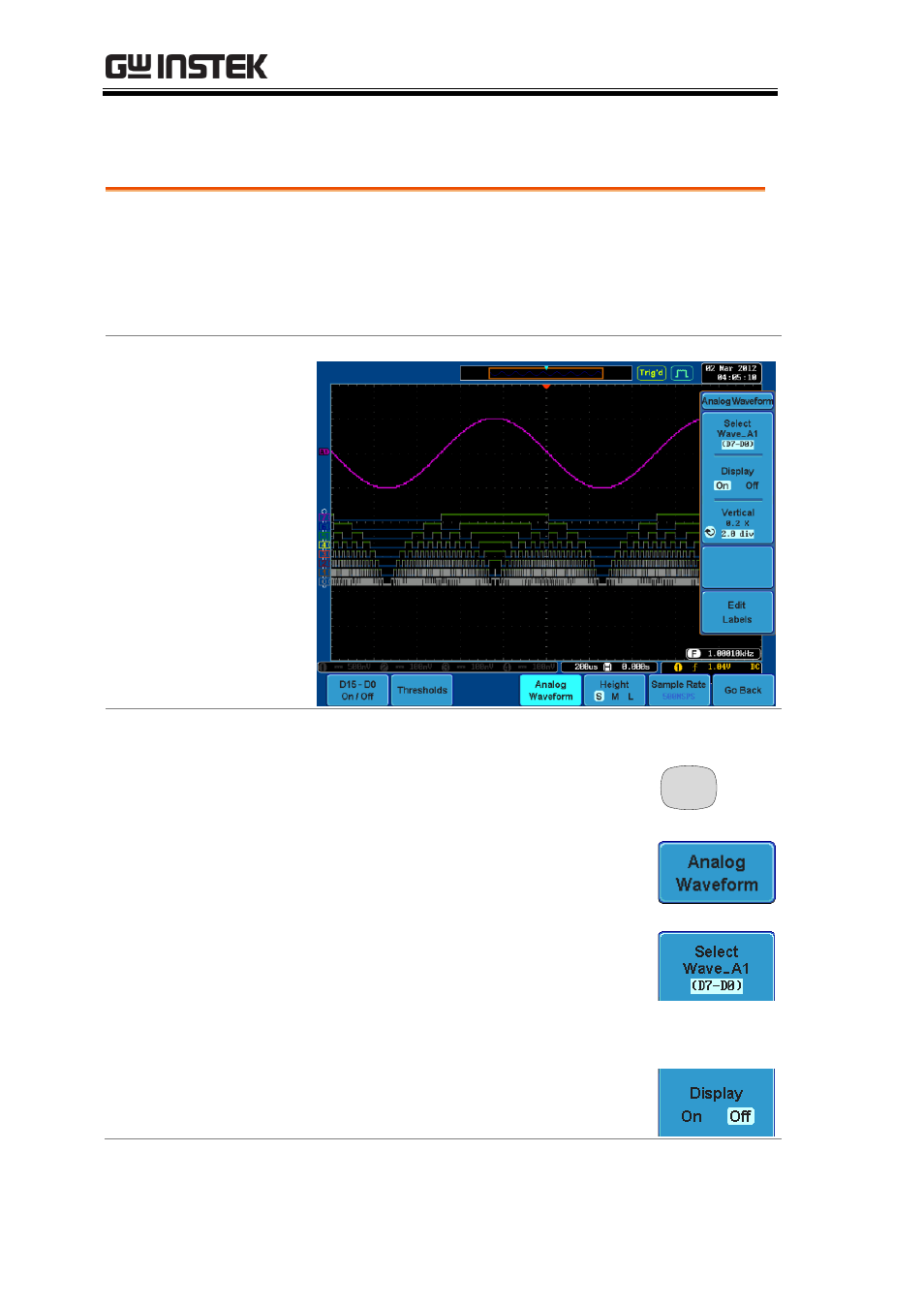

Analog Waveform
Background The analog waveform function combines the
digital channel inputs into two 8-bit analog
waveforms. The analog waveforms are created
from the digital channel groups D0~7 and D8~15.
Example
Panel Operation 1. Press the Option key. Option
2. Press the Analog Waveform key.
3. Press Select and select which
analog waveform you which to
display, Wave_A1 (D7~D0) or
Wave_A2 (D15~D8).
Display on Screen 4. Press Display to display the
selected waveforms on the screen.
