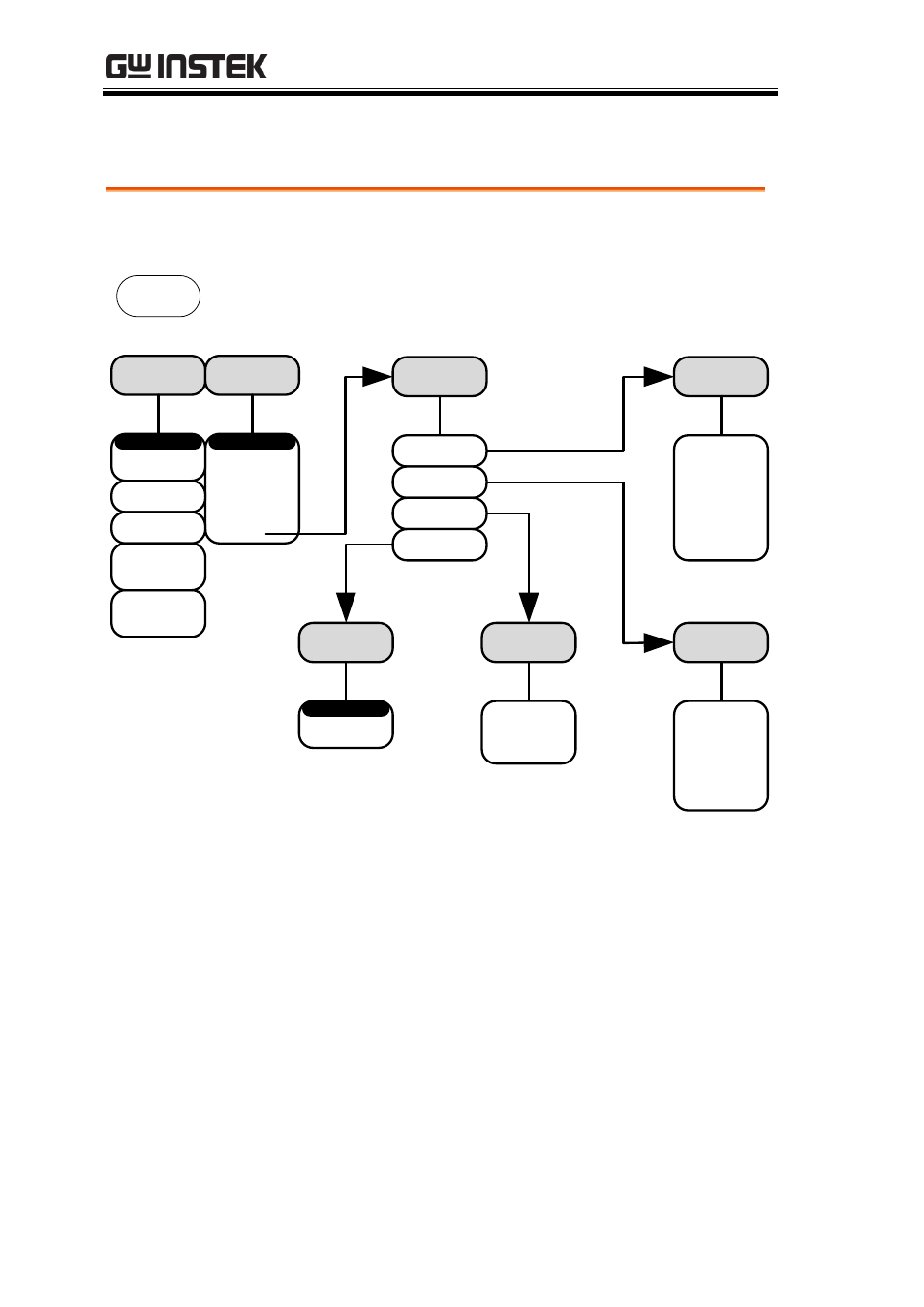

Search - Bus
Set the Search function for bus events.
Note: The source bus is determined from the bus trigger settings.
Edge
Pulse Width
Runt
Rise/Fall Time
Logic
Bus
Search
Search On Search
On
Off
Search
Save All
Marks
Clear All
Marks
Copy Trigger
Settings To
Search
Copy Search
Settings To
Trigger
Search Type Source Bus
Search
UART*
I 2 C*
SPI*
Parallel*
Tx Start Bit
Rx Start Bit
Tx End of Packet
Rx End of Packet
Tx Data
Rx Data
Tx Parity Error
Rx Parity Error
Search On Search On
SS Active
MOSI
MISO
MOSI & MISO
Search On
Binary
Hex
Data Start
Repeat Start
Stop
Missing Ack
Address
Data
Address/Data
*The source bus is determined from the bus trigger settings.
