LOGIC ANALYZER
57

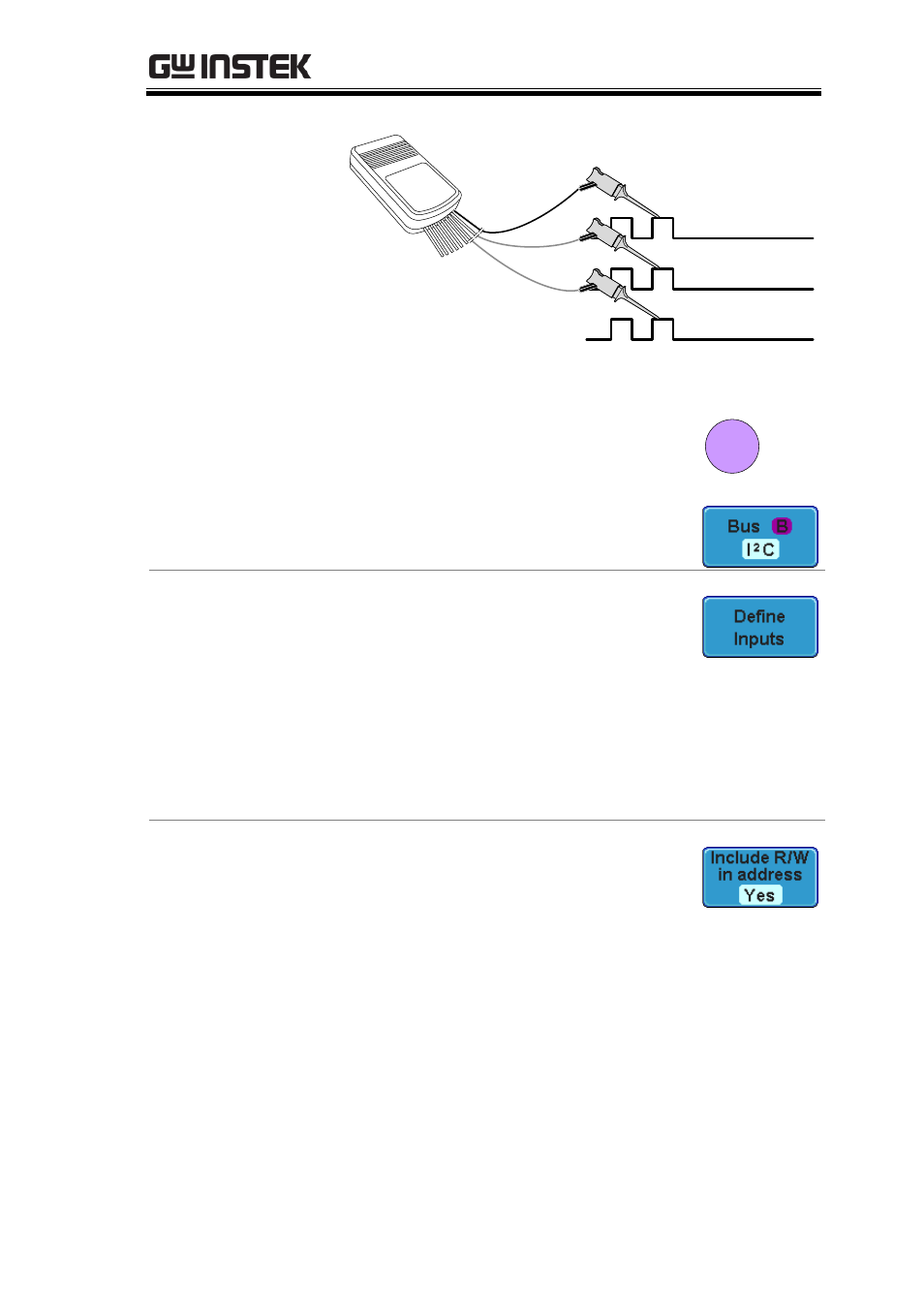

GND
SCLK
SDA
2. Press the Bus key.
B
BUS
3. Press Bus from the bottom menu
and choose I 2 C from the side menu.
Define Inputs 4. Press Define Inputs from the bottom
menu.
5. From the side menu choose the
SCLK input and the SDA Input.
SCLK D15~D0
SDA D15~D0
Include R/W in
address To configure whether you want the
R/W bit to be included in the
address, press Include R/W in
address and set to Yes or No in the
side menu.
R/W Bit Yes, No
SPI Serial Bus Interface
The serial peripheral interface (SPI) is a full duplex 4 wire
synchronous serial interface. The 4 signals lines: Serial clock line
(SCLK), slave select (SS), Master output/slave input (MOSI, or
