Warning – Hired-Hand Evolution Series 1200 User Manual
Page 51
Part No. 4801-5331 Rev 2-08
Evolution 1200
51 of 64
WARNING!
Keep High Voltage (Or AC)
Separate From Low Voltage Wires!

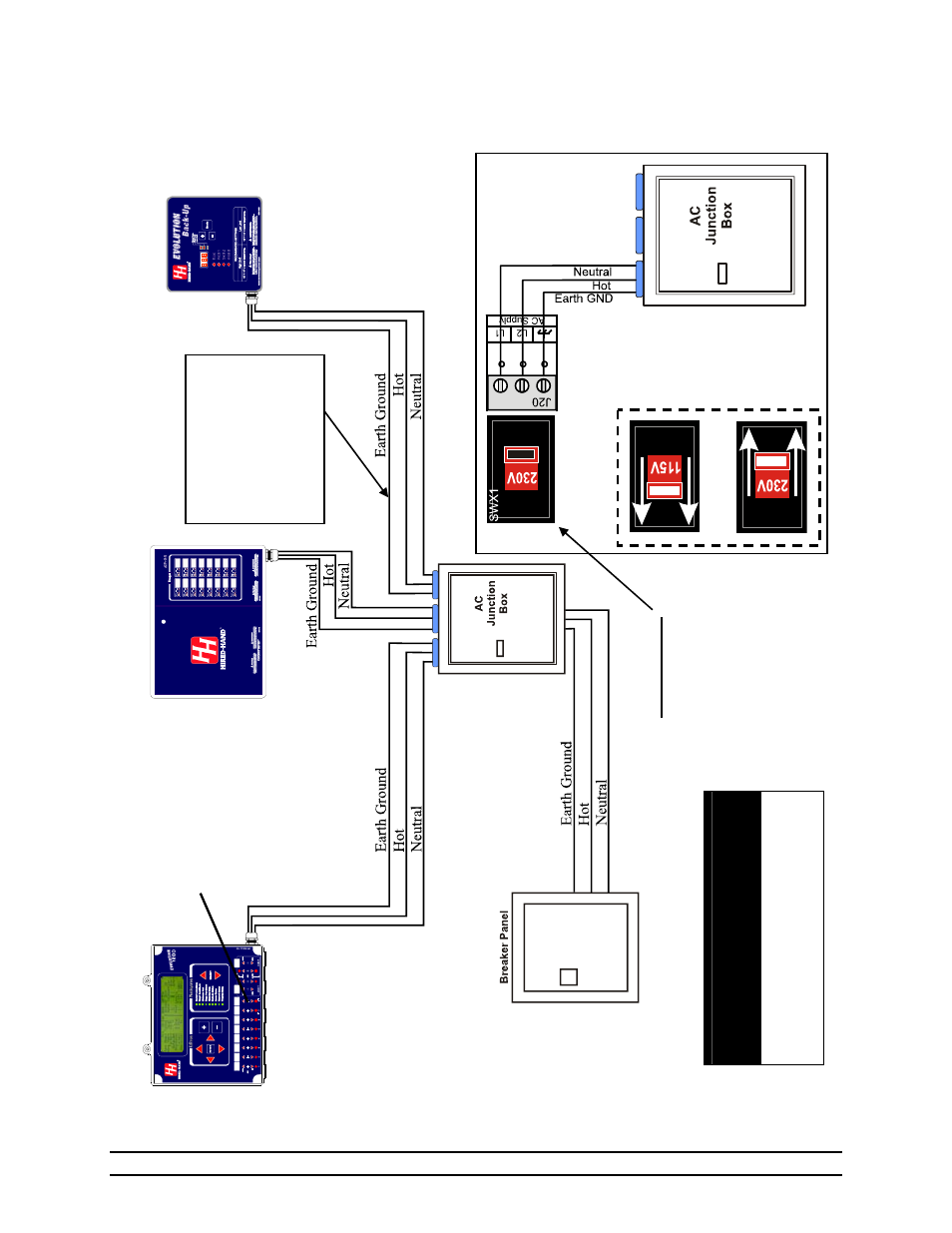

8.13 Power Supply Connection
Evolution Back-up
Cabinet
Evolution 3000 16 Stage
Ex
p
ansion Module
Evolution 1200
Control
NOTE:
Run power Cables
including earth Ground
from each Cabinet to a
common AC junction box.
Do Not run AC power and
ground between cabinets.
Inset A
(AC Input on
PCB 186)
WARNING:
Ensure that the Voltage
Selector Switch shown in Inset
B is set according to the AC
Supply voltage. Equipment
da
ma
g
e will o
ccur if this
switch is not set correctly.
Controllers are shipped from
HHI set to 240V.
Inset B
OR
Inset
A
