Part No. 4801-5331 Rev 2-08

Evolution 1200

24 of 64

(1)MODULES (2)ENABLED (3)STATUS
EV-INPUT/OUTPUT Yes

OK

EV-16(1-16) or SCS-16 Yes

OK

EV-16(17-32) or SCS-8 Yes

OK

EV-16(33-48) No

OK

EV-16(49-64) No

OK

BACK-UP/S3 Yes

OK

HEAT ZONE No

OK

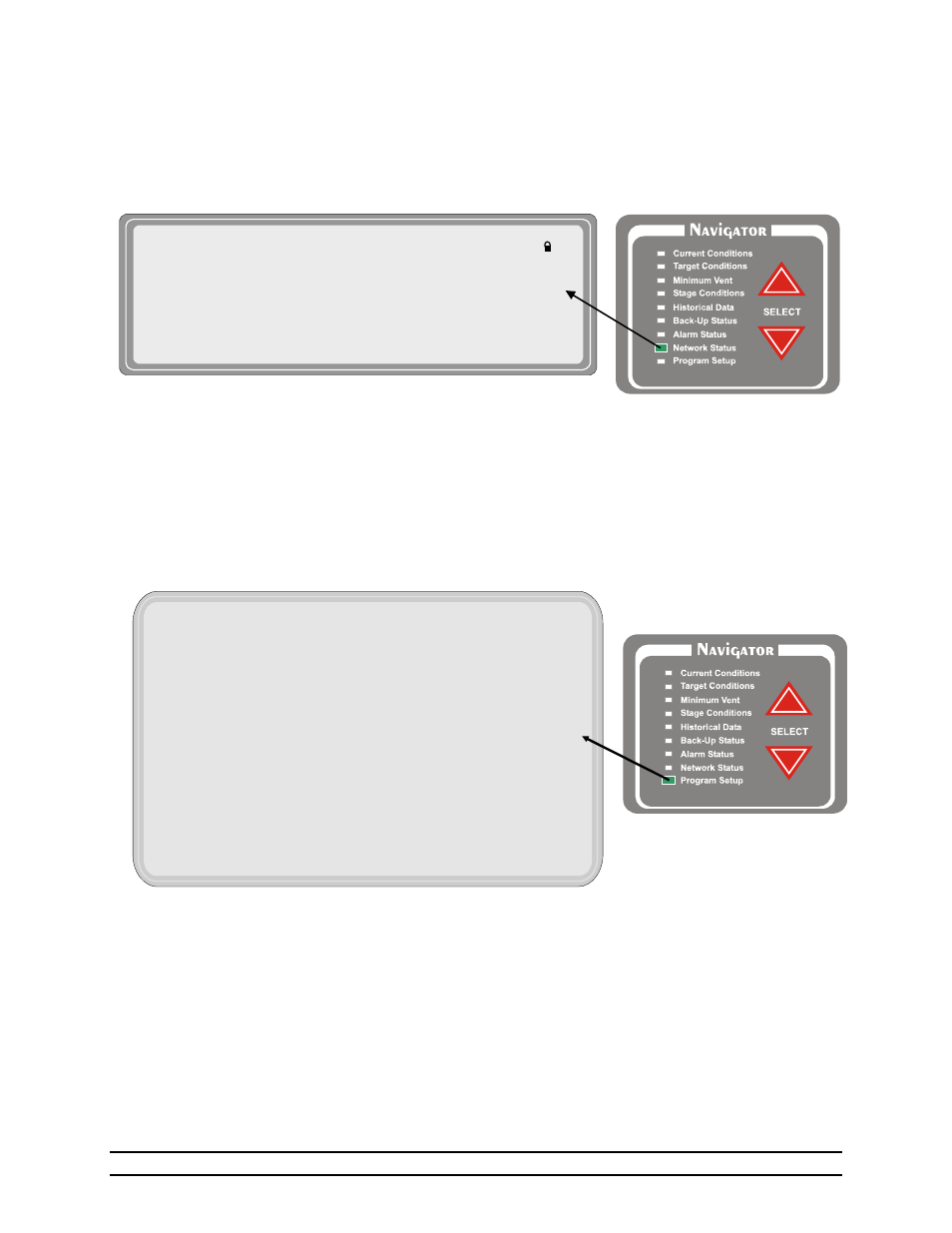

6.8 Network

Status

The Network Status shows the installed Evolution Stages, the Back-Up and the Heat Zone. The
ENABLED indicator shows if the stage is enabled and the STATUS indicates OK or Failed.
(1) Modules – The Evolution modules that can be installed will appear here. EV I/O - This is the back

board of the Evolution 1200.












(2) Enabled – Those modules that are enabled will be indicated by Yes. This column lets you know which

modules are turned on for the Evolution control to communicate with. When adding expansion back-up
modules, the ENABLED must be set to “Yes” for proper operation.

(3) Status - OK or Failed. This column lets you know if you have lost communication with one of the

modules.

6.9 Program

Set-Up

The Program Setup screen is used to select all of the Programming screens. Highlight an entry and press
the ENTER button. See the next section of this manual for a description of the programming screen.


















(1) General Settings – Parameters that usually need to

be set when the system is installed. See Section 7.1.

(2) Temperature Sensors –See Section 7.2.
(3) Feed Level Sensors - See Section 7.3.
(4) Ventilation Inlets - See Section 7.4.
(5) Natural Ventilation - See Section 7.5.
(6) Growout Curve - See Section 7.6.
(7) Tunnel Ventilation -
See Section 7.7.
(8)-(11) On/Off Stages - Settings for Set up of stages.

See Section 7.8.

(12) Variable Stage Outputs - Set-up for variable

stages. See Section 7.9.

(13) Stage Properties – See Section 7.10.
(14) Setup Feed Clocks – See Section 7.11.
(15) Setup Light Clocks - This feature is added for

those applications that desire light control See
Section 7.12.

(16) Seasonal Programs & Password Setup –

See Section 7.13.

(17) Diagnostics - See Section 7.14.

1. General

Settings

"

2. Temperature

Sensors

3. Feed Level Sensors

4. Ventilation

Inlets

5. Natural

Ventilation

6. Growout

Curve

7. Tunnel

Ventilation

8. On/Off Stages 1-16

9. On/Off Stages 17-32

10. On/Off Stages 33-48

11. On/Off Stages 49-64

12. Variable Stage Outputs

13. Stage Properties

14. Setup Feed Clocks

15. Setup Light Clocks

16. Seasonal Programs & Password Setup

17. Diagnostics
