Terminal Blocks & Jumpers
3006-5129

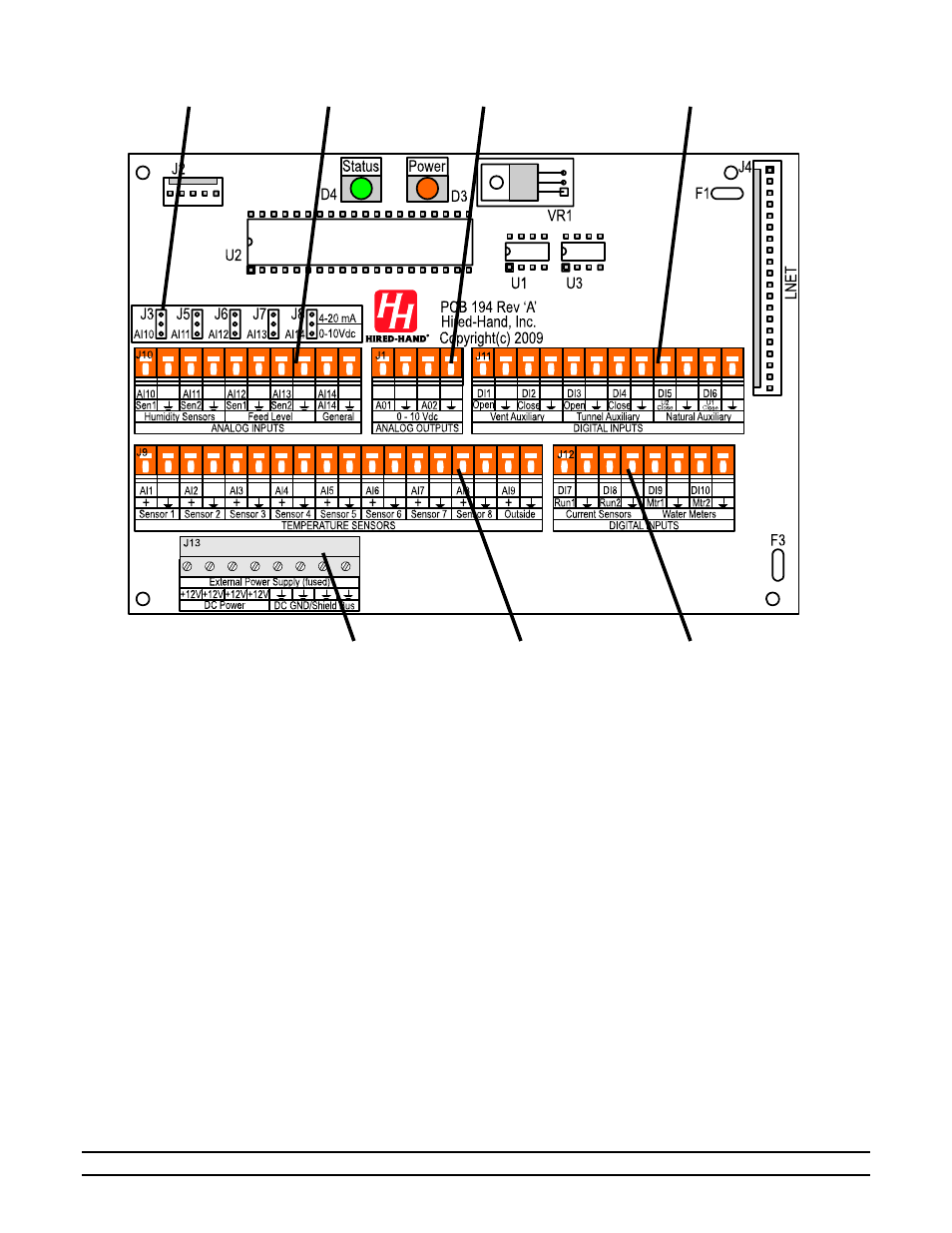

CONN TBLK 4pos IDC (On PCB194)
3006-5130
CONN TBLK 8pos 5mm (On PCB194)
3006-5132
CONN TBLK 8pos IDC (On PCB194)
3006-5133
CONN TBLK 10pos IDC (On PCB194)
3006-5135
CONN TBLK 12pos IDC (On PCB194)
3006-5137
CONN TBLK 18pos IDC (On PCB194)
3006-2984
CONN IDC 2 pin MINI JUMPERS (On PCB194 and PCB190)
3006-5119
CONN TBLK 4pos 1975600 (On PCB190)
3006-5082
CONN TBLK 3 pos Magnum (on PCB198, J1 & J3)
3006-5084
CONN TBLK 4pos Magnum (on PCB198, J5)
3006-5088
CONN TBLK 6pos Magnum (on PCB198, J9)
3006-2140
CONN AC TBLK EV4000
CONN TBLK
12pos IDC
(3006-5135)
CONN TBLK
8pos IDC
(3006-5132)
CONN TBLK
18pos IDC
(3006-5137)
CONN TBLK
8pos 5mm
(3006-5130)
CONN TBLK
4pos IDC
(3006-5129)
CONN TBLK
10pos IDC
(3006-5133)
CONN 2pin
Mini Jumpers
(3006-2984)
