Hired-Hand Evolution 4000 Control System - Manual (Page 12)

Part No. 4801-5338 Rev 01-10 Evolution 4000 12 of 86

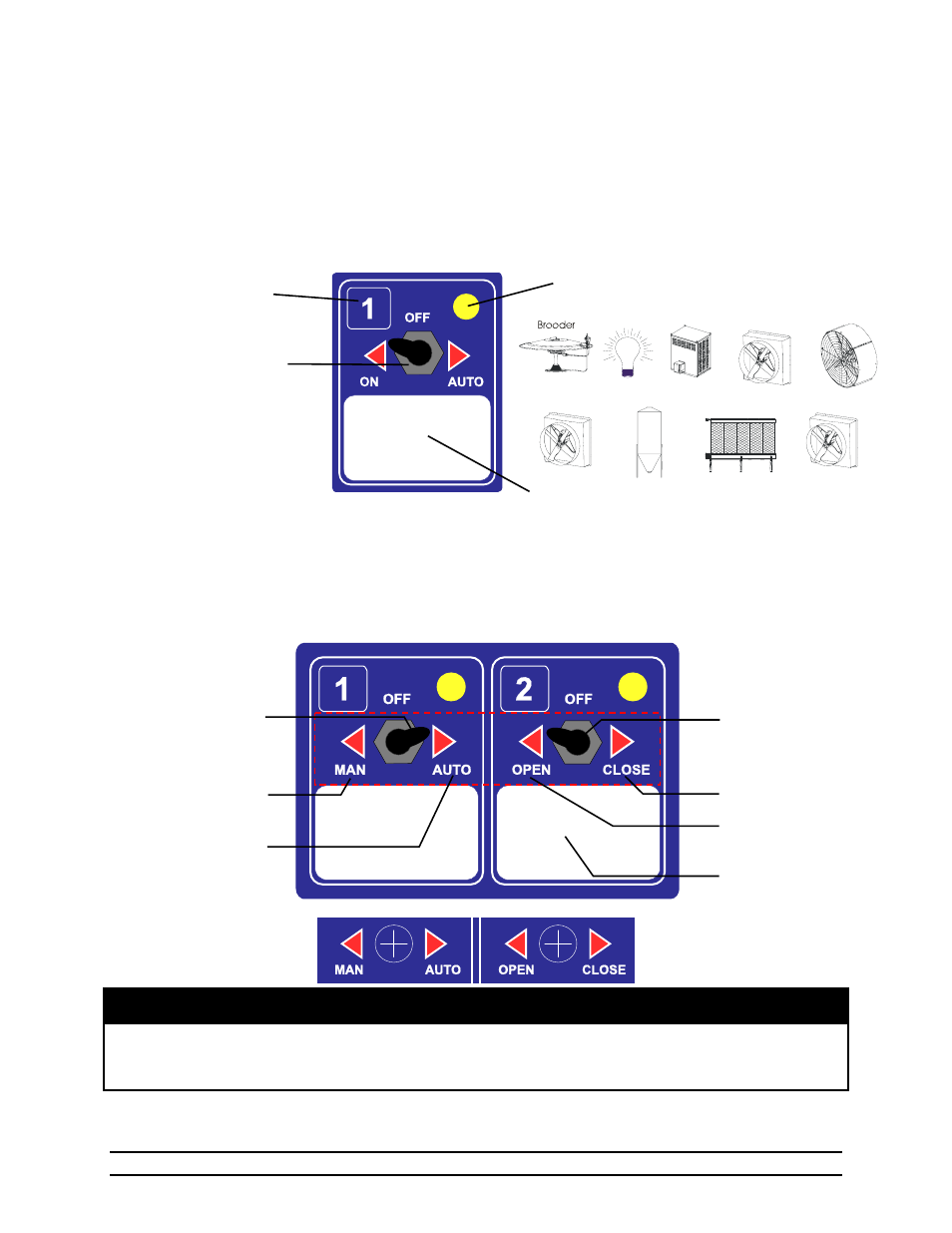

5.3 Stage Switch
The stage LED indicator lights when a stage is active. The stage switch is used to select Auto operation,
On, or Off. If switch is in Auto position, the stage operation is controlled by the controller. That is, the
stage may turn on and off according to settings selected from the Main Display screen. If switch is in the
On position, a stage is On continuously. If switch is in the Off position, a stage is Off with the exception
of Back-Up conditions.
The white space is used to affix a label indicating stage function (i.e. brooder, fan, light, cool, etc.)
NOTE: Stages 1-40 are marked on the controller front panel. For optional Inlet Stages, use stick-on label
to apply to two side-by-side stages.
5.3.1 Inlet Stages
Optional inlet stages may be added to control vents & curtains. When Auto/Manual toggle switch is placed
in Auto position, inlet opens and closes according to programmed instructions. Use the Open/Close toggle
switch to manually open or close inlet when Auto/Manual toggle switch is placed in Manual position. The
Notation area is for labeling the inlet. Refer to Section 9.11 for additional Inlet Stages details.
Under normal circumstances the machines should be left in automatic (Auto) as shown above.
IMPORTANT!
Stages that are programmed to be open/close stages must follow two rules. First, they
must be consecutive, and second, they must start on an odd stage. The open output
will always be the odd stage and the close stage will always be the even stage.
Manually opens or
closes inlet
Controller opens or
closes inlet
Notation Area
Toggle Switch
(Auto or Manual
Operation)
Toggle Switch
(Open or Close
Operation)
Opens Inlet
(Manual Oparation)
Closes Inlet
(Manual Oparation)
Stage number
(Use labels to denote
stages 17-64)
Stick Icon label onto white
area or use for notation.
LED Indicator (lights
when stage is ON)
Icon labels are provided to
affix to white area of stage
control. Icon symbols are
shown at right.
Heater Negative Fan Light
Stir Fan
Neg./Tun.
Feed
Evap. Cooling Tunnel Fan
ON, OFF, AUTO
Switch positions
