(1)Light Schedule (2)Feed Schedule
(3)MINIMUM TIMERS:
(4)Cycle= 5 m ( 300s) (8)VARIABLE SPEED:
(5)Min1%= 40% ( 215s) (9)V1 Min%= 50%( 55%)
(6)Min2%= 20% ( 108s) (10)V2 Min%= 40%(100%)
(7)Var%: 20% ( 108s)
(11)VARIABLE TIMER:
(12)Sensors = Outside-
(13)Max Run % = 65% (14)Max Temp = 85.0°
(15)Min Run % = 20% (16)Min Temp = 70.0°
(17)COOL TIMER:
(18)Max Run % = 100% (19)Cycle = 10 m ( 600s)
(20)Min Run % = 55%
NOTE: Cycle in seconds
NOTE: Run Time in seconds
6.3 Timers & Clocks – MAIN SYSTEM
The Minimum Vent status screen display:
(1) Light Schedule – Displays the current Light Clock
Schedule. See Section 7.13.
(2) Feed Schedule – Displays the current Feed Clock
Schedule. See Section 7.12.
(3) Minimum Timer 1 - The Minimum timer one and
two both share the same cycle time. Different
timer percentages may be set for minimum 1 vs.
minimum 2. If the vent anticipation is being used,
the vents will start opening before a negative
ventilation stage turns on and will adjust until the
vent opening necessary for the desired target
pressure is achieved.
(4) Cycle - The length of Timer 1 cycle. Cycle = 1 to
20 minutes.
(5) Min1 % - The percentage of the Timer 1 cycle
that the stage will run.
(6) Min2 % - The percentage of the Timer 2 cycle
that the stage will run.
(7) Var % - The percentage of time a stage is
currently running using the variable timer based
off the temperature.
NOTE: The Minimum timer one and two both share
the same cycle time. Different timer percentages
may be set for Minimum 1 and Minimum 2. If the
vent anticipation is being used, both Minimum 1
and Variable will start the vents open before a
stage comes on.
(8) Variable Speed: These settings are used to set up
variable speed fan operation.
(9) V1 Minimum - The minimum speed or minimum
percentage of light intensity for V1; The value
inside the parenthesis shows the current
percentage.
(10) V2 Minimum -The minimum speed or minimum
percentage of light intensity for V2; The value
inside the parenthesis shows the current
percentage.

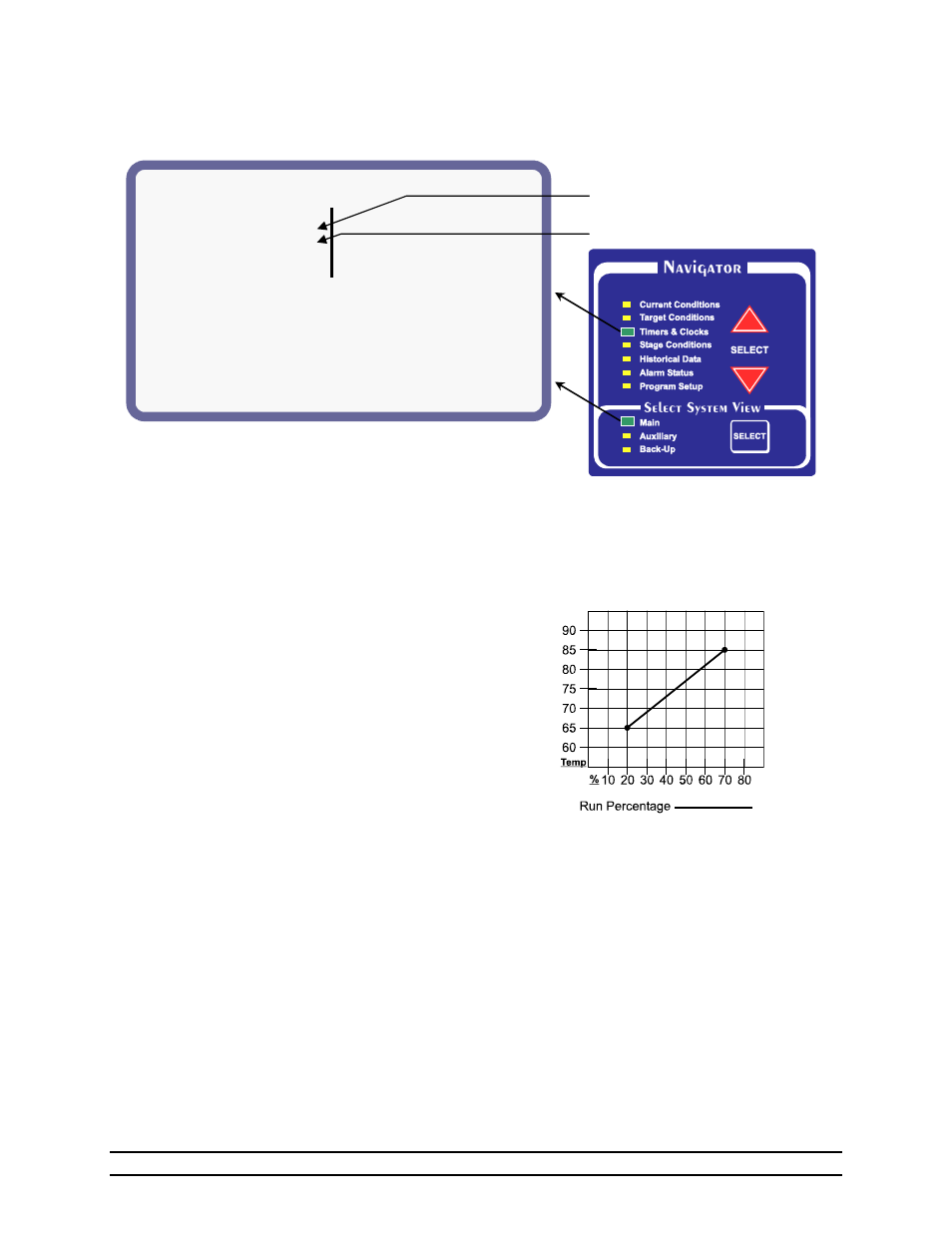

(11) Variable Timer - The variable timer will vary
the timer based on temperature. See chart shown
below.
(12) Sensors - The sensors used to determine the run
time. Active sensors will be indicated by a number
starting with #1 from right to left. Inactive sensors
will be indicated by a - or hyphen. When "outside-
" is displayed, outside sensor is active. For
example, If sensors 1, 2 and 3 are being used, "-----
321" will be displayed. When “outside” is
displayed, the outside sensor is active.
(13) Max Run % - The maximum Run Time
percentage.
(14) Max Temp - The temperature at which the timer
will run Maximum Run time % percentage.
(15) Min Run % - The minimum Run Time
percentage.
(16) Min Temp - The minimum temperature. The
timer will be at minimum Run %.
