Hired-Hand Evolution 4000 Control System - Manual (Page 65)

Part No. 4801-5338 Rev 01-10 Evolution 4000 65 of 86

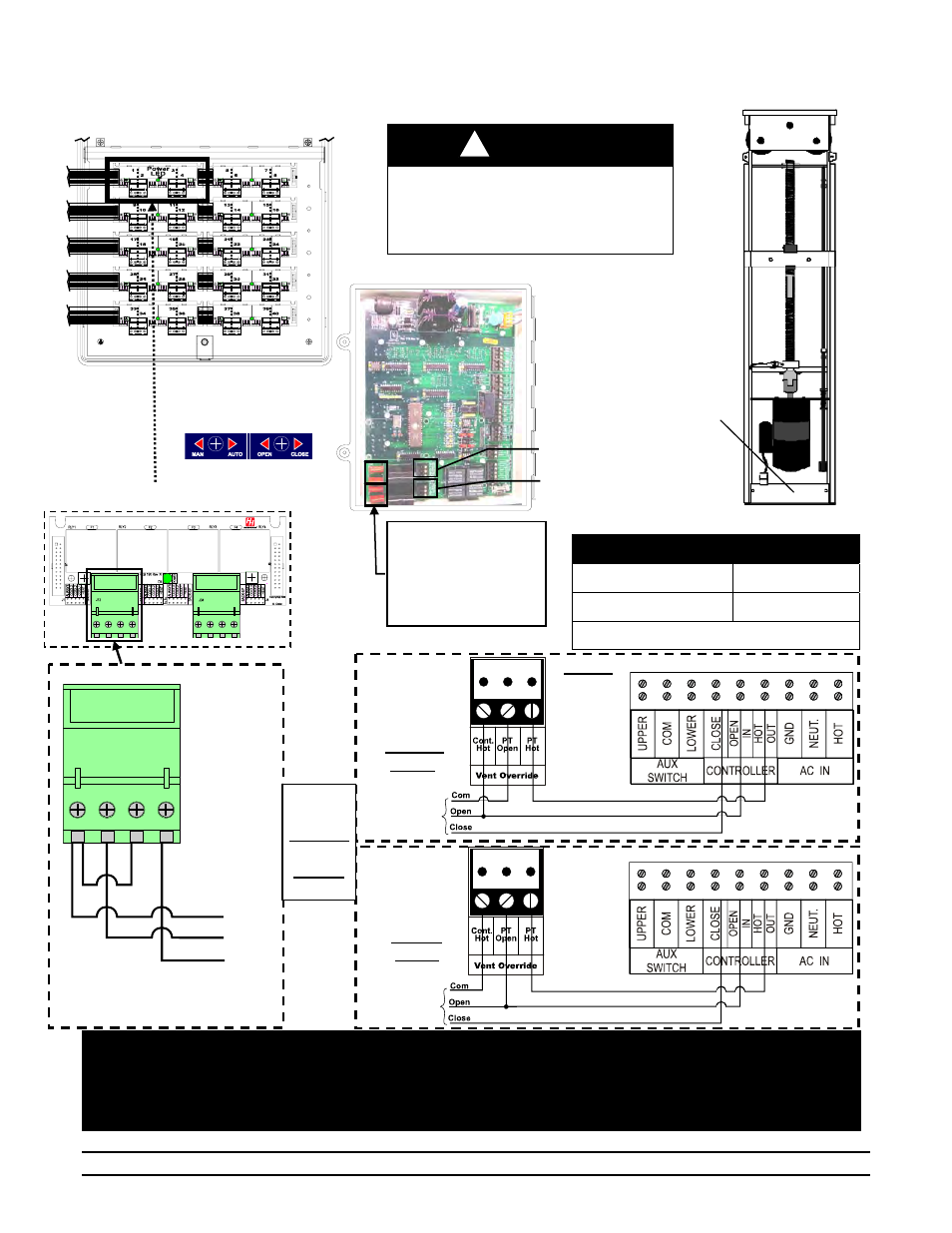

9.13 Connecting the PowerTrak and S-3 Back-Up to the Evolution 4000
PCB190 Relay Board for
Power Ventilation
Open Close
COM COM
WARNING!
• Keep High Voltage (Or AC) Separate
From Low Voltage Wires!
• Do not perform modifications or wiring
with voltage applied!
R
Inset B
S-3 Vent
Override
for
Fail-Safe
Action
INLET MODE
Vent Override Cool 1
Tunnel Override Cool 3
Vents & Tunnel Will Wire The Same
PowerTrak Inset C
Inset B
S-3 Vent
Override
for
Normal
Action
NOTE:
Refer to the
S-3 Manual
4801-2997 for
additional P5
& P6
S-3 Setting
Instructions
PowerTrak Inset C
PowerTrak
Inset C
Inset A
NOTE: If curtain is setup to pull curtain up to open, then reverse wires connected to "OPEN" and "CLOSE" terminals.
NOTE: Only 1 Power Trak can be connected to each Power Trak outlet. If Additional Power Traks are needed,
Then use of relay boxes is necessary to separate the load.
NOTE: All PowerTrak units will connect the same.
To
EV-4000
PCB 190
To
EV-4000
PCB 190
Unit #1 Vents
Wire for
Either
Fail-Safe
OR
Normal
Action
Secondary Sensing System
Tunnel Override
Inset B
Vent Override
NOTE:
If connecting the Back-Up
to a relay box instead of
PowerTrak, Cut and
discard the specific two or
four components shown as
needed.
To
EV
S-3
}
EV-4000
PCB 190
Evolution 4000
Open
Close
Com
Apply Vent Label
to cover label.
Refer to Section 9.11.
