Auxiliary Room Conditions
Alarm Status
(1) Temp: 71.4° (3) Off
(2) Target= 70.0°
(4) Humidity: 0% (6) Off
(5) Range= 30%- 50%
"
(1)DAY (2)HIGH TEMP (4)LOW TEMP
21 71.0°-12:34p 61.6°–12:34a
20 71.0°-12:34p 61.6°–12:34a
. . . . .
. . . . .
1 71.0°-12:34p 61.6°–12:34a

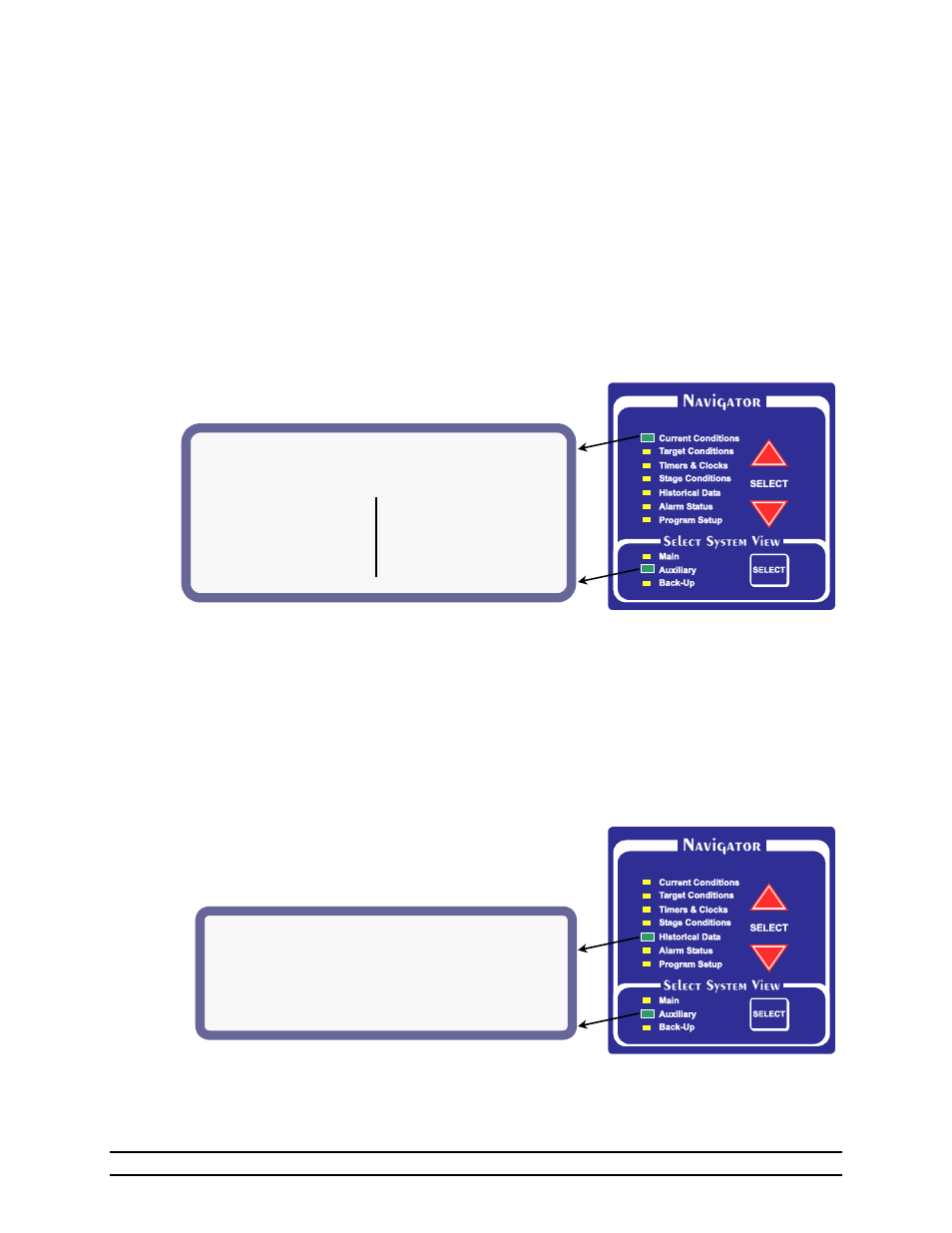

6.8 Current Conditions – AUXILIARY SYSTEM
The Current environmental Conditions of the Auxiliary System are shown here. The Auxiliary System is
typically used to monitor the temperature and humidity of a separate room which is typically an egg/cooler
room in certain applications.
The numbers in brackets e.g. (1) refer to the descriptions below the sample screen displays.
(1) Temp – The current temperature for the Auxiliary Room.
(2) Target – Target Temperature for the Auxiliary Room.
(3) Alarm Status – Selecting OK will allow an Alarm condition if the temperature range is exceeded.
Selecting Off will NOT allow an Alarm condition.
(4) Humidity – The percent of water vapor of the air inside the Auxiliary Room.
(5) Range – The allowable humidity range for the Auxiliary Room.
(6) Alarm Status – Selecting OK will allow an Alarm condition if the Humidity range is exceeded.
Selecting Off will NOT allow an Alarm condition.
6.9 Historical Data – AUXILIARY SYSTEM
The Historical Data of the Auxiliary System are shown here. This screen shows the highest and lowest
room temperature for each day for up to 99 days. The last day reported will appear at the top of the list.
The list can contain data up to 99 days. After displaying 99 days, oldest data will be deleted.
(1) Day – The specific day in the growout period. Values = 1 day to 99 days.
(2) High Temp – The high recorded temperature and the time of day that it occurred.
(3) Low Temp - The low recorded temperature and the time of day low temperature occurred.
