Warning, Powertrak – Hired-Hand Evolution 4000 Control System User Manual
Page 64
Part No. 4801-5338 Rev 01-10
Evolution 4000
64 of 86
PowerTrak
AUX
SWITCH
CONTROLLER
AC IN
HOT
NE
UT
.
LOW
E
R
GND
.
HOT
OUT
CL
OSE
IN
O
PEN
IN
COM
U
PPE
R

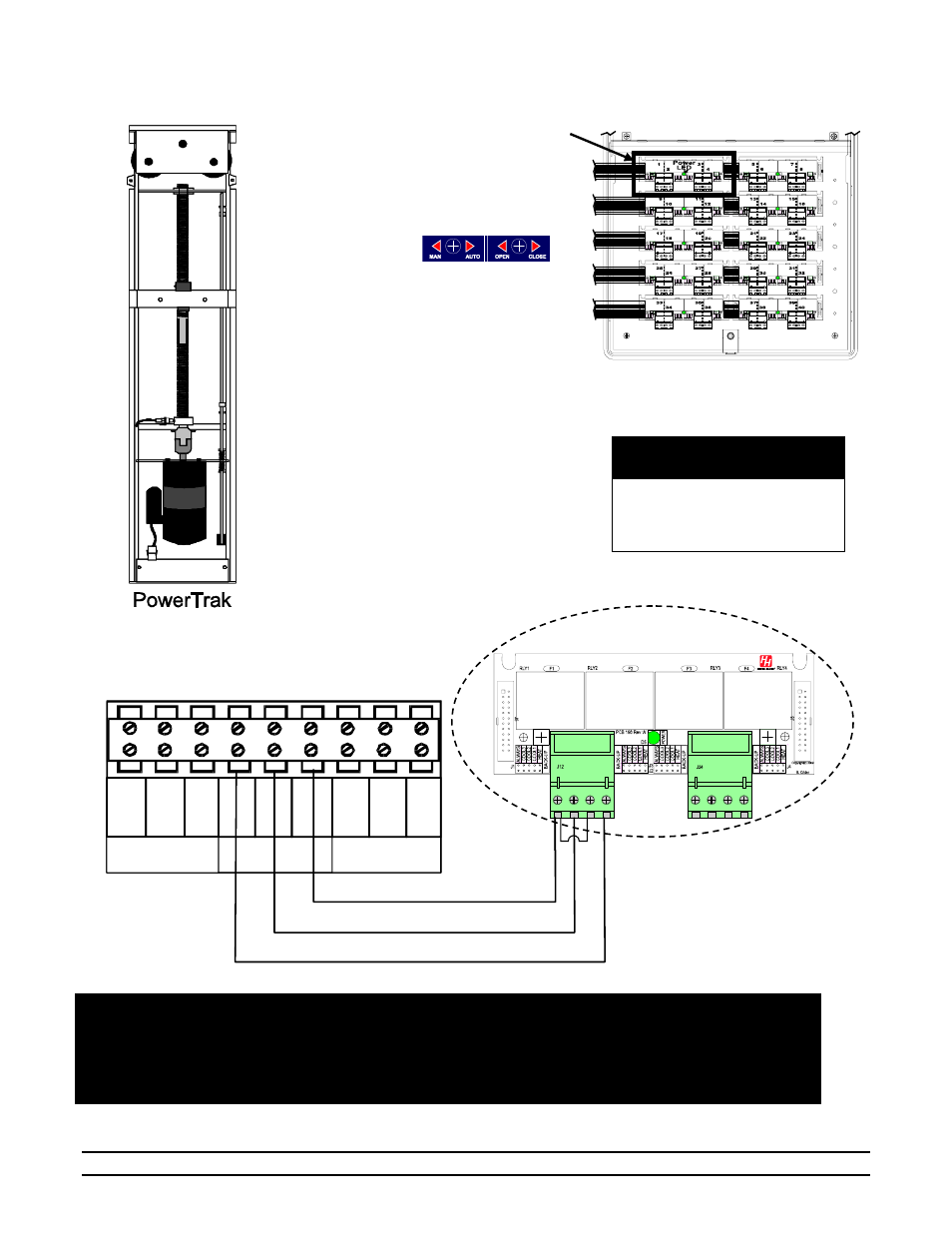

9.12 Connecting the PowerTrak to the Evolution
4000
NOTE: If curtain is setup to pull curtain up to open, then reverse wires connected to "OPEN" and "CLOSE"
terminals.
NOTE: Only 1 Power Trak can be connected to each Power Trak outlet. If Additional Power Traks are needed,
Then use of relay boxes is necessary to separate the load.
NOTE: All PowerTrak units will connect the same.
Inset A
Vent Connections
Inset B
PCB191 Relay Board
WARNING!
Keep High Voltage (Or AC)
Separate From Low Voltage
Wires!
COM
Open
COM
Close
Evolution 4000
Inset A
Apply Vent Label
to cover label.
Refer to Section 9.11.
