Warning – Hired-Hand Evolution 4000 Control System User Manual
Page 59
Part No. 4801-5338 Rev 01-10
Evolution 4000
59 of 86

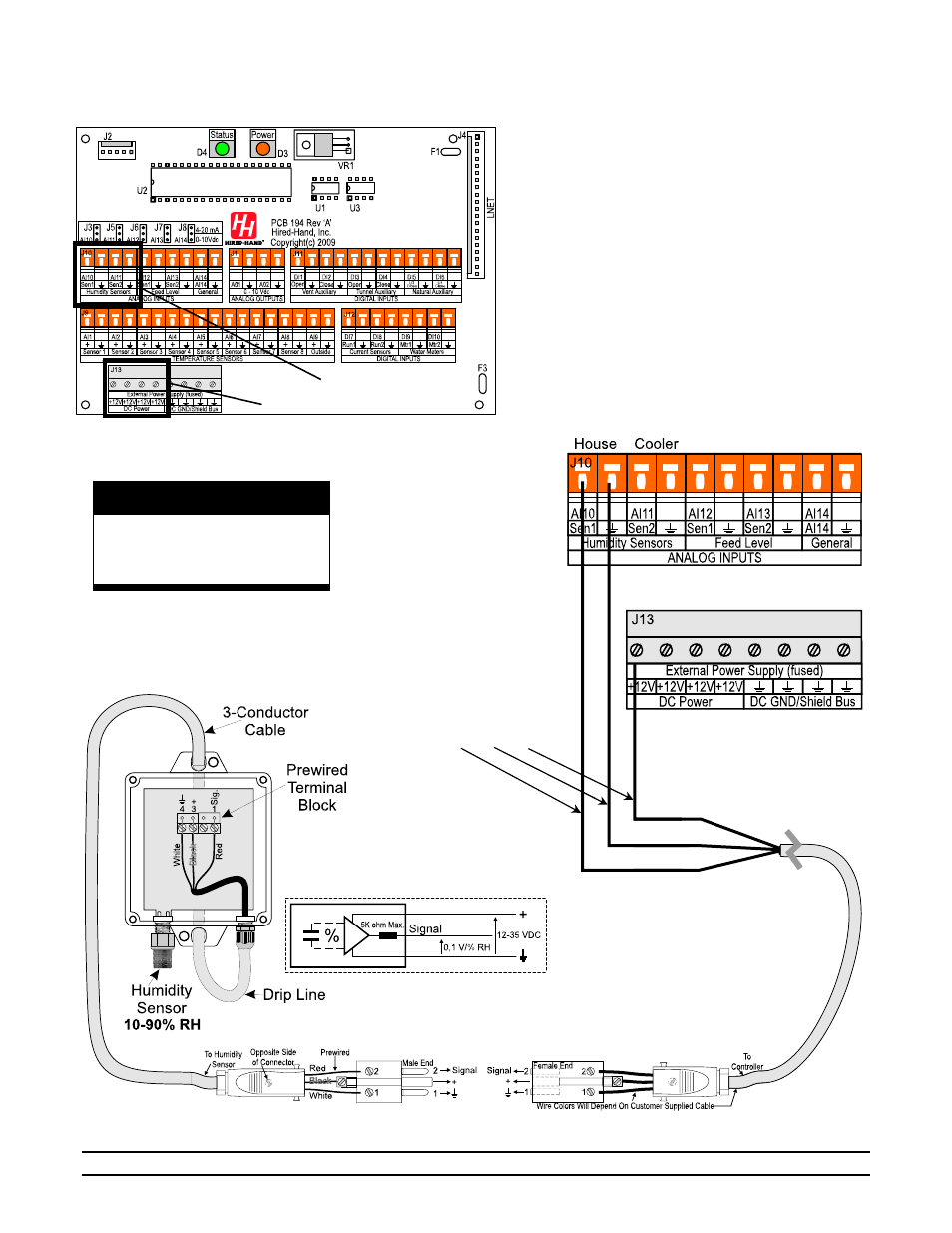

9.6
Connecting Humidity Sensor to Evolution
4000
Inset A
WARNING!
LOW VOLTAGE!
Keep Separate From
High Voltage Wires!
PCB 194
Inset B
Inset A
Inset B
Refer to 4802-5103 for Additional
Humidity Sensor Wiring &
Assembly Instructions.
Wire Colors Will
Depend On Customer
Supplied Cable.
