PUMP CONTROL PANEL

The Speedman Control Panel allows the operator to edit settings and values in each menu.

To edit values and settings within menus
Press the ENTER (*) key when the desired menu is displayed. The top line will flash if the menu can be edited
(some menus may be locked and unavailable). Use the UP and DOWN buttons to change the selection, then
press ENTER (*) again to confirm the change.

Each pump is controlled by an individual “P” button. By default a valid Access Code is required to enable,
or manually run a pump. Pumps can however be stopped and disabled without an Access Code. (Default is 21).

To enable a pump for operation
Press the “P” button and the associated mode indicator will light up. The selected pump is now available for
operation in Automatic mode.

To disable a pump in Automatic Mode
Press the “P” button until the Pump ON/OFF indicator light turns off.

To operate a pump on Manual
Press and hold the “P” switch for 3 seconds to start a pump in “Manual”.

The Pump MODE light will be flashing and the RUN indicator will be on. To turn a manual pump off, press and
release the “P” switch.
The RUN light turns off when the pump is disabled. To return it to Automatic press the “P” button again until the
Mode indicator turns on.

Manual Mode Protection

Pump protection settings apply to all pumps including those in manual mode.
Unless specifically requested otherwise the Speedman controller will maintain pump protection and if active,
will not allow pumps to run in manual when manual is selected.

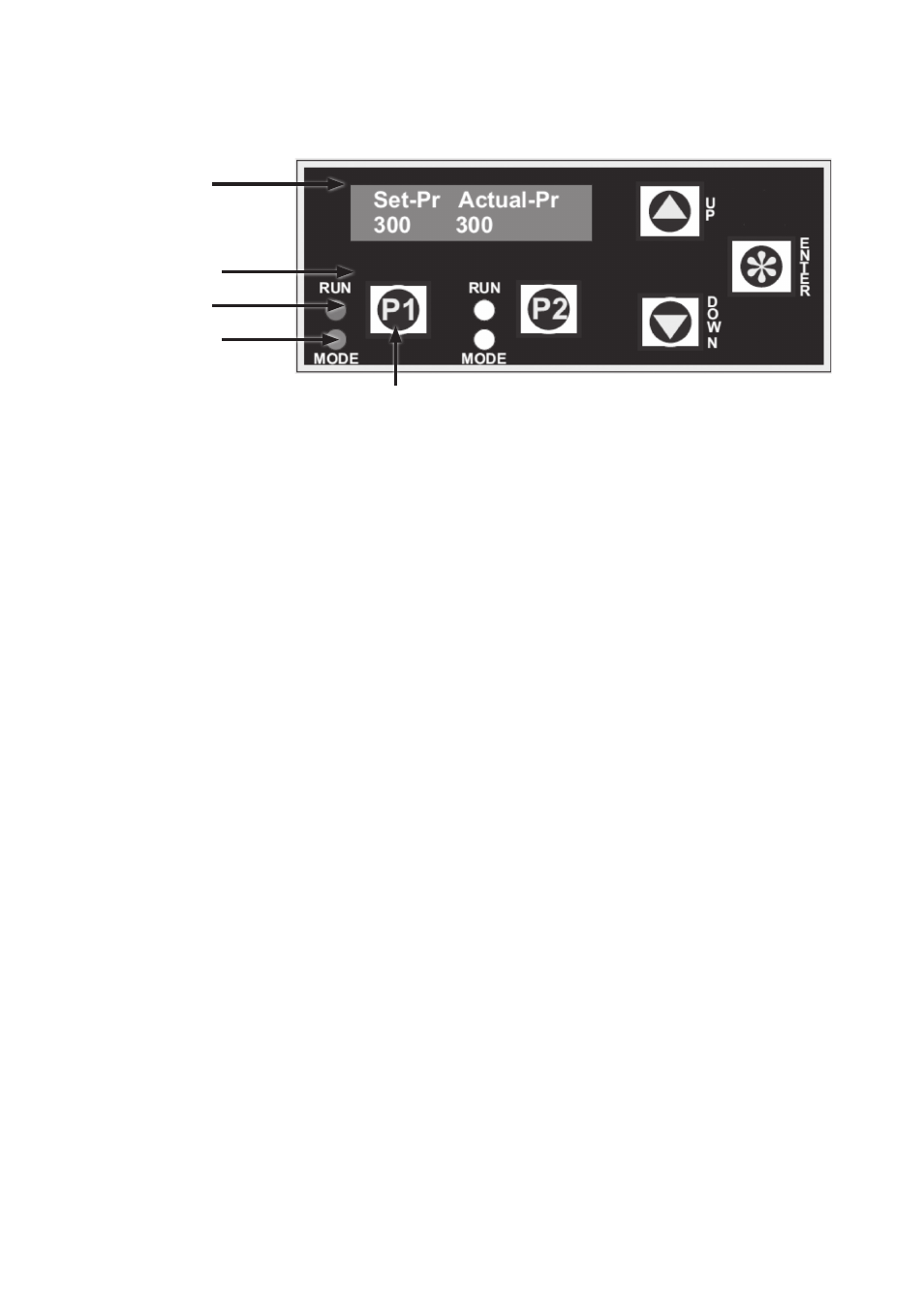

Two line LCD

Display

Pump RUN

Indicator

Pump Enable

Indicator

Pump Enable

Button
