<2. Specifications>
2-18
IM 11M12A01-04E

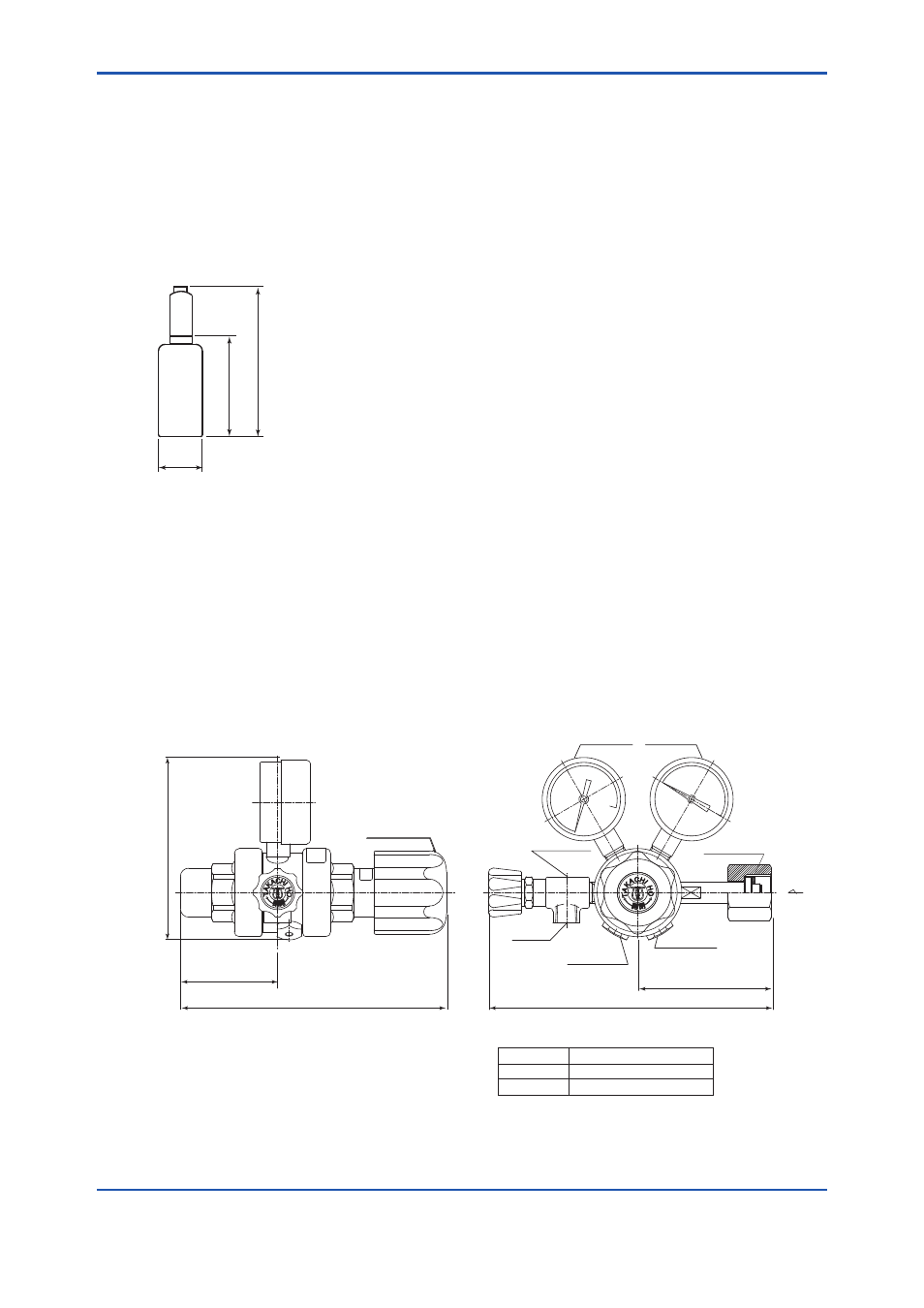

2.4.6 Zero Gas Cylinder (part no. G7001ZC)
The gas from this cylinder is used as the calibration zero gas and detector purge gas.
• Standard Specifications
Capacity: 3.4 l
Filled pressure: 9.8 to 12 MPa G
Composition: 0.95 to 1.0 vol% O
2
remaining N
2
(Note) Export of such high pressure filled gas cylinder to most countries is prohibited or restricted.
Unit : mm
Weight : Approx. 6 kg
F32.ai
485
325
ø
140
2.4.7 Pressure Regulator (G7013XF or G7014XF) for Gas Cylinder
This regulator valve is used with the zero gas cylinders.
• Standard Specifications
Primary Pressure: Max. 14.8 MPa G
Secondary Pressure: 0 to 0.4 MPa G
Connection:
Inlet W22 14 threads, right hand screw
Outlet Rc1/4 or 1/4FNPT
Material: Brass body
HI H AC
AKT O
Regulator handle
W22 (Right-
handed screw) Stop valve
Approx.1
12
IN
Unit : mm
* Outlet
Part No.
G7013XF
G7014XF * Outlet
Rc1/4
1/4 NPT female screw
Secondary
pressure gauge
Primary
pressure gauge
Secondary
safety valve
Primary
safety valve
Approx. 82
Approx. 59
Approx. 163 Approx. 174
