P age 50
K INO-P V-D5253-D4253 Mini-ITX Motherboard

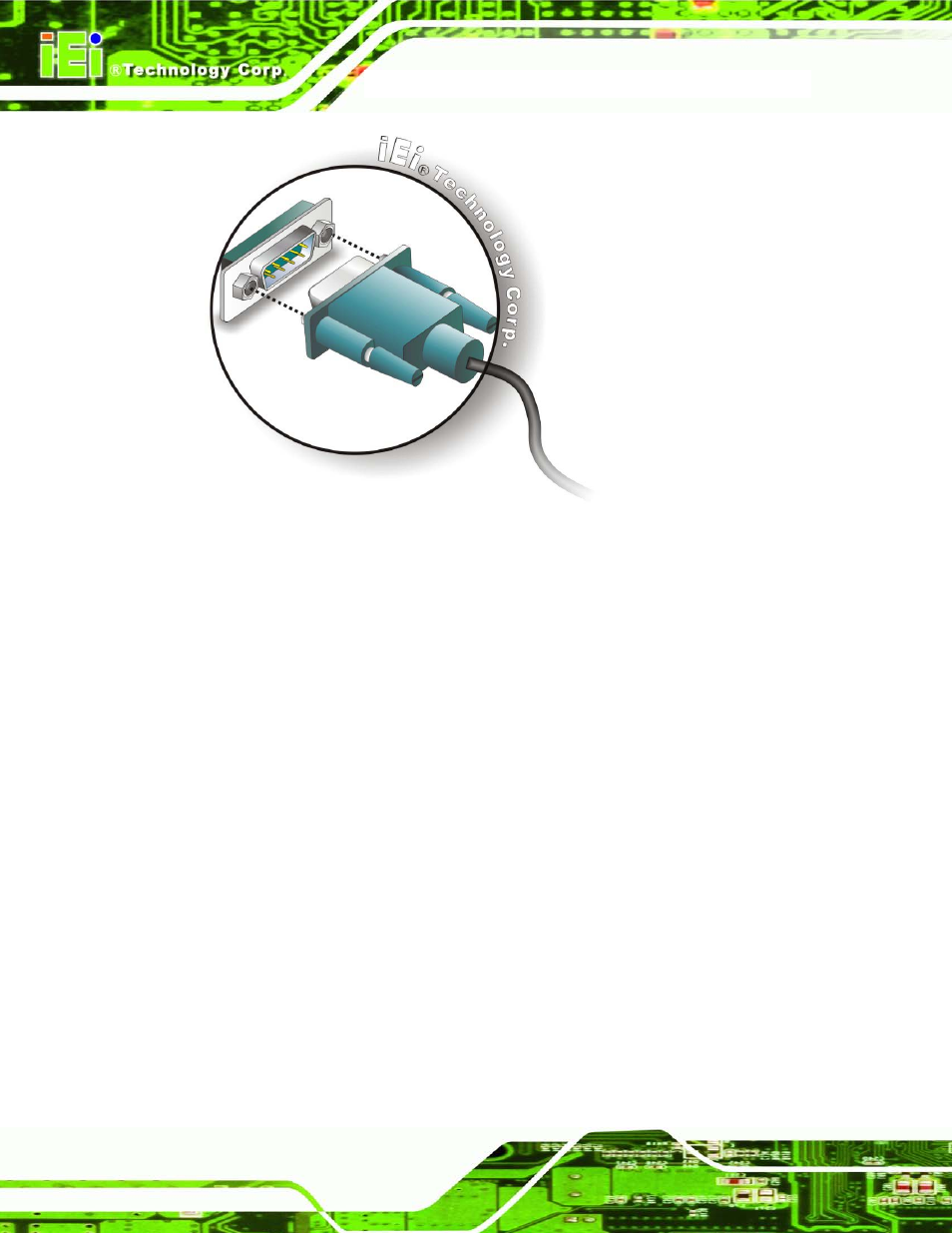

Figure 4-10: Serial Device Connector
Secure the connector. Secure the serial device connector to the external interface by
tightening the two retention screws on either side of the connector.
4.6.4 US B Device C onnection
The external USB Series "A" receptacle connectors provide easier and quicker access to
external USB devices. Follow the steps below to connect USB devices to the
KINO-PV-D5253/D4253.
Locate the USB Series "A" receptacle connectors. The location of the USB Series "A"
receptacle connectors are shown in Chapter 3.
Insert a USB Series "A" plug. Insert the USB Series "A" plug of a device into the USB
Series "A" receptacle on the external peripheral interface. See Figure 4-11.
