K INO-P V-D5253-D4253 Mini-ITX Motherboard

Pin

Description

Short 1-2

Normal (Default)

Short 2-3

Clear BIOS

Table 4-2: Clear BIOS Jumper Settings

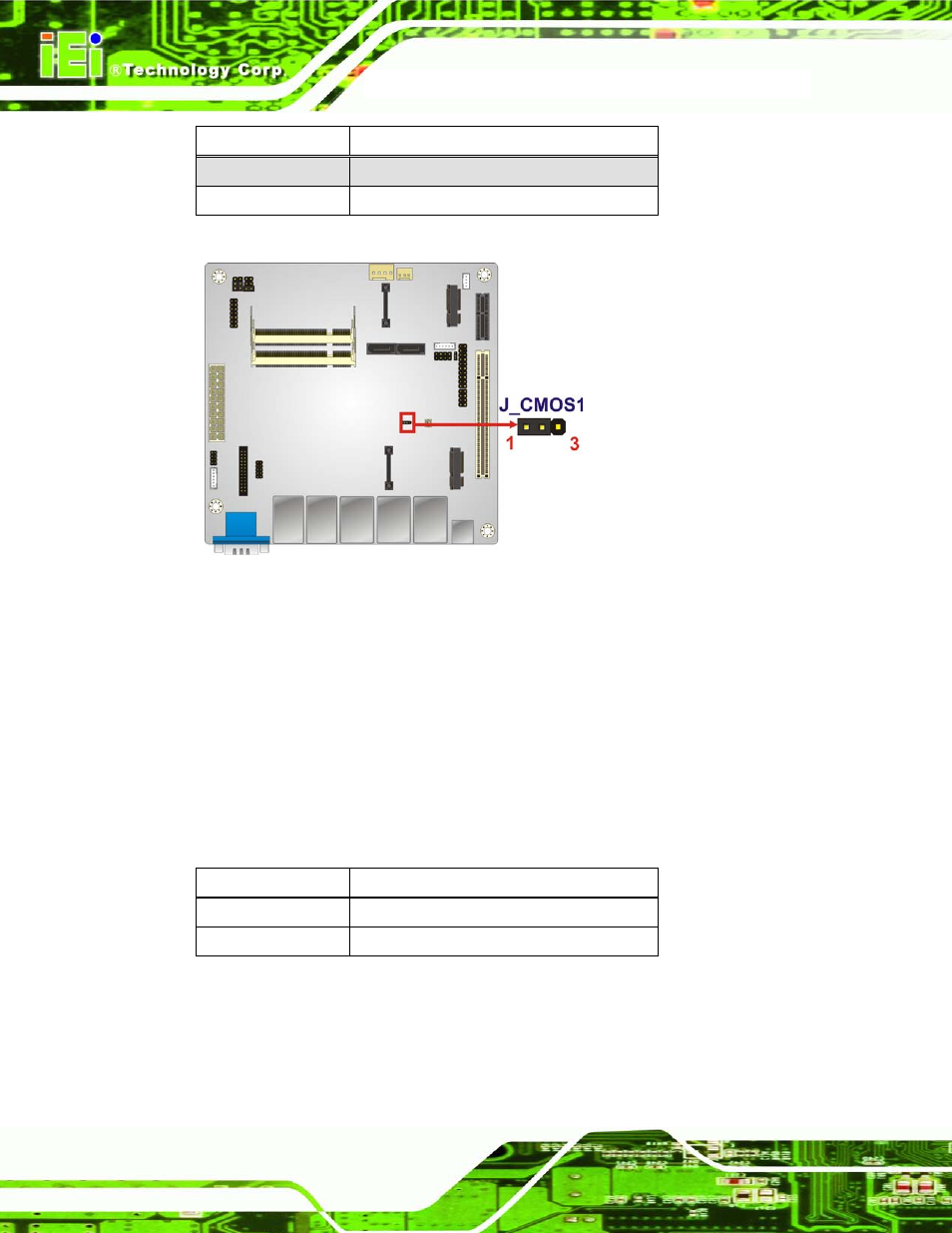

Figure 4-2: Clear BIOS Jumper Location

4.4.2 US B 6, 7 power J umper

J umper L abel:

J 66

J umper T ype:

3-pin header

J umper S ettings :

See Table 4-3

J umper L ocation:

See Figure 4-3

Move the jumper to adjust USB input voltage..

Pin

Description

Short 1-2

VCC5DUAL

Short 2-3

VCC3DUAL

Table 4-3: USB6, 7 power Jumper Settings
