P age 32

K INO-P V-D5253-D4253 Mini-ITX Motherboard

The PCIe Mini card slot is for installing PCIe Mini expansion cards.

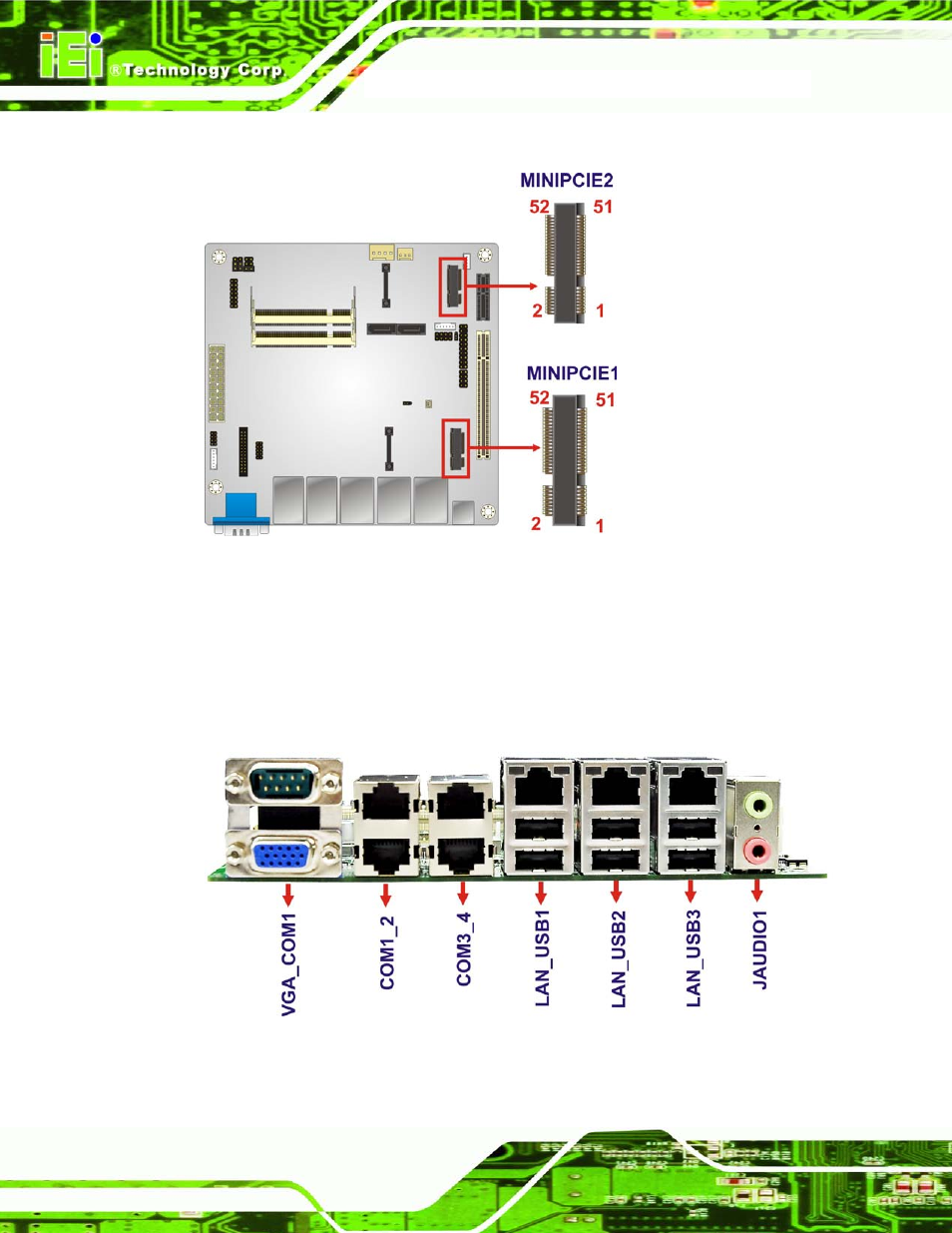

Figure 3-17: PCIe Mini Card Slot Location


3.3 E xternal P eripheral Interface C onnector P anel

The figure below shows the external peripheral interface connector (EPIC) panel. The

EPIC panel consists of the following:

Figure 3-18: External Peripheral Interface Connector
