P age 46

K INO-P V-D5253-D4253 Mini-ITX Motherboard

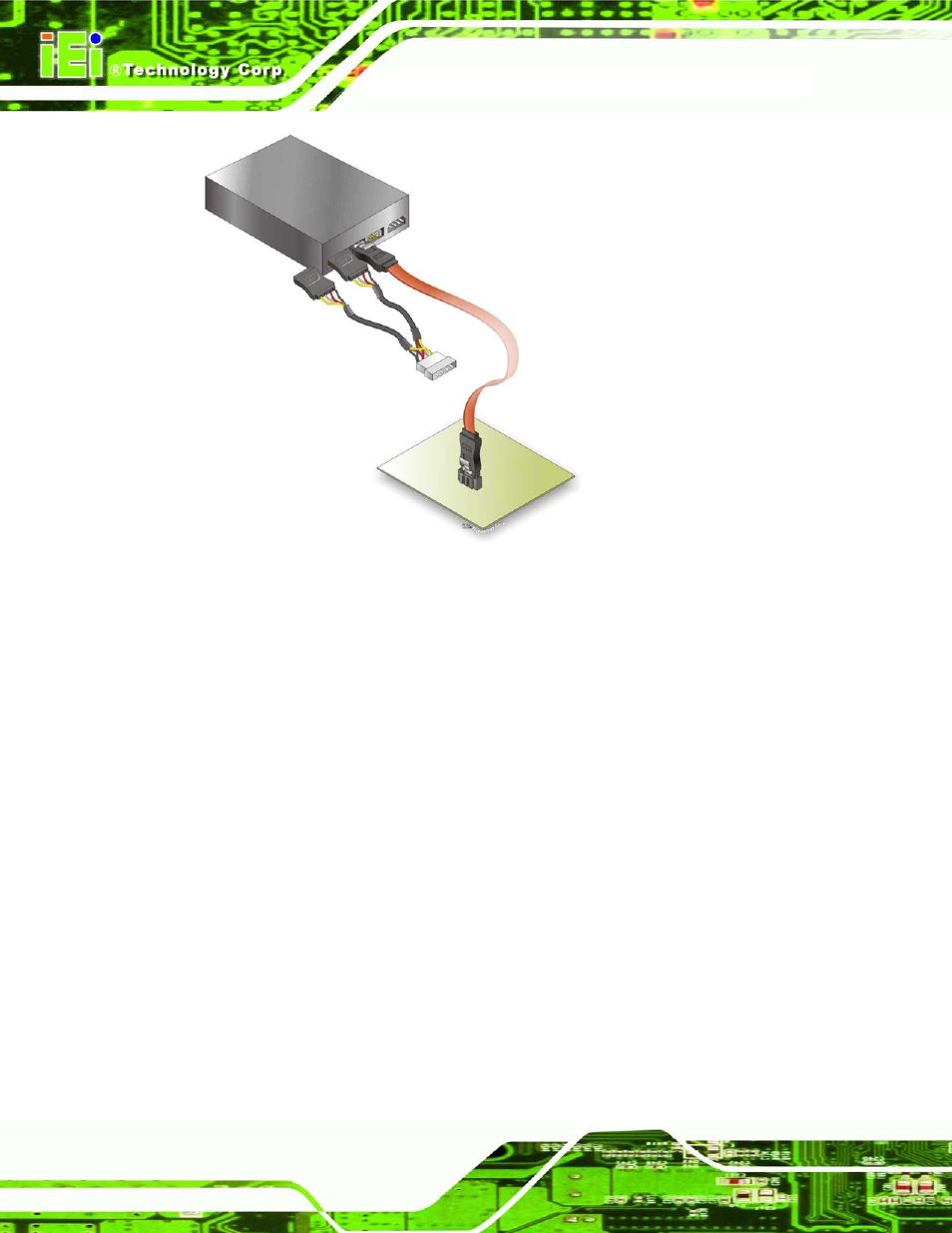

Figure 4-6: SATA Power Drive Connection

4.5.2 S ingle R S -232 C able (w/o B racket)

The single RS-232 cable consists of one serial port connector attached to a serial

communications cable that is then attached to a D-sub 9 male connector. To install the

single RS-232 cable, please follow the steps below.

Locate the connector. The location of the RS-232 connector is shown in Chapter 3.

Insert the cable connector. Insert the connector into the serial port box header. See

Figure 4-7. A key on the front of the cable connectors ensures the connector

can only be installed in one direction.
