K INO-P V-D5253-D4253 Mini-ITX Motherboard
C N P inouts :
See Table 3-14
This connector secures the system on bootup.

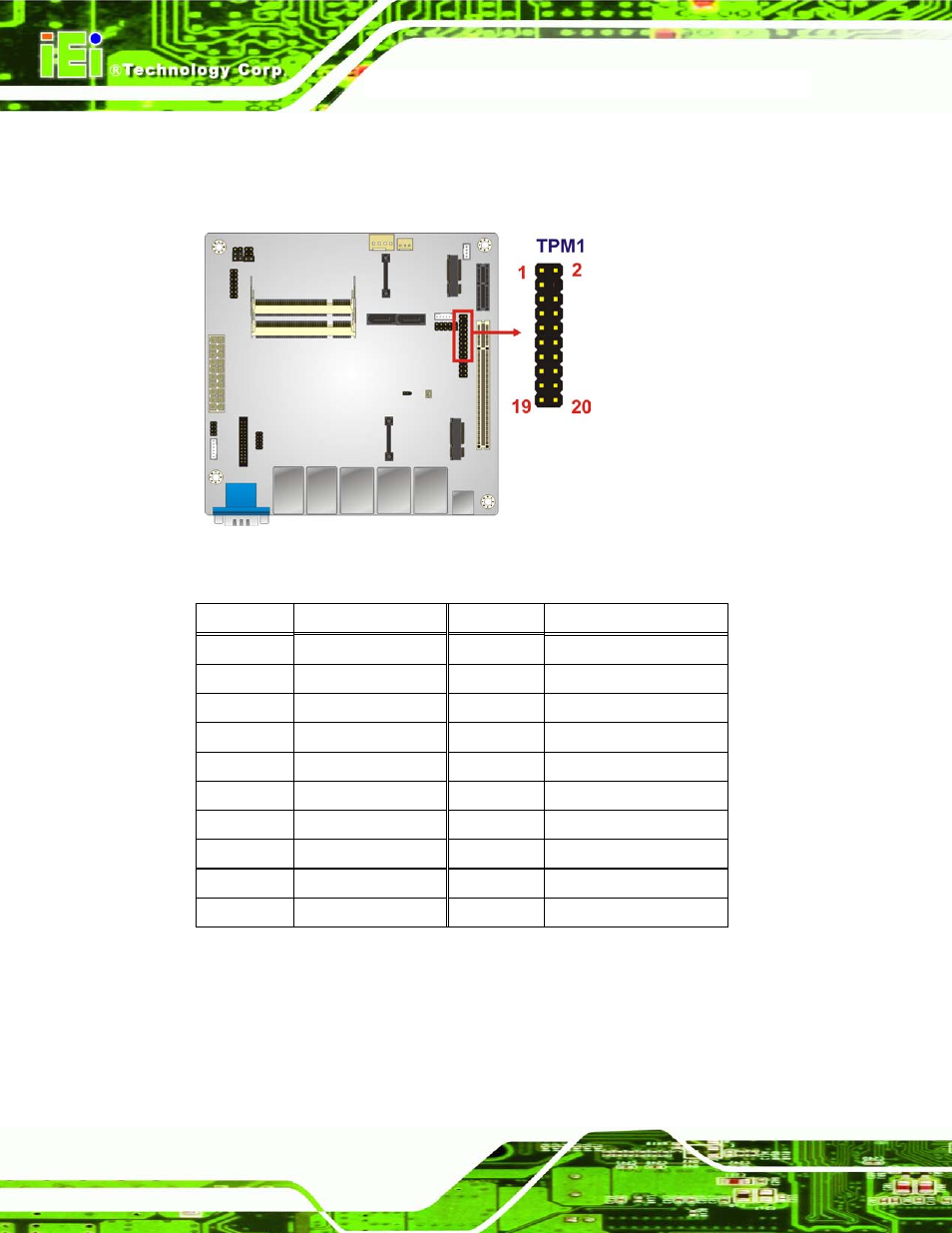

Figure 3-15: TPM Connector
Pin Description Pin Description
1 TPM_CLK 2 GND
3 LPC_FRAME# 4 NC
5 PLT_RST# 6 5V
7 LPC_AD3 8 LPC_AD2
9 3.3V 10 LPC_AD1
11 LPC_AD0 12 GND
13 SMBCLK 14 SMBDATA
15 3.3VSB 16 INT_SERIRQ
17 GND 18 PM_CLKRUN
19 3.3V 20 L_DRQ#
Table 3-14: TPM Connector Pinouts
3.2.15 K eyboard/Mous e Wafer
C N L abel: K B _MS 1
C N T ype: 6-pin header
