P age 26
K INO-P V-D5253-D4253 Mini-ITX Motherboard
Pin Description Pin Description
Table 3-9: RS-232/422/485 Serial Port Connector Pinouts
3.2.10 S ATA Drive C onnectors
C N L abel: S AT A1, S AT A3
C N T ype:
7-pin SATA drive connectors
C N L ocation: See Figure 3-11
C N P inouts :
See Table 3-10
The SATA drive connectors can be connected to SATA 3Gb/s drives.

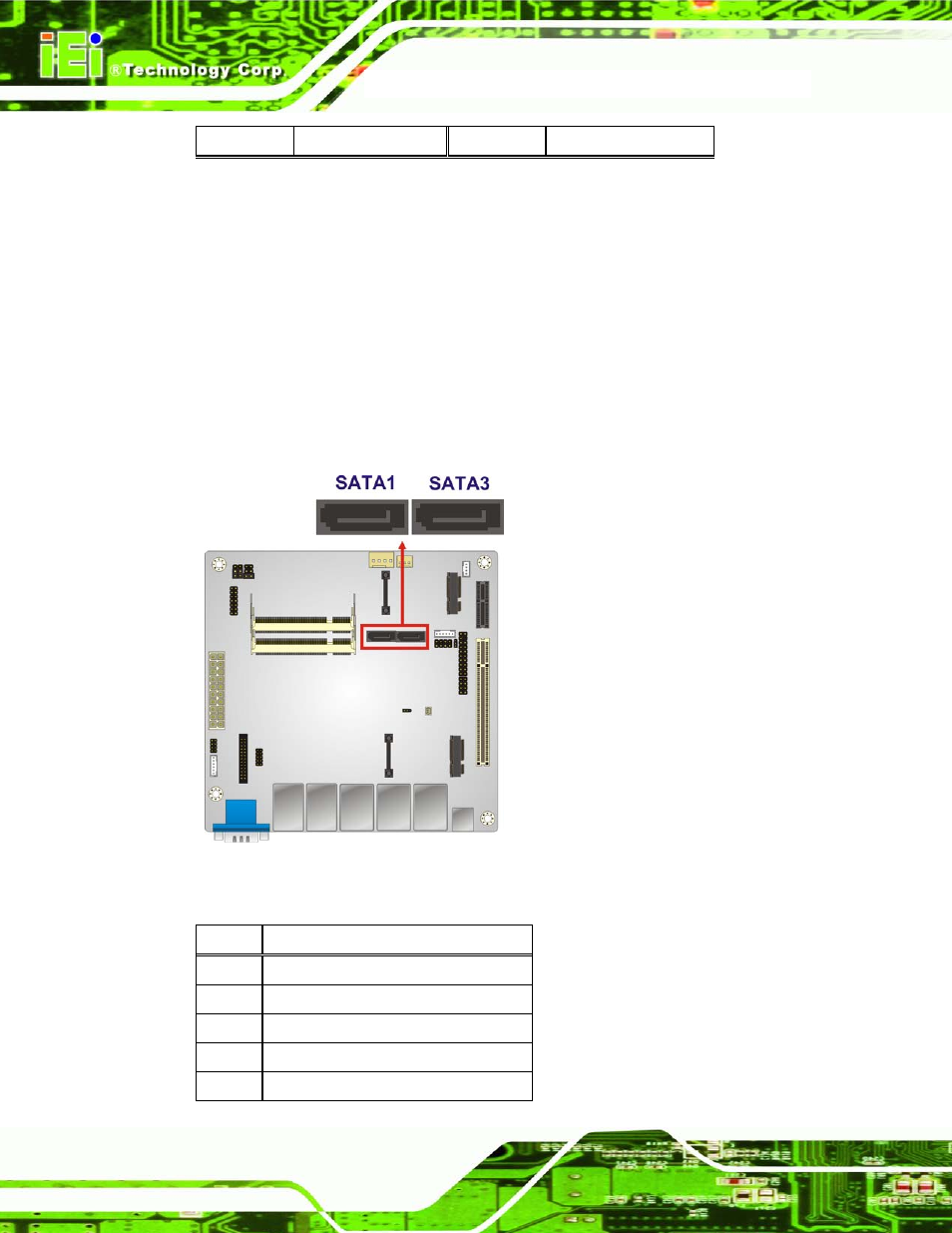

Figure 3-11: SATA Drive Connector Location
PIN NO. DESCRIPTION
1 GND
2 TX+
3 TX-
4 GND
5 RX-
