K INO-P V-D5253-D4253 Mini-ITX Motherboard

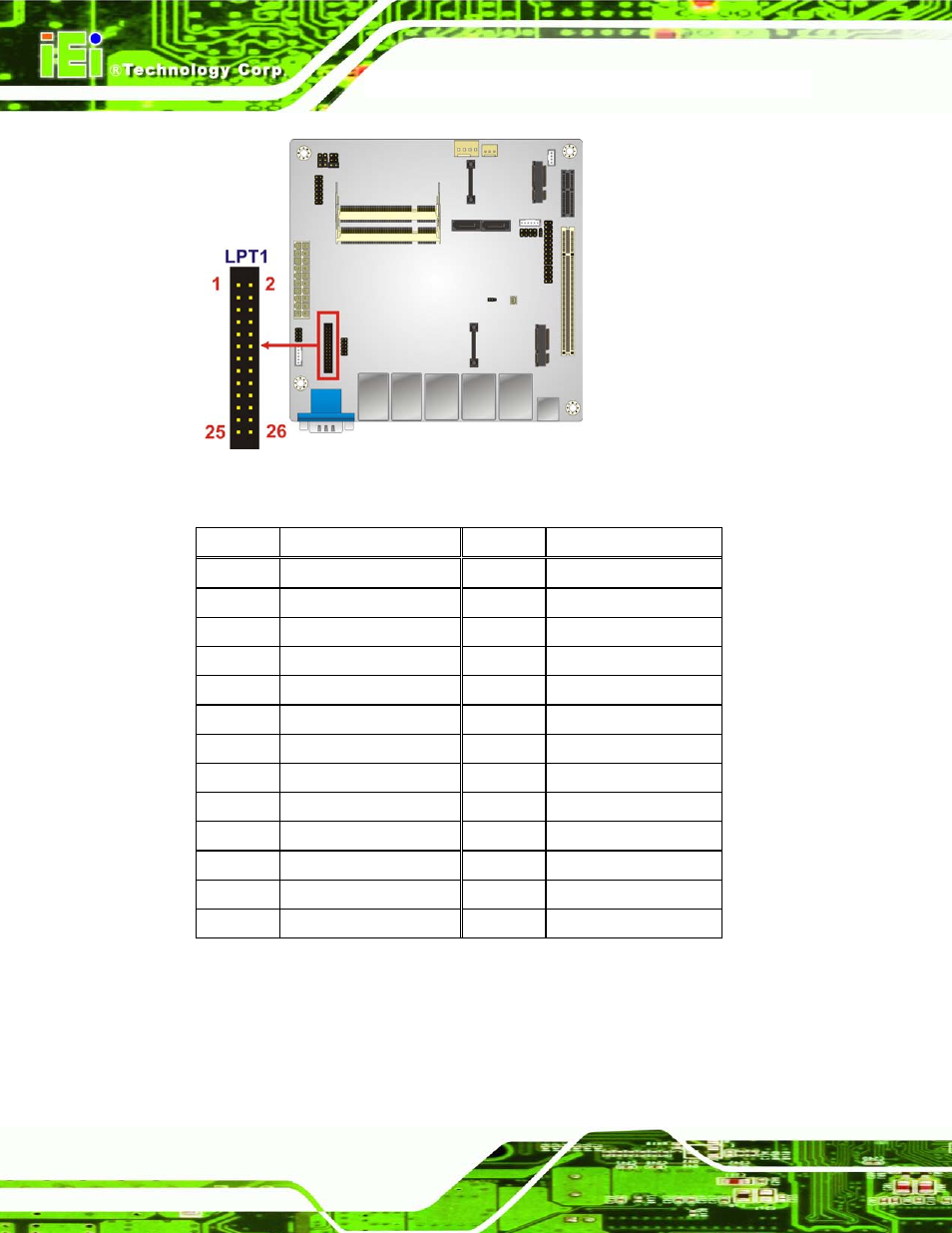

Figure 3-9: Parallel Port Connector Location
Pin Description Pin Description
1 STB- 2 AFD-
3 PD0 4 ERR-
5 PD1 6 INIT
7 PD2 8 SLIN-
9 PD3 10 GND
11 PD4 12 GND
13 PD5 14 GND
15 PD6 16 GND
17 PD7 18 GND
19 ACK- 20 GND
21 BUSY 22 GND
23 PE 24 GND
25 SLCT 26 NC
Table 3-8: Parallel Port Connector Pinouts
3.2.9 R S -232/422/485 S erial P ort C onnector
C N L abel: C OM6
