P age 33
K INO-P V-D5253-D4253 Mini-ITX Motherboard
3.3.1 Audio C onnector
C N L abel: J AUDIO1
C N T ype:
Audio jacks
C N L ocation: See Figure 3-19
The audio jacks connect to external audio devices.
 Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
 Microphone (Pink): Connects a microphone.

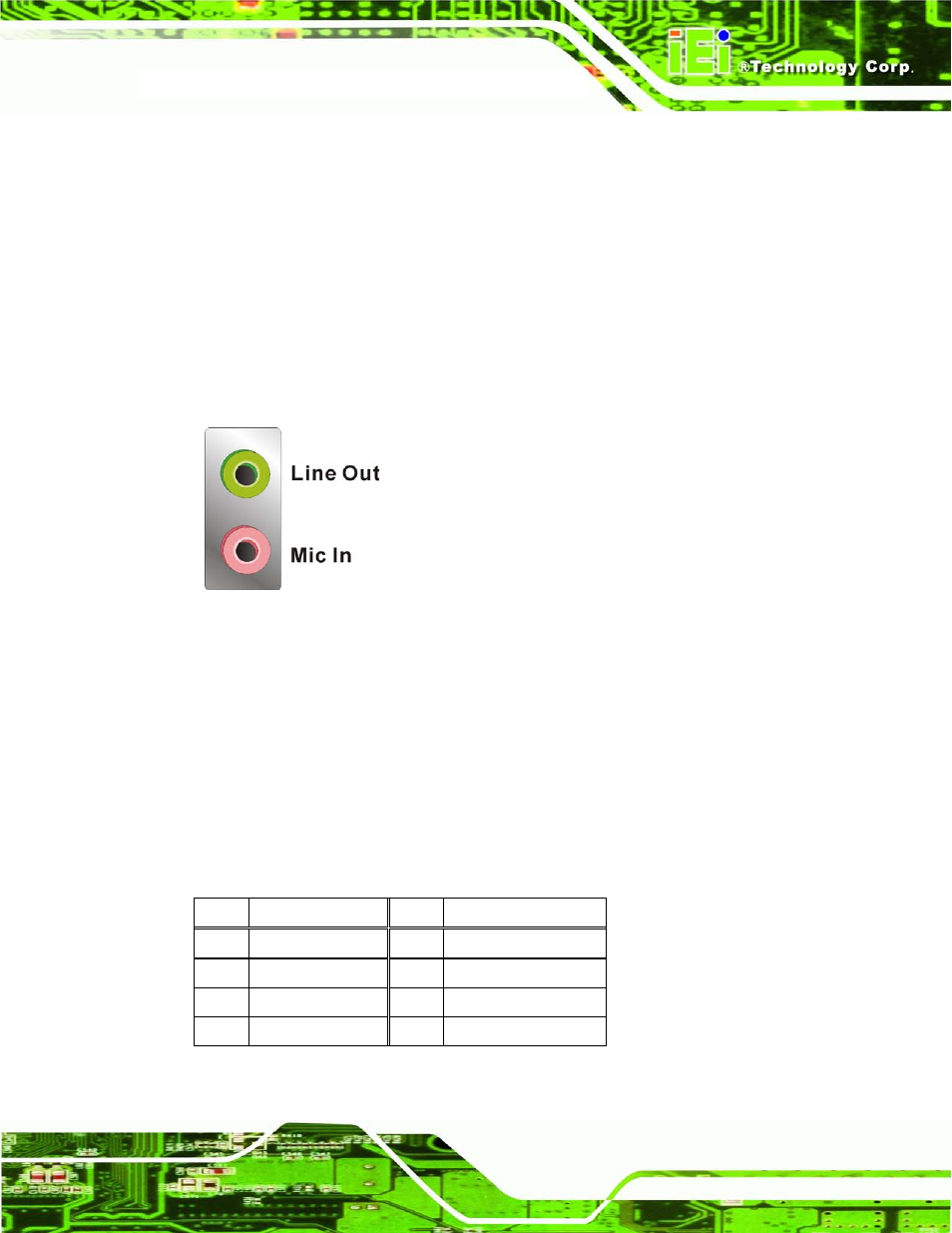

Figure 3-19: Audio Connector
3.3.2 L AN C onnector
C N L abel: L AN_US B 1, L AN_US B 2, L AN_US B 3
C N T ype:
RJ-45
C N L ocation: See Figure 3-18
C N P inouts :
See Table 3-16
The LAN connector connects to a local network.
Pin Description Pin Description
1 MDIA3- 5 MDIA1+
2 MDIA3+ 6 MDIA2+-
3 MDIA2- 7 MDIA0-
4 MDIA1- 8 MDIA0+
Table 3-16: LAN Pinouts
