K INO-P V-D5253-D4253 Mini-ITX Motherboard
1.1 Introduction

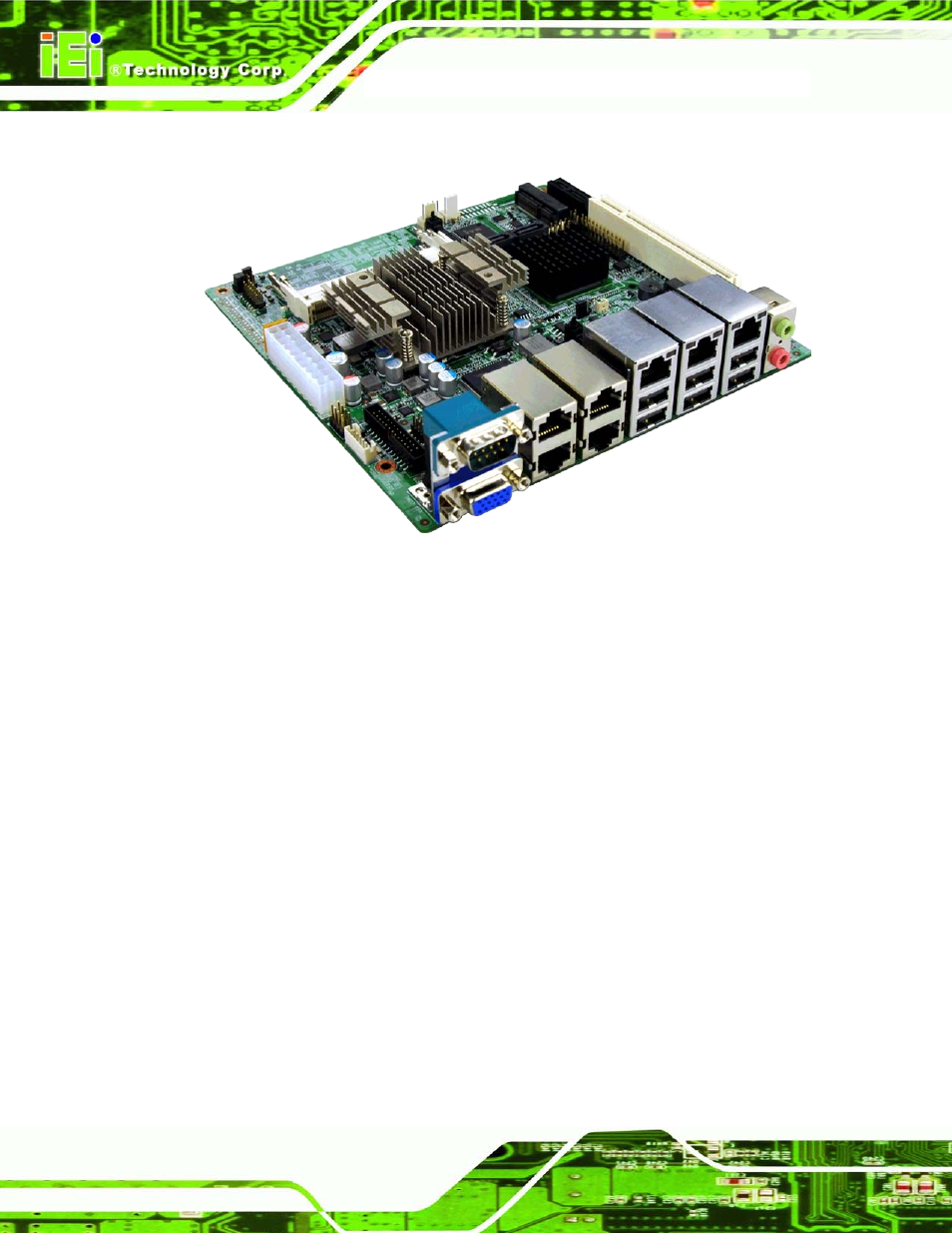

Figure 1-1: KINO-PV-D5253/D4253
The KINO-PV-D5253/D4253 Mini-ITX motherboard is a Intel® Atom™ processor D525 or
D425 platform. Supports two DDR3 SO-DIMMs up to 2.0 GB each (4.0 GB total),
The integrated Intel® ICH8M Chipset supports Three GbE LAN ports through the Realtek
RTL8111E Ethernet controller (with ASF 2.0 support), also supports two SATA 3Gb/s
drives.
The KINO-PV-D5253/D4253 includes one VGA output, Eight USB2.0, two PCIe mini
sockets, one PCI slot, one PCIe x1 slot, one parallel port, audio jacks provides flexible
expansion options. Serial device connectivity is provided by four RS-232 serial ports
(RJ-45), one RS-232 serial ports (DB-9), and one internal RS-232/422/485 connectors.
1.2 B enefits
Some of the KINO-PV-D5253/D4253 motherboard benefits include:
 Powerful graphics
 Staying connected with both wired LAN connections
 Speedy running of multiple programs and applications
