K INO-P V-D5253-D4253 Mini-ITX Motherboard

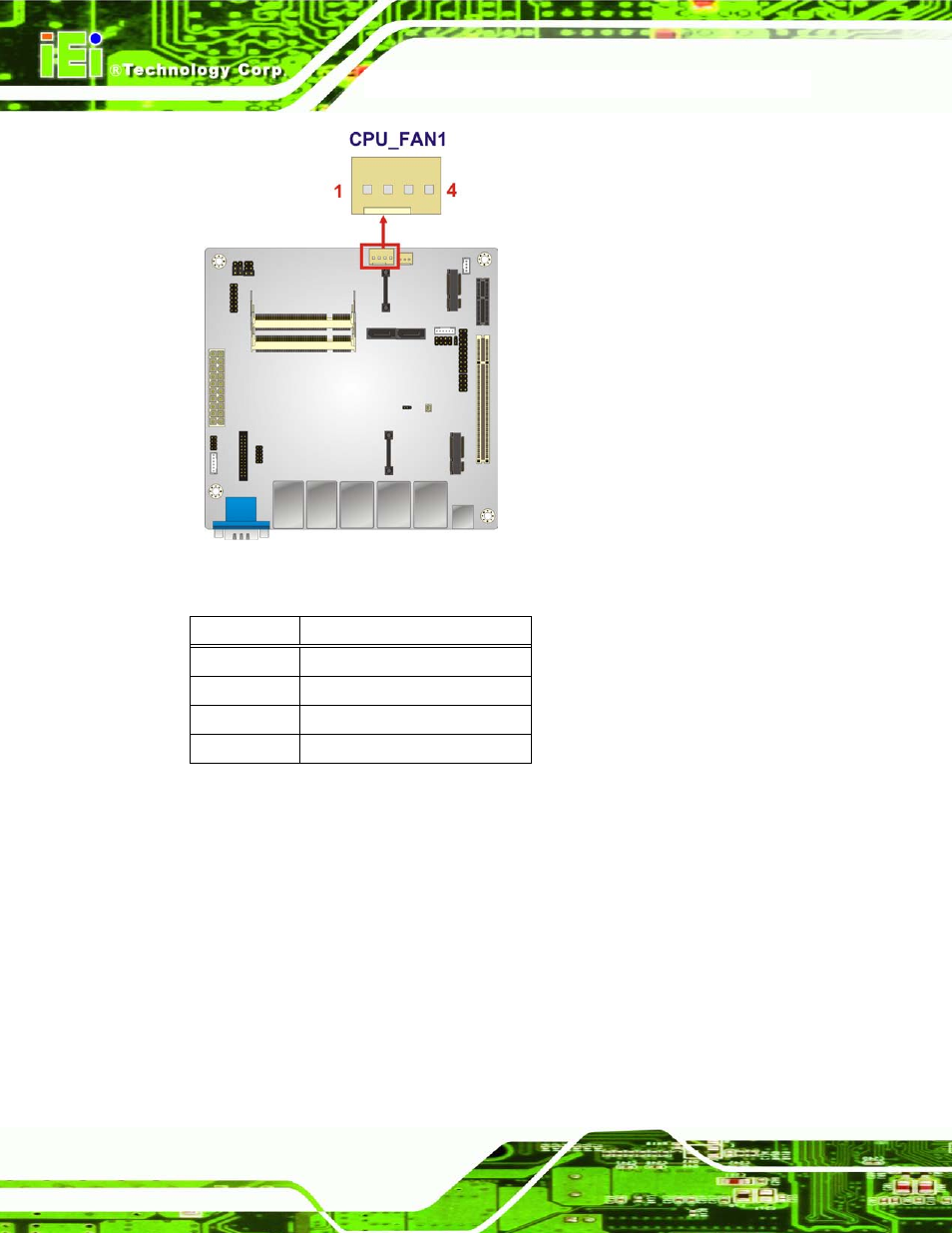

Figure 3-3: CPU Fan Connector Location
Pin Description
1 GND
2 +12 V
3 Fan In
4 Fan Control
Table 3-4: CPU Fan Connector Pinouts
3.2.3 S ys tem F an C onnector
C N L abel: S Y S _F AN1
C N T ype: 3-pin wafer
C N L ocation:
See Figure 3-4
C N P inouts :
See Table 3-5
The fan connector attaches to a system cooling fan.
