P age 48
K INO-P V-D5253-D4253 Mini-ITX Motherboard
Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio jacks. If
the plugs on your speakers are different, an adapter will need to be used to plug
them into the audio jacks.
 Line Out port (Lime): Connects to a headphone or a speaker.
 Microphone (Pink): Connects to a microphone.

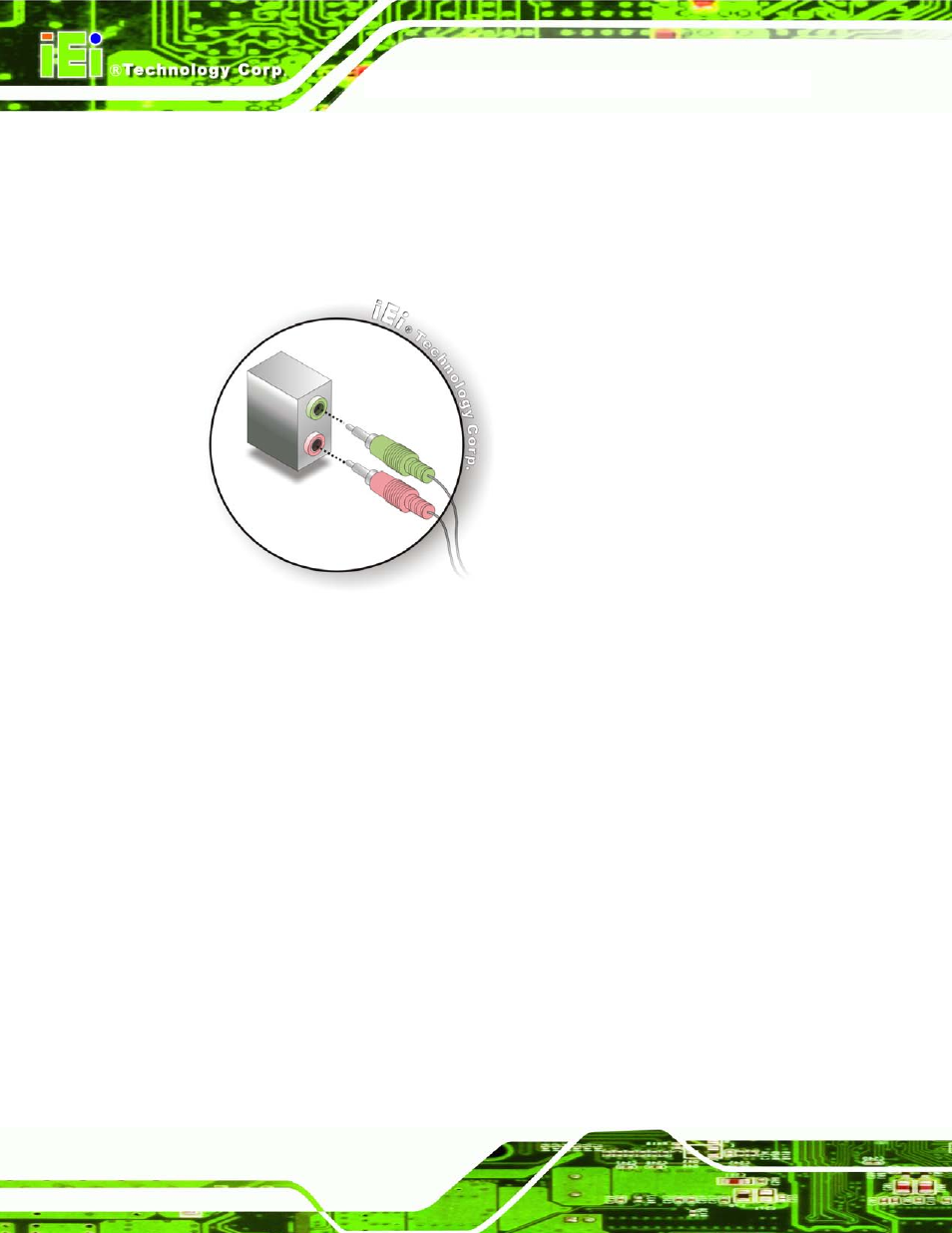

Figure 4-8: Audio Connector
Check audio clarity. Check that the sound is coming through the right speakers by
adjusting the balance front to rear and left to right.
4.6.2 L AN C onnection
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Locate the RJ-45 connectors. The locations of the USB connectors are shown in
Chapter 4.
Align the connectors. Align the RJ-45 connector on the LAN cable with one of the RJ-45
connectors on the KINO-PV-D5253/D4253. See Figure 4-9.
