P age 44

K INO-P V-D5253-D4253 Mini-ITX Motherboard

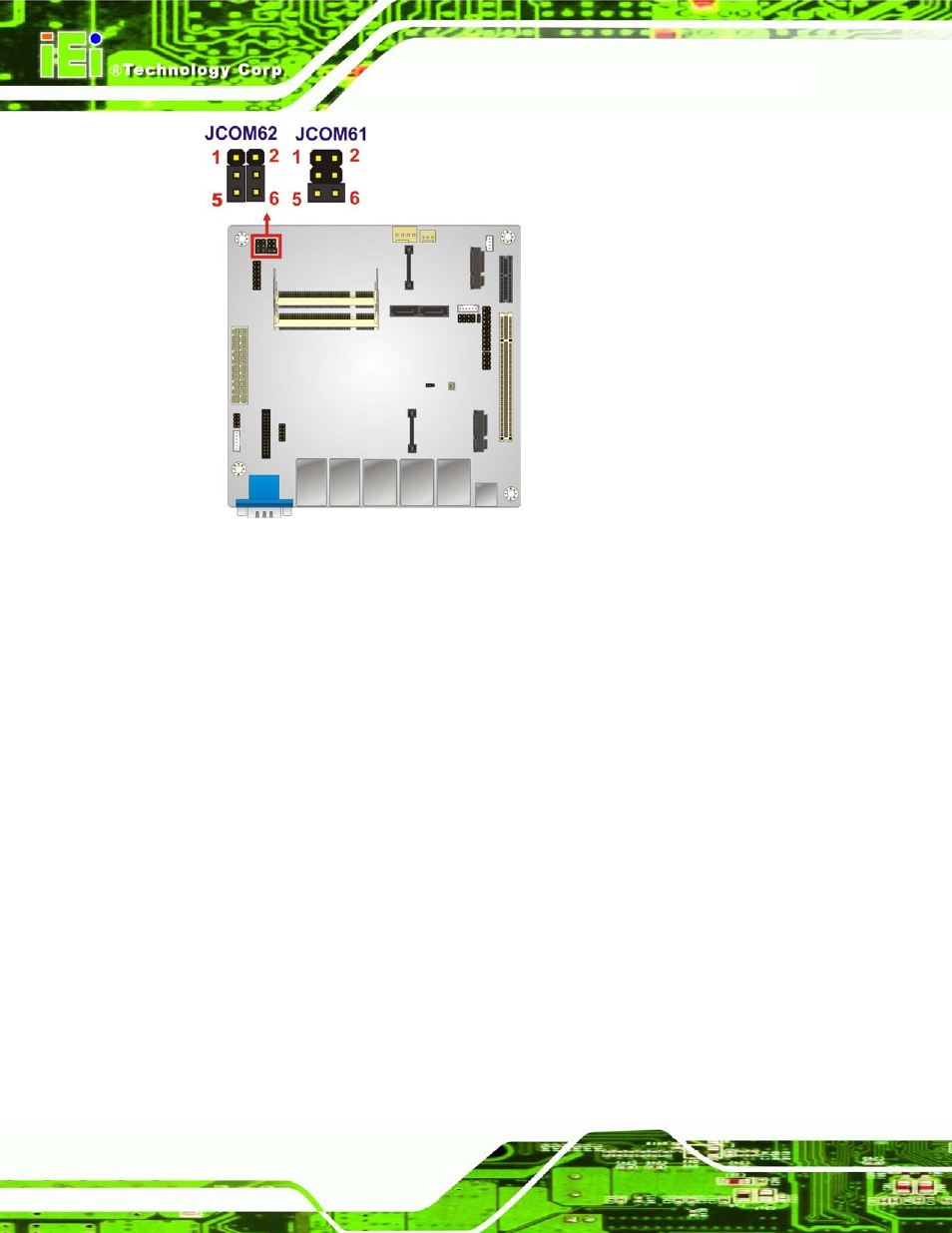

Figure 4-4: COM 6 Function Select Jumper Location

4.5 Internal P eripheral Device C onnections

This section outlines the installation of peripheral devices to the onboard connectors.

4.5.1 S ATA Drive C onnection

The KINO-PV-D5253/D4253 is shipped with one SATA drive cables. To connect the SATA

drives to the connectors, please follow the steps below.

Locate the connectors. The locations of the SATA drive connectors are shown in

Chapter 3.

Insert the cable connector. Press the clip on the connector at the end of the SATA cable

and insert the cable connector into the on-board SATA drive connector. See

Figure 4-5
