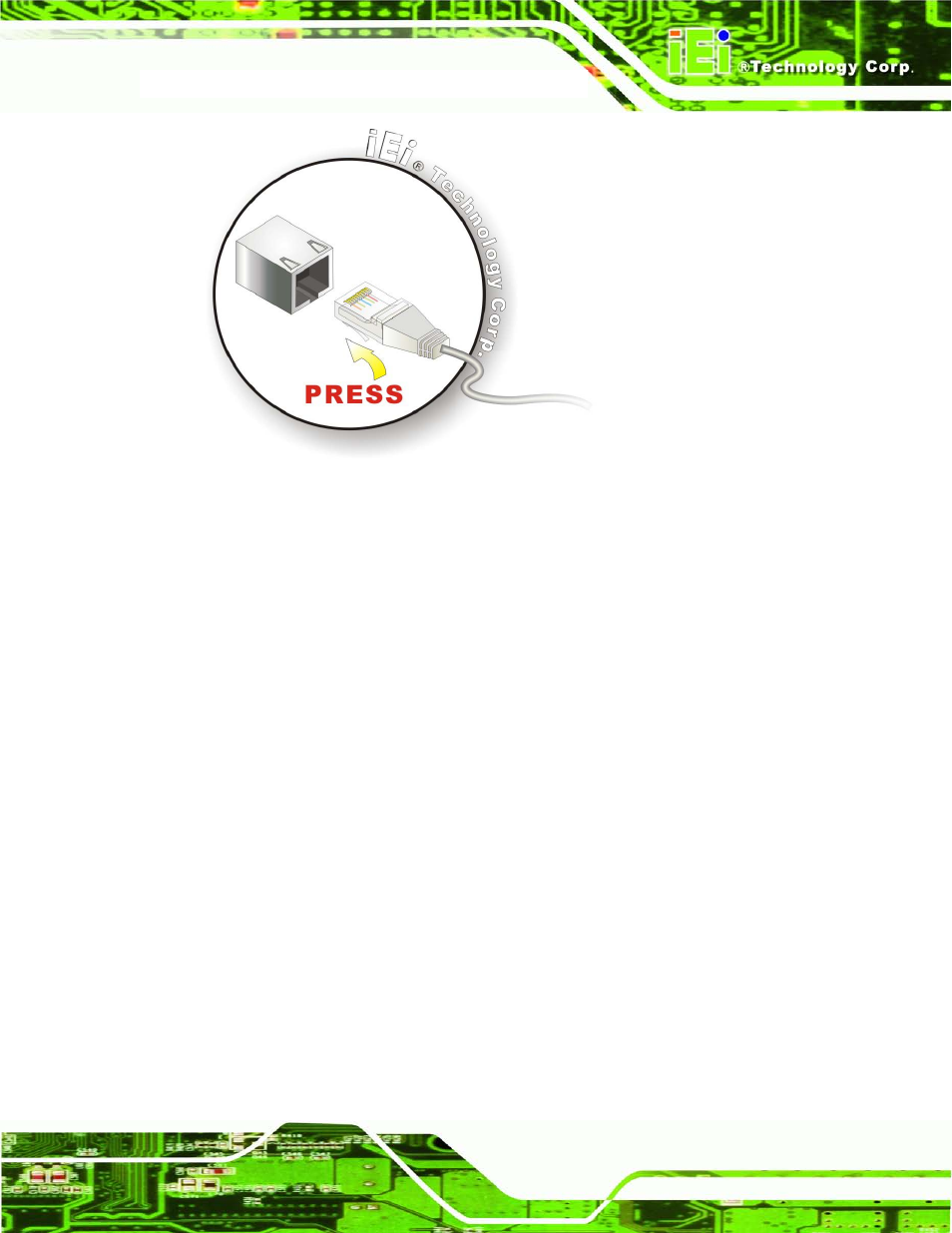

Figure 4-9: LAN Connection

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45

connector into the on-board RJ-45 connector.

4.6.3 S erial Device C onnection

The KINO-PV-D5253/D4253 has three male DB-9 connectors on the external peripheral

interface panel for a serial device. Follow the steps below to connect a serial device to the

KINO-PV-D5253/D4253.

Locate the DB-9 connector. The location of the DB-9 connector is shown in Chapter 3.

Insert the serial connector.

Insert the DB-9 connector of a serial device into the DB-9

connector on the external peripheral interface. See Figure 4-10.
