K INO-P V-D5253-D4253 Mini-ITX Motherboard

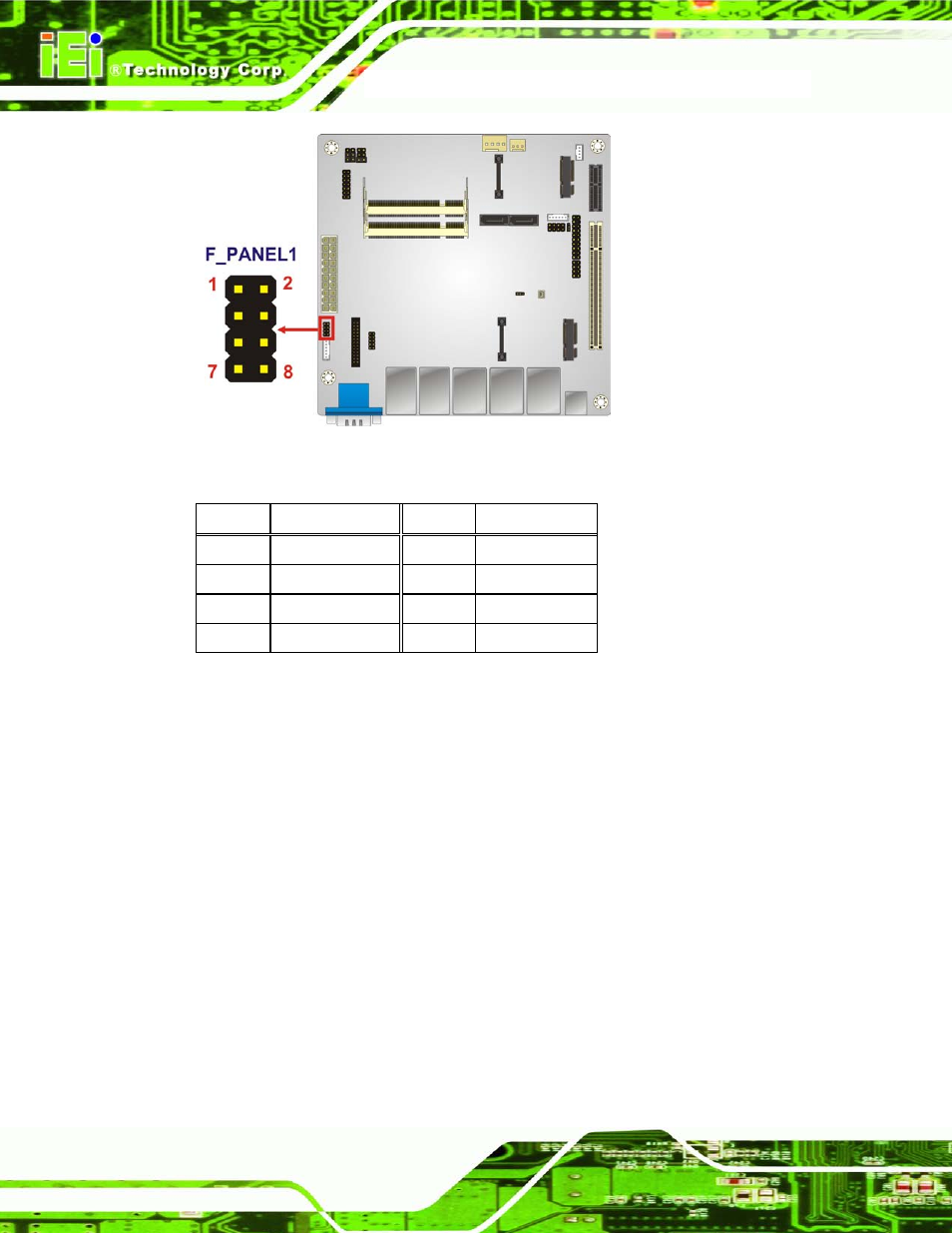

Figure 3-7: Front Panel Connector Location

Pin

Description

Pin

Description

1

PWRBTSW#

2

PWRLED

3

GND

4

GND

5

5V

6

SYS_RST#

7

HDDLED#

8

GND

Table 3-7: Front Panel Connector Pinouts

3.2.7 Memory S lot

C N L abel:

S ODIMM1, S ODIMM2

C N T ype:

SODIMM slot

C N L ocation:

See Figure 3-8

The SODIMM slots are for SODIMM memory modules.
