P age 19

K INO-P V-D5253-D4253 Mini-ITX Motherboard

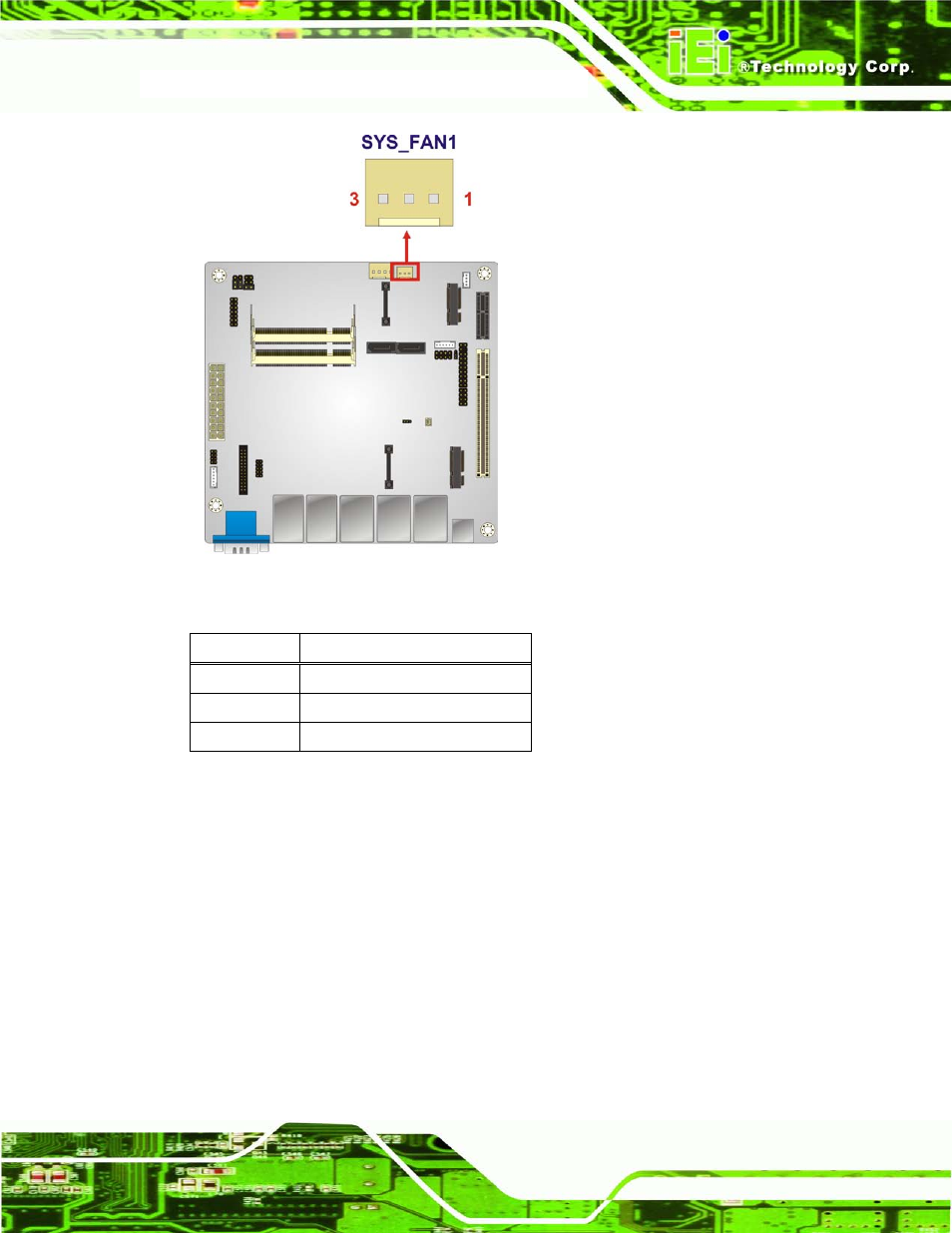

Figure 3-4: System Fan Connector Location

Pin

Description

1

Fan In

2

VCC_FAN

3

GND

Table 3-5: System Fan Connector Pinouts

3.2.4

S tandard ATX power connector

C N L abel:

J ATXP WR 1

C N T ype:

20-pin connector

C N L ocation:

See Figure 3-5

C N P inouts :

See Table 3-6

The standard ATX power input connector provides power to the motherboard.
