P age 27
K INO-P V-D5253-D4253 Mini-ITX Motherboard
6 RX+
7 GND
Table 3-10: SATA Drive Connector Pinouts
3.2.11 S MB us C onnector
C N L abel: C MB 1
C N T ype:
4-pin wafer
C N L ocation: See Figure 3-12
C N P inouts : See Table 3-11
The SMBus (System Management Bus) connector provides low-speed system
management communications.

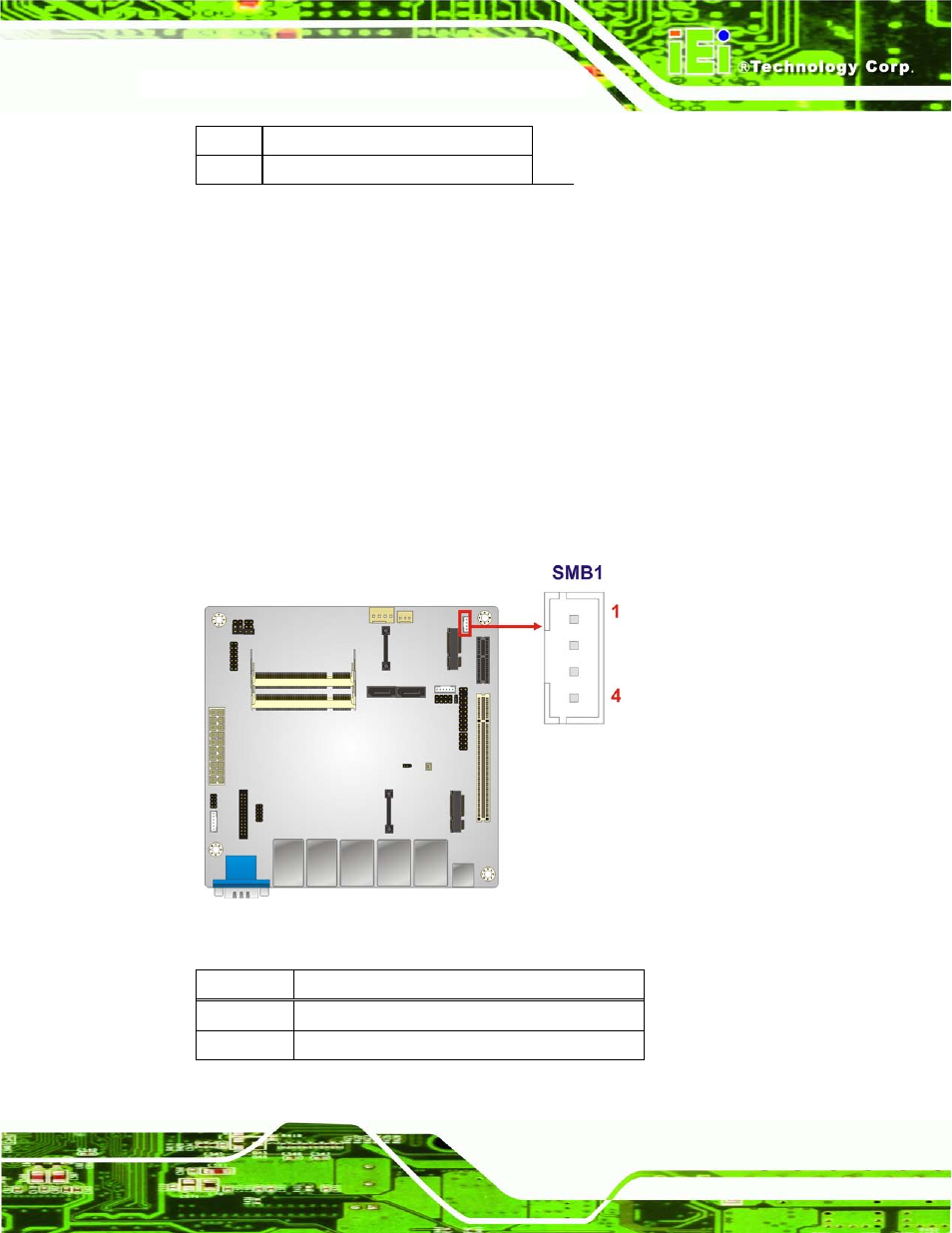

Figure 3-12: SMBus Connector Location
Pin Description
1 GND
2 SMbus_DATA
