P age 47
K INO-P V-D5253-D4253 Mini-ITX Motherboard

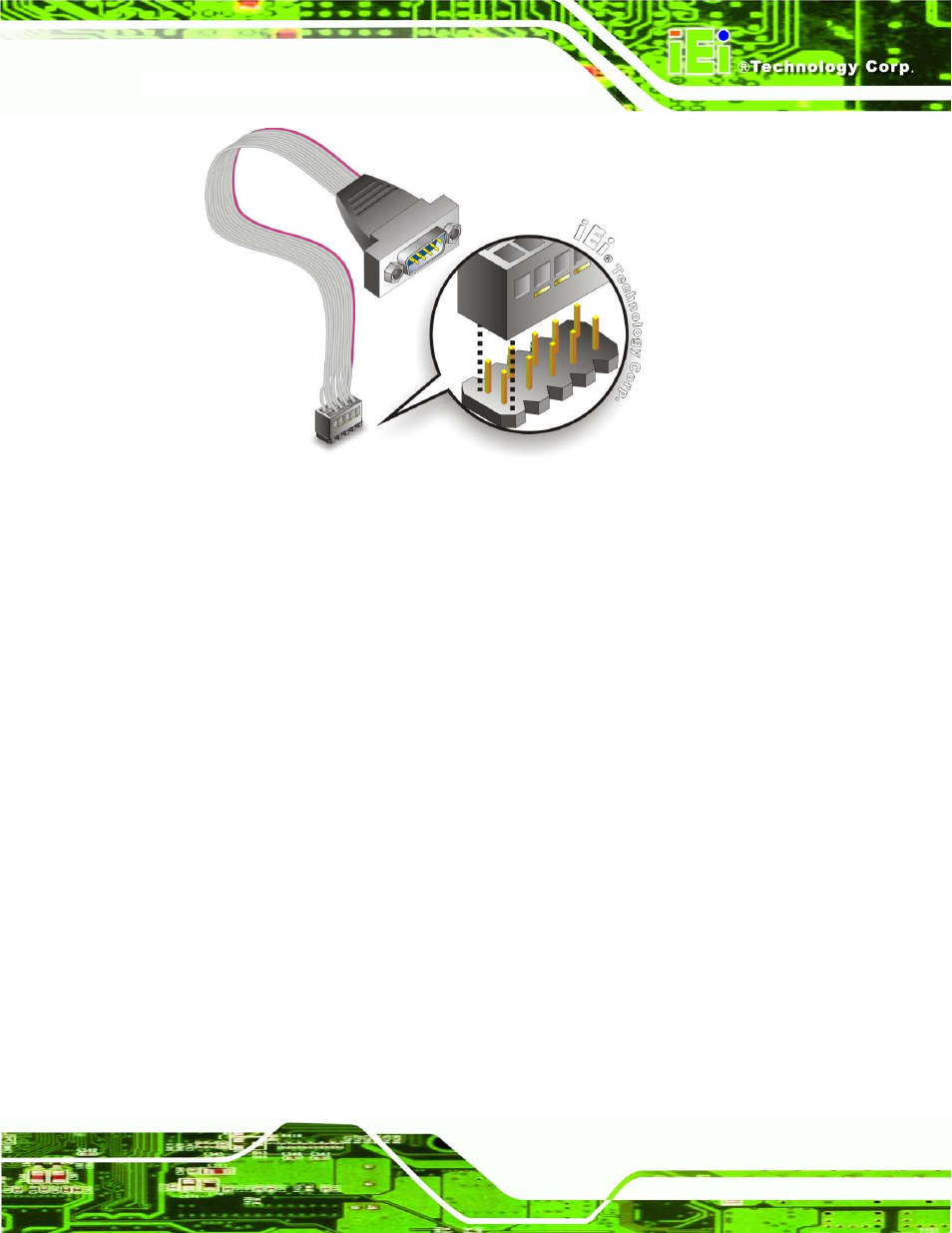

Figure 4-7: Single RS-232 Cable Installation
Secure the bracket. The single RS-232 connector has two retention screws that must be
secured to a chassis or bracket.
Connect the serial device. Once the single RS-232 connector is connected to a chassis
or bracket, a serial communications device can be connected to the system.
4.6 E xternal P eripheral Interface C onnection
This section describes connecting devices to the external connectors on the
KINO-PV-D5253/D4253.
4.6.1 Audio C onnector
The audio jacks on the external audio connector enable the KINO-PV-D5253/D4253 to be
connected to a stereo sound setup. To install the audio devices, follow the steps below.
Identify the audio plugs. The plugs on your home theater system or speakers may not
match the colors on the rear panel. If audio plugs are plugged into the wrong
jacks, sound quality will be very bad.
