P age 4

K INO-P V-D5253-D4253 Mini-ITX Motherboard

1.5 Dimens ions

The main dimensions of the KINO-PV-D5253/D4253 are shown in the diagram below.

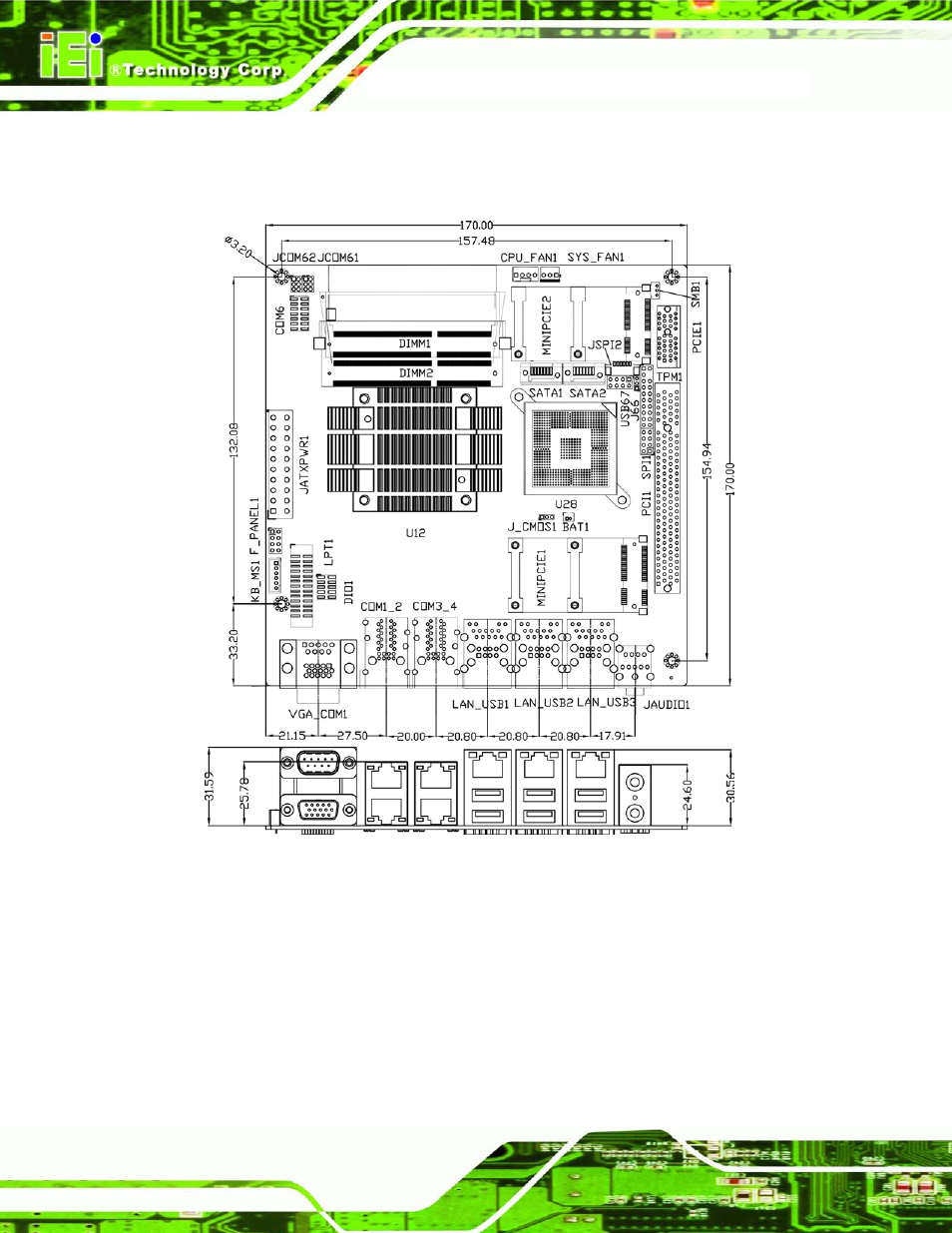

Figure 1-3: Dimensions (mm)
