K INO-P V-D5253-D4253 Mini-ITX Motherboard
4.3 B as ic Ins tallation
This section outlines the parts that must be installed for the system to function correctly.
4.3.1 S O-DIMM Ins tallation
To install an SO-DIMM, please follow the steps below and refer to Figure 4-1.

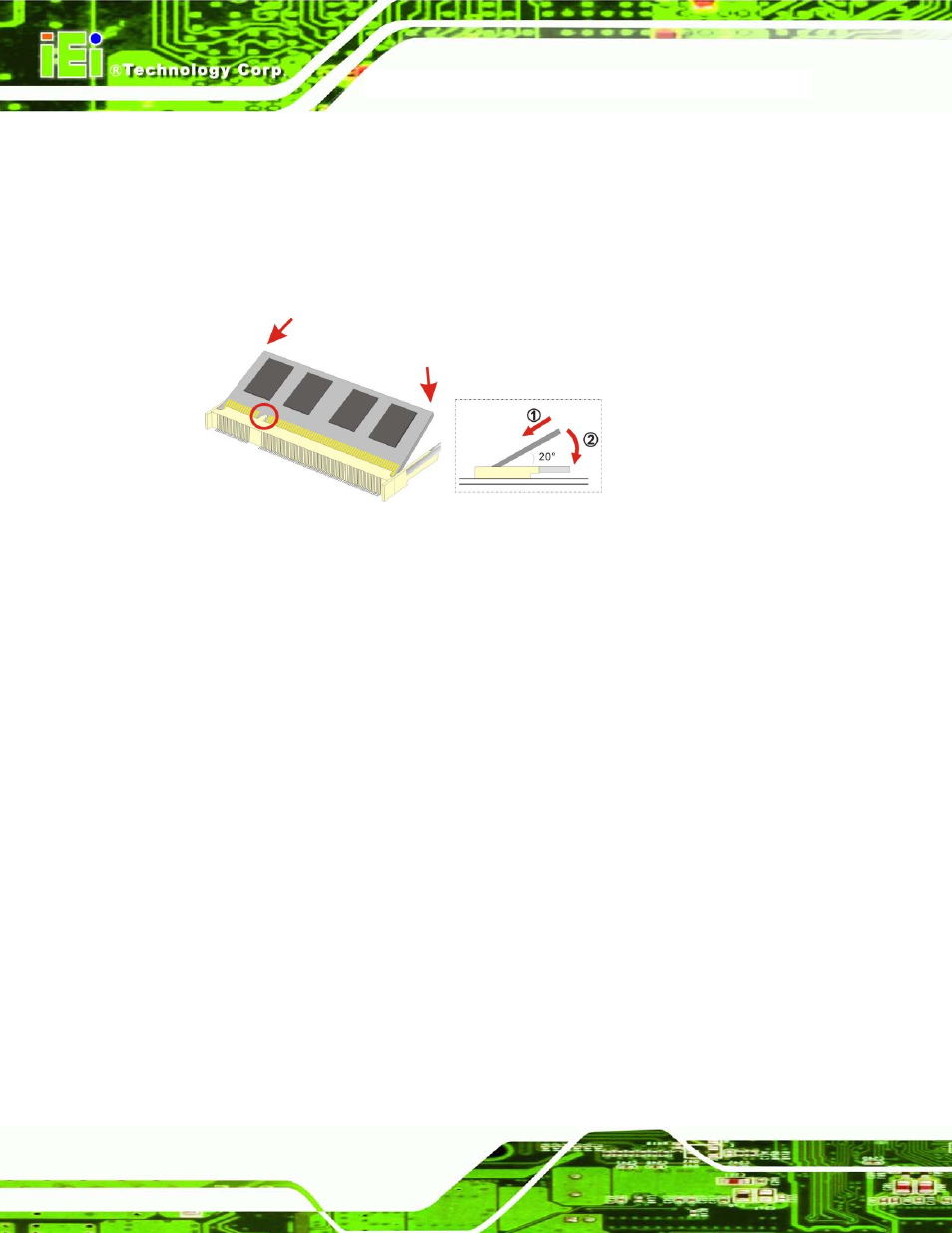

Figure 4-1: SO-DIMM Installation
Locate the SO-DIMM socket. Place the board on an anti-static mat.
Align the SO-DIMM with the socket. Align the notch on the memory with the notch on
the memory socket.
Insert the SO-DIMM. Push the memory in at a 20º angle. (See Figure 4-1)
Seat the SO-DIMM. Gently push downwards and the arms clip into place. (See
Figure 4-1)
4.3.2 Motherboard Ins tallation
To install the KINO-G410 motherboard into the chassis please refer to the reference
material that came with the chassis.
