P age 14

K INO-P V-D5253-D4253 Mini-ITX Motherboard

3.1 P eripheral Interface C onnectors

This chapter details all the jumpers and connectors.

3.1.1 L ayout

The figure below shows all the connectors and jumpers.

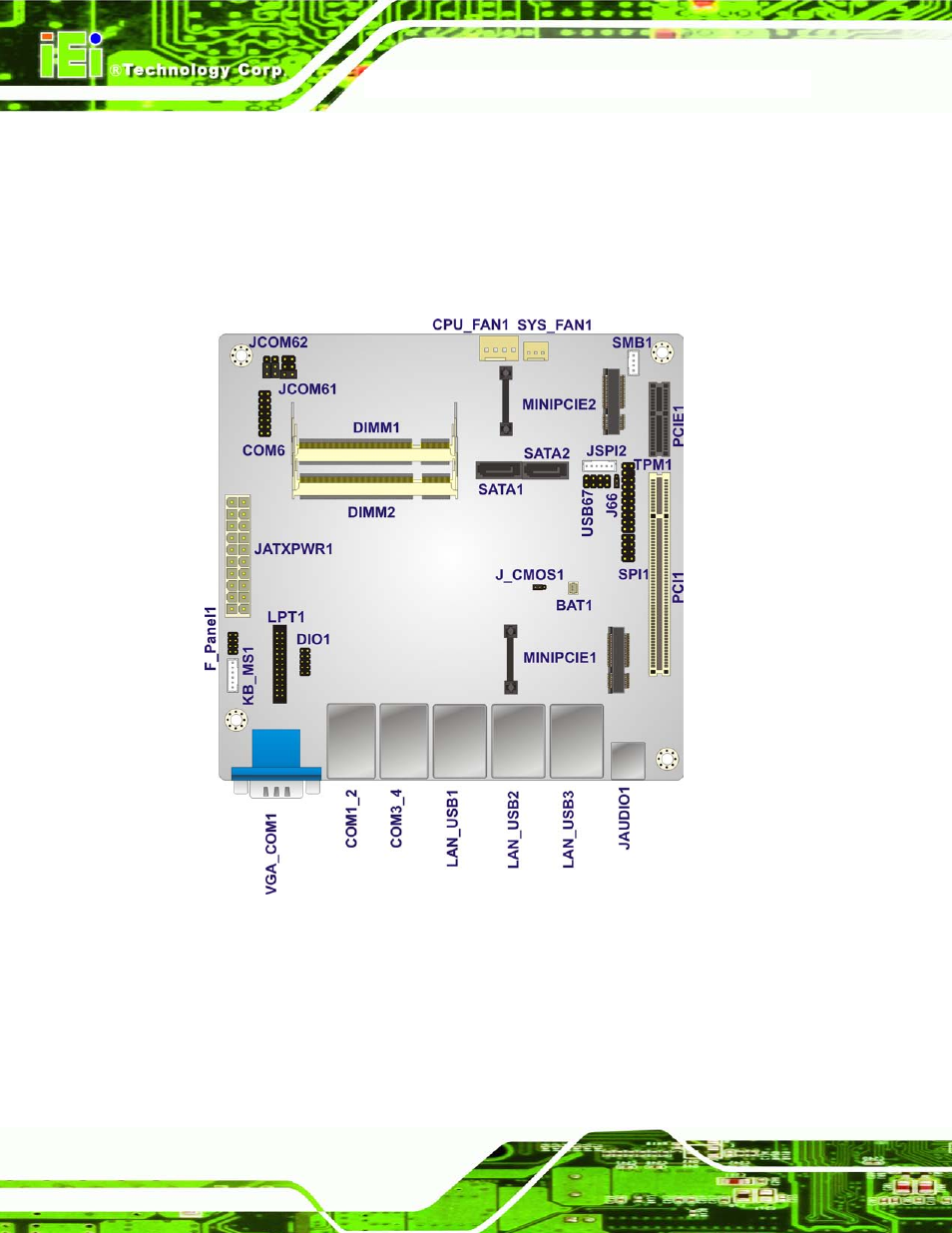

Figure 3-1: Connectors and Jumpers

3.1.2 P eripheral Interface C onnectors

The table below lists all the connectors on the board.
