KINO-HM551

Page 55

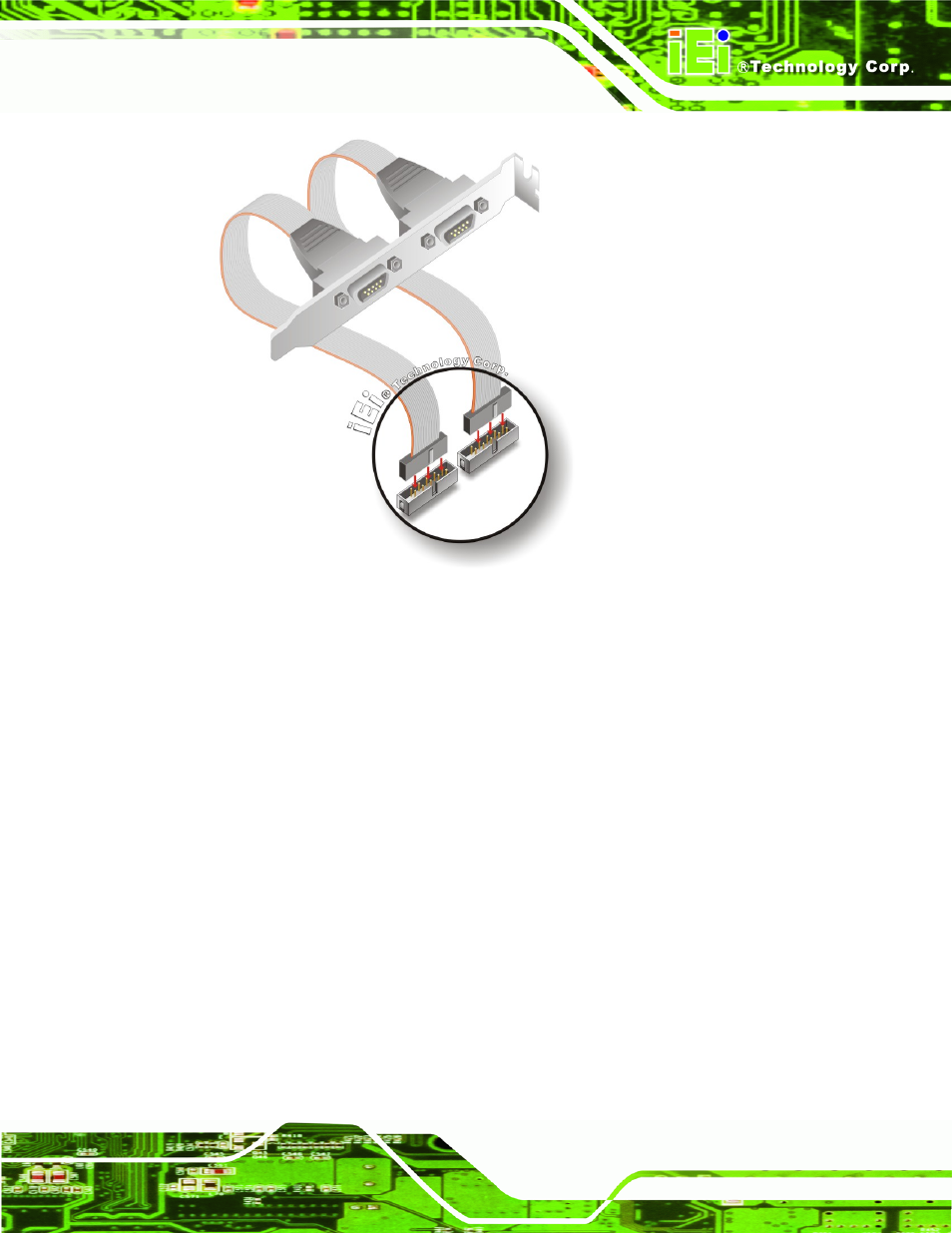

Figure 4-12: Dual RS-232 Cable Installation

Secure the bracket. The dual RS-232 connector has two D-sub 9 male connectors

secured on a bracket. To secure the bracket to the chassis please refer to the reference

material that came with the chassis.

4.7.2 SATA Drive Connection

The KINO-HM551 is shipped with two SATA drive cables and one SATA drive power

cable. To connect the SATA drives to the connectors, please follow the steps below.

Step 7:

Locate the connectors. The locations of the SATA drive connectors are shown

in Chapter 3.

Step 8:

Insert the cable connector. Press the clip on the connector at the end of the

SATA cable and insert the cable connector into the on-board SATA drive

connector.
