KINO-HM551

Page 33

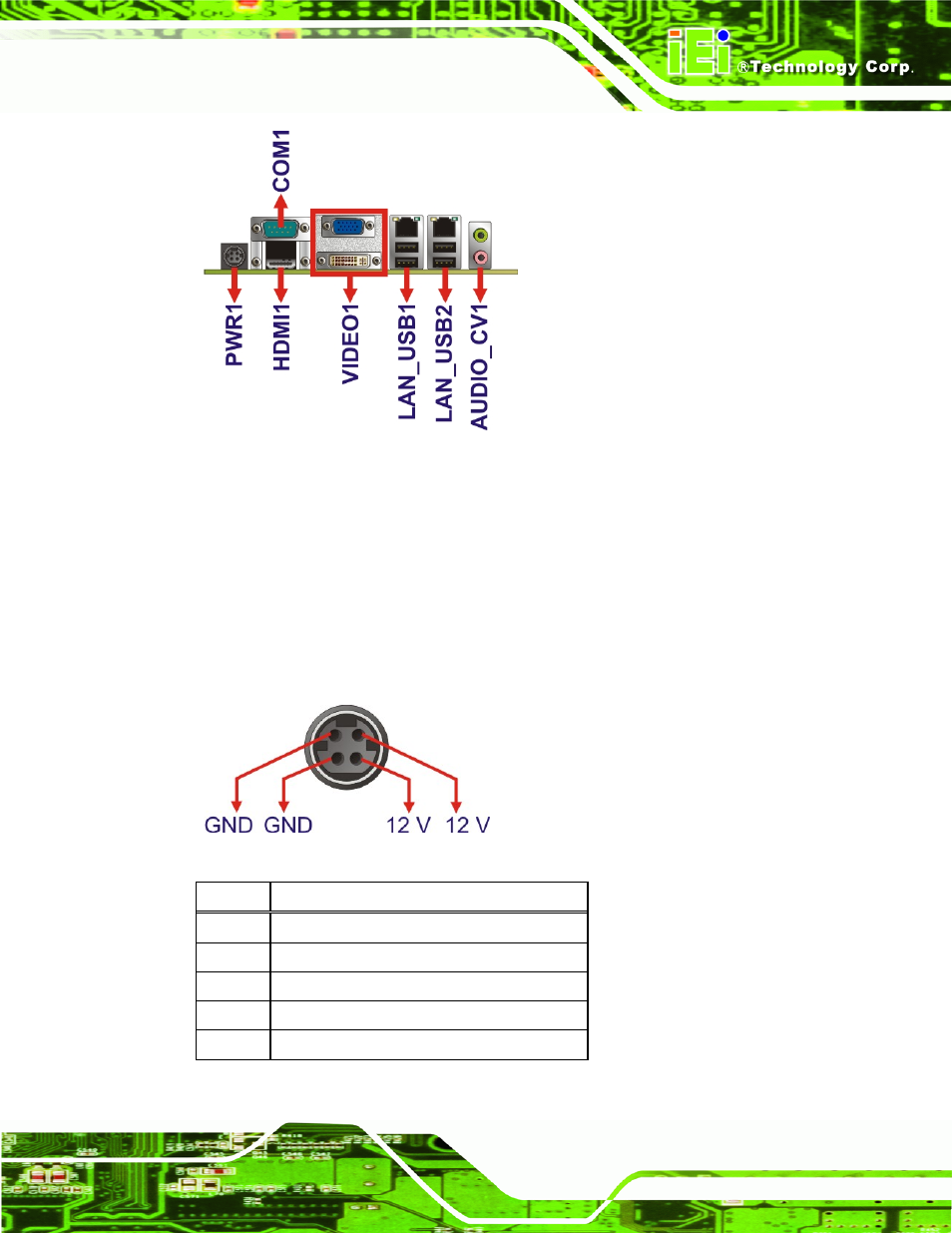

Figure 3-22: KINO-HM551 External Peripheral Interface Connector

3.3.1 Adapter Connector

CN Label:

PWR1

CN Type:

DC-IN

CN Location:

See

6

Figure 3-23

CN Pinouts:

See

6

Table 3-23

Figure 3-23: 4-pin Power Mini-DIN Connection

PIN NO. DESCRIPTION

1

12V

2

GND

3

12V

4

GND

5

GND

Table 3-23: Adapter Connector Pinouts
