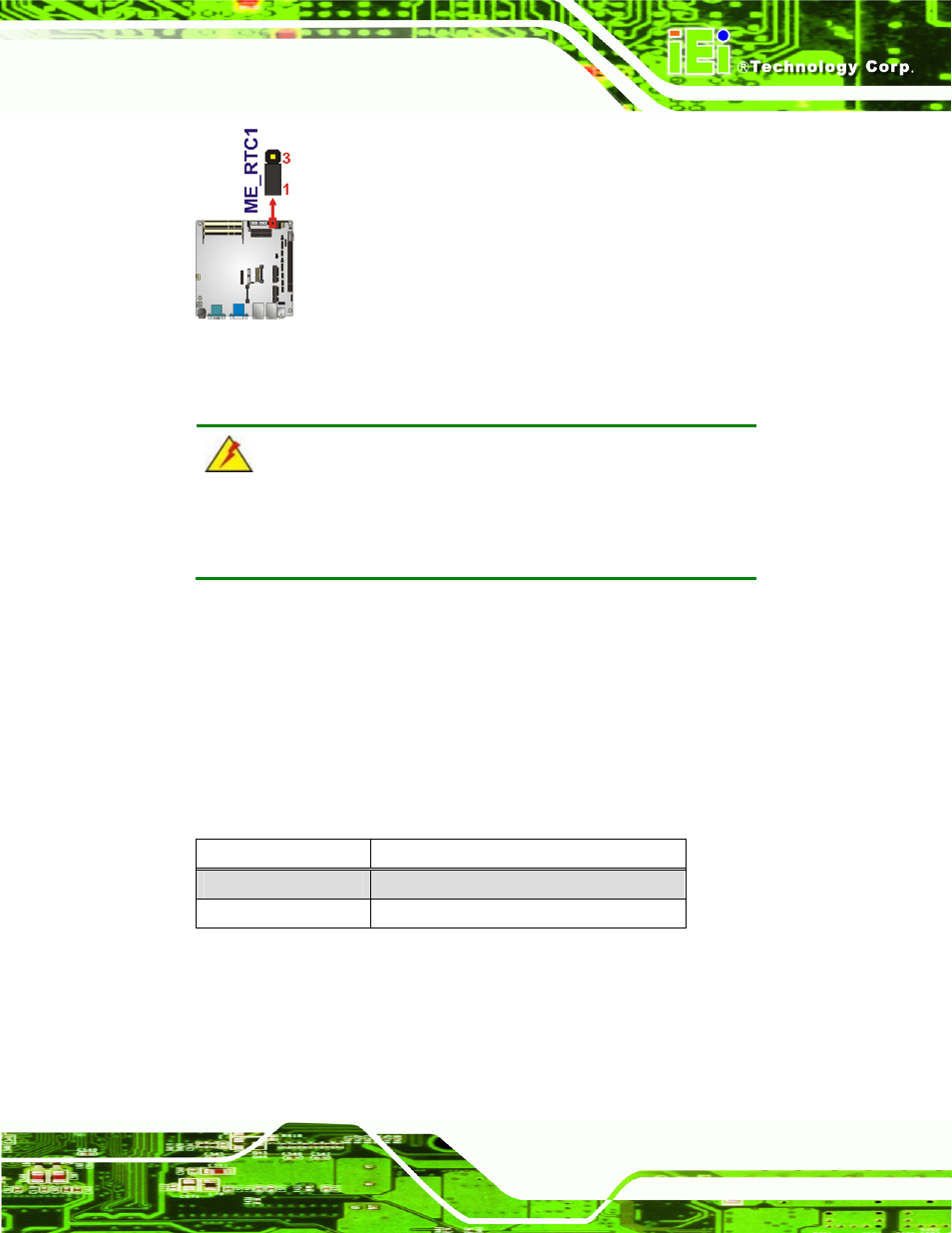

Figure 4-8: ME RTC Register Jumper Location

4.5.4 LVDS Voltage Selection

WARNING:

Incorrect voltages can destroy the LCD panel. Make sure to select a

voltage that matches the voltage required by the LCD panel.

Jumper Label:

J_VLVDS1

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-5

Jumper Location:

See Figure 4-9

The LCD voltage selection jumper sets the voltage of the power supplied to the LCD

panel.

Setting Description

Short 1-2

Set The Voltage Level Of Panel To VCC3

Short 3-4

Set The Voltage Level Of Panel To VCC

Table 4-5: LVDS Voltage Selection Jumper Settings
