KINO-HM551
Page 34
3.3.2 Audio Connector
CN Label: AUDIO_CV1
CN Type: 2 x Audio jack
CN Pinouts: See
6
Figure 3-24
The audio jacks connect to external audio devices.
 Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
 Microphone (Pink): Connects a microphone.

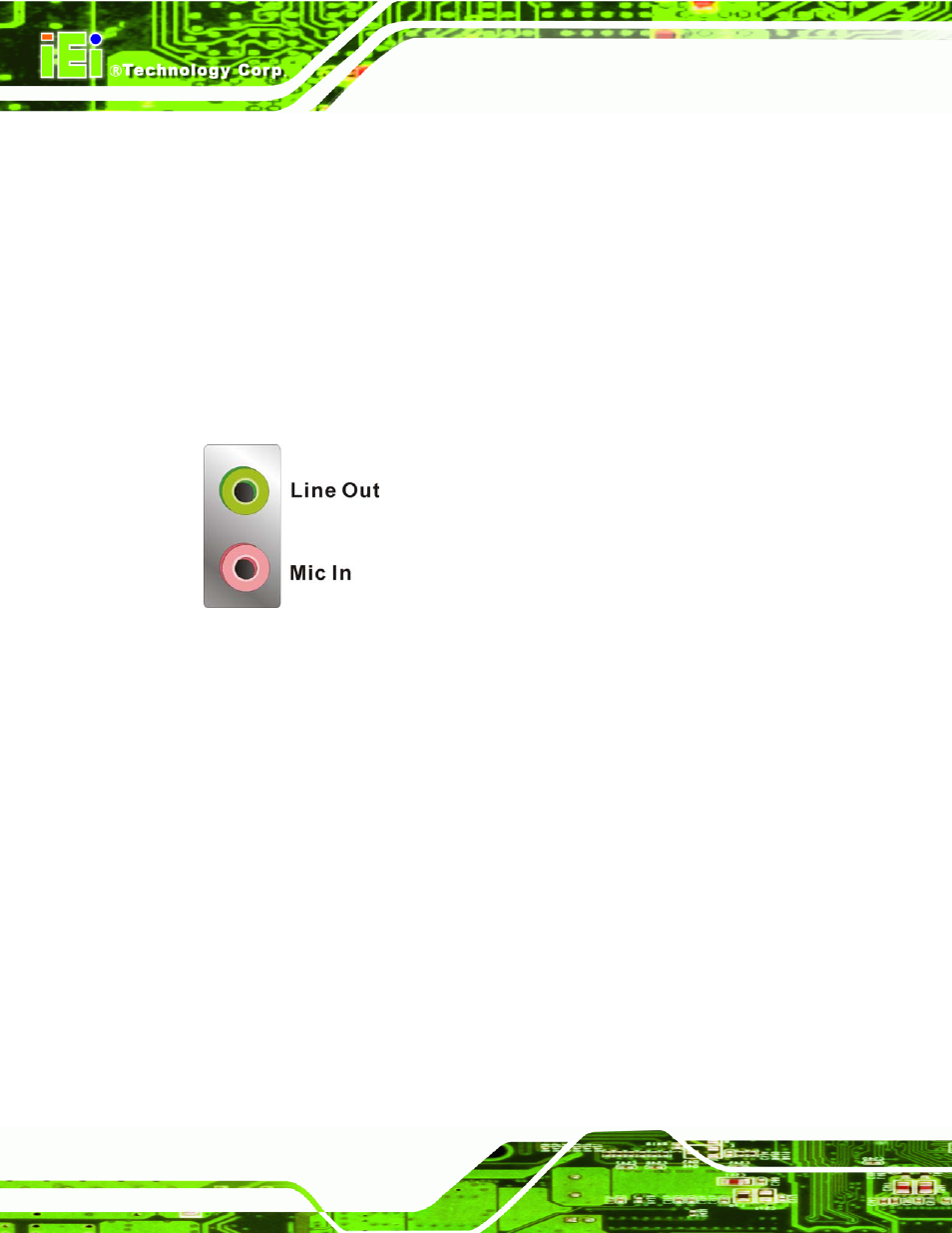

Figure 3-24: Audio Connector
3.3.3 Ethernet/USB Connector
CN Label: LAN1_USB1 and LAN2_USB2
CN Type: RJ-45 and USB port
CN Location: See
6
Figure 3-25
CN Pinouts: See
6
Table 3-24 and Table 3-25
The KINO-HM551 is equipped with two built-in RJ-45 Ethernet controllers. Each controller
can connect to the LAN through one RJ-45 LAN connector.
