KINO-HM551

Page 18

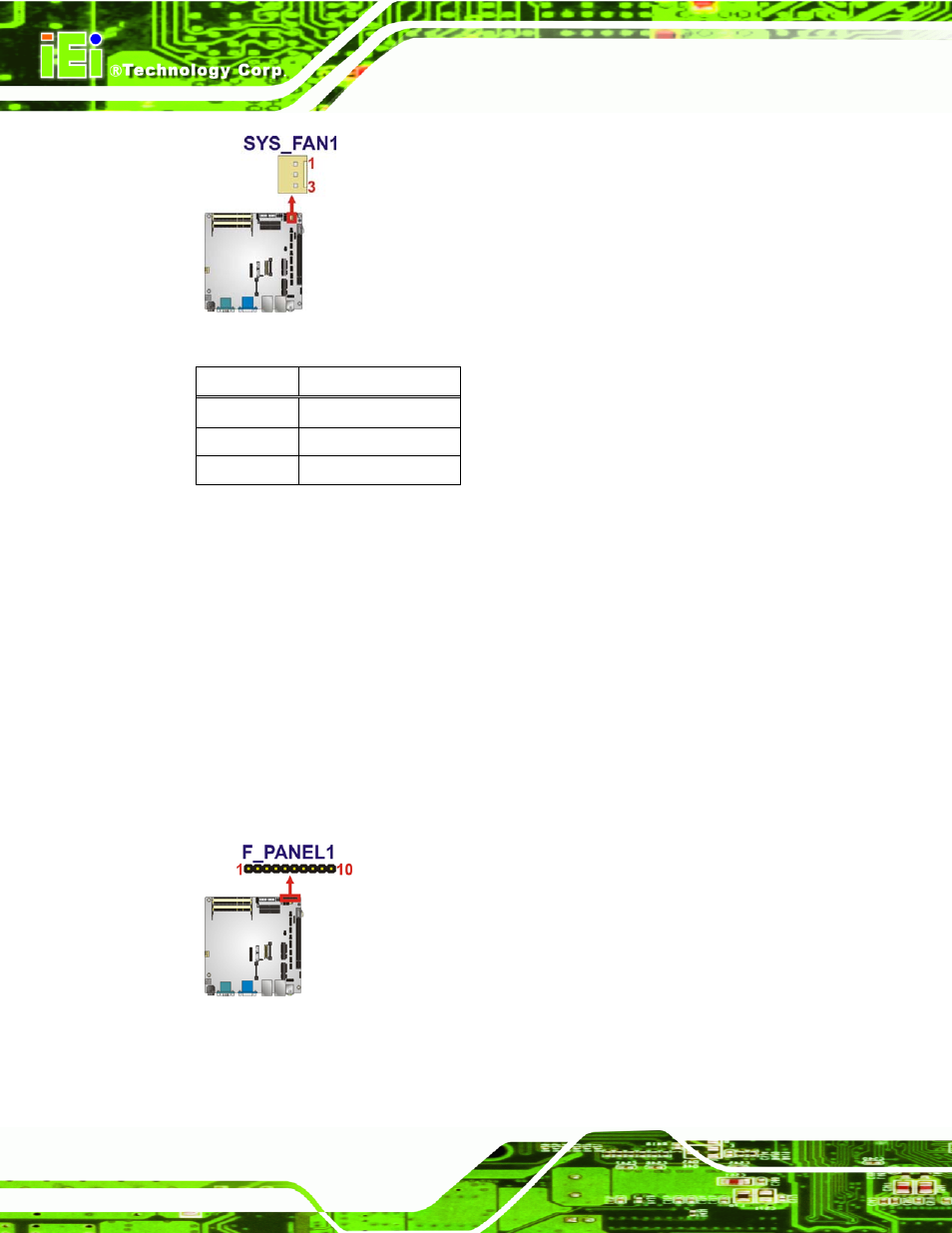

Figure 3-5: Fan Connector Locations

PIN NO.

DESCRIPTION

1 GND

2 +12V

3 Rotation

Signal

Table 3-6: Fan Connector Pinouts

3.2.5 Front Panel Indicators

CN Label:

F_PANEL1

CN Type:

10-pin header

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-7

The power button connector is connected to a power switch on the system chassis.

The reset button connector is connected to a reset switch on the system chassis.

Figure 3-6: Front Panel Indicator Location
