KINO-HM551
Page 24
CN Type: PCIe Mini card slot
CN Location: See Figure 3-12
CN Pinouts: See Table 3-13
The PCIe Mini card slot is for installing PCIe Mini expansion cards.

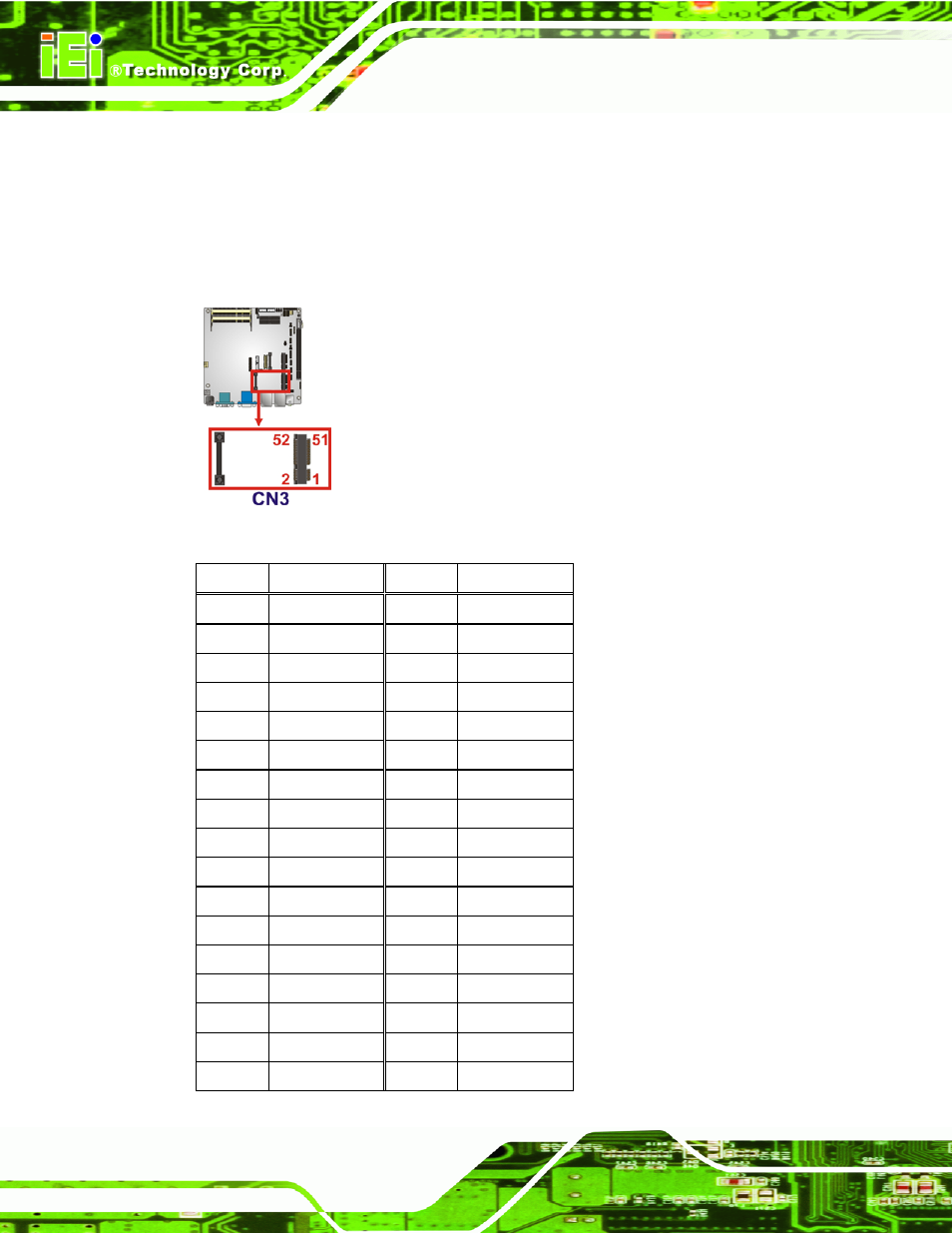

Figure 3-12: PCIe Mini Card Slot Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 PCIE_WAKE# 2 VCC3
3 N/C 4 GND
5 N/C 6 1.5 V
7 N/C 8 N/C
9 GND 10 N/C
11 CLK- 12 N/C
13 CLK+ 14 N/C
15 GND 16 N/C
17 PCIRST# 18 GND
19 N/C 20 VCC3
21 GND 22 PCIRST#
23 PERN2 24 3VDual
25 PERP2 26 GND
27 GND 28 1.5 V
29 GND 30 SMBCLK
31 PETN2 32 SMBDATA
33 PETP2 34 GND
